STEP 2
Single-phase Wiring
：
1. Strip the wires to 12 mm.
2. Loosen the lower-left cable gland, insert the AC input
cable through the inlet hole, and pre-fix the cable gland.
3. Loosen the screws at the terminal block.
4. Insert the cable connector into the terminal block.

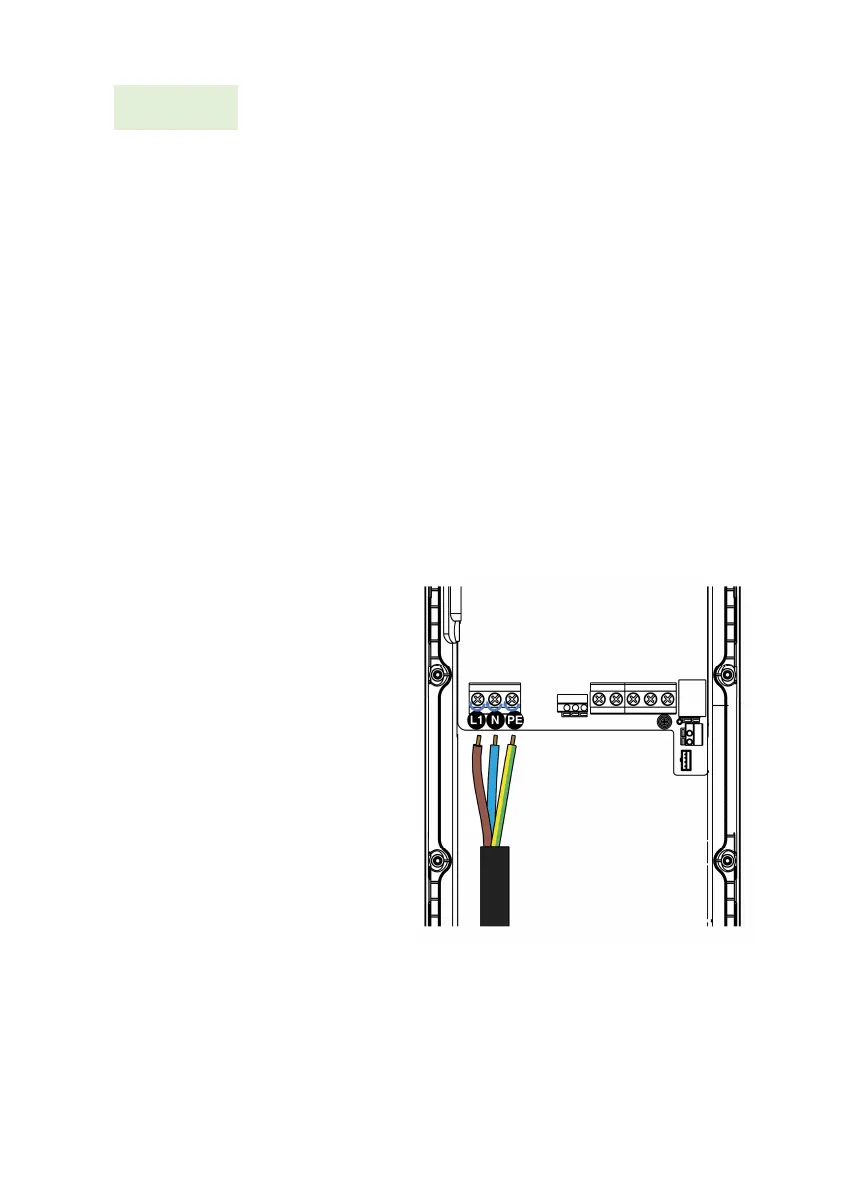

5. Connect the following wires as specified:
L1 (Brown)
Earth
(PE, green/yellow
striped)
Neutral (N, blue)
6. Tighten the screws to 2 N·m and fix the cable gland.
