Troubleshooting
27 | P a g e
2. Alternative Methods to Locate Jam
If the source of the jam cannot be located from the front, use the key to open the top cover.
Using a flashlight, look between the stacks to see if the source of the jam can be found.
Turn motors manually.
i. Use the SSP motor switch to turn the SSP motor 360 degrees.
ii. Use the LSP motor switch to turn the LSP 360 degrees.
iii. If at any time, the motors do not turn freely, reverse the direction, and try again.

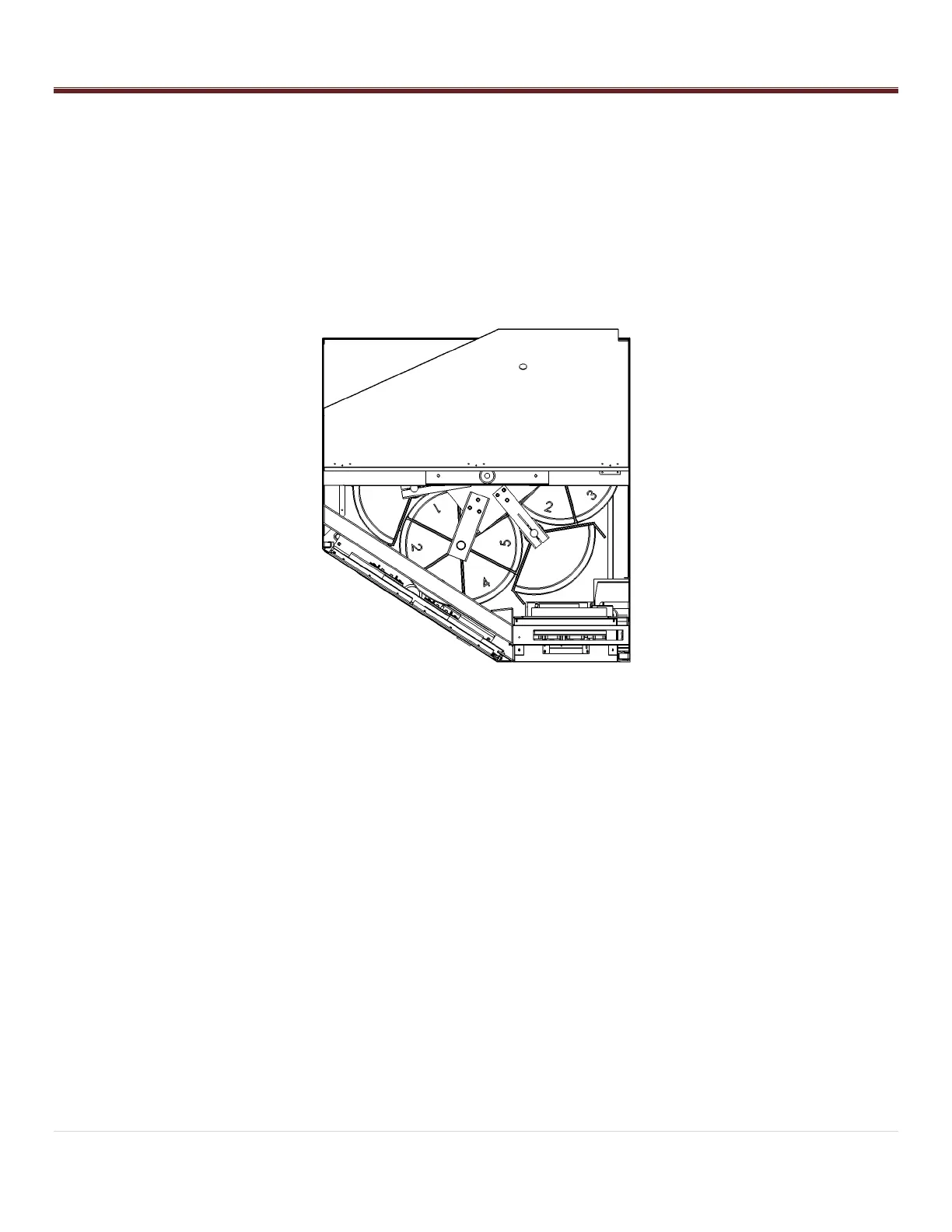

If the jam still cannot be located or the dropped item cannot be reached from the front or top, remove
the right access panel using the 5/32 pin-in-hex driver to remove the security screws.
3. Issue from RoboCrib
Once the jam has been cleared, rotate the LSP and SSP motors 360 degrees to verify the stacks are
not being impeded.
Replace the rear panel, close the left door, and replace the door retaining screws.
Close the right door and secure with the locks.
Start the software and allow the machine to go through the calibration process.
Perform a test issue from the RoboCrib.
NOTE: IT IS ACCEPTABLE TO RUN THE MACHINE WITH THE LEFT DOOR RETAINING SCREWS MISSING, BUT
WE RECOMMEND THAT WHENEVER THE DOOR IS CLOSED, YOU REPLACE THE SCREWS. THE SCREWS MUST
BE IN PLACE WHEN THE MACHINE IS BEING MOVED OR SHIPPED.
