14 © 2001 Directed Electronics, Inc. Vista, CA

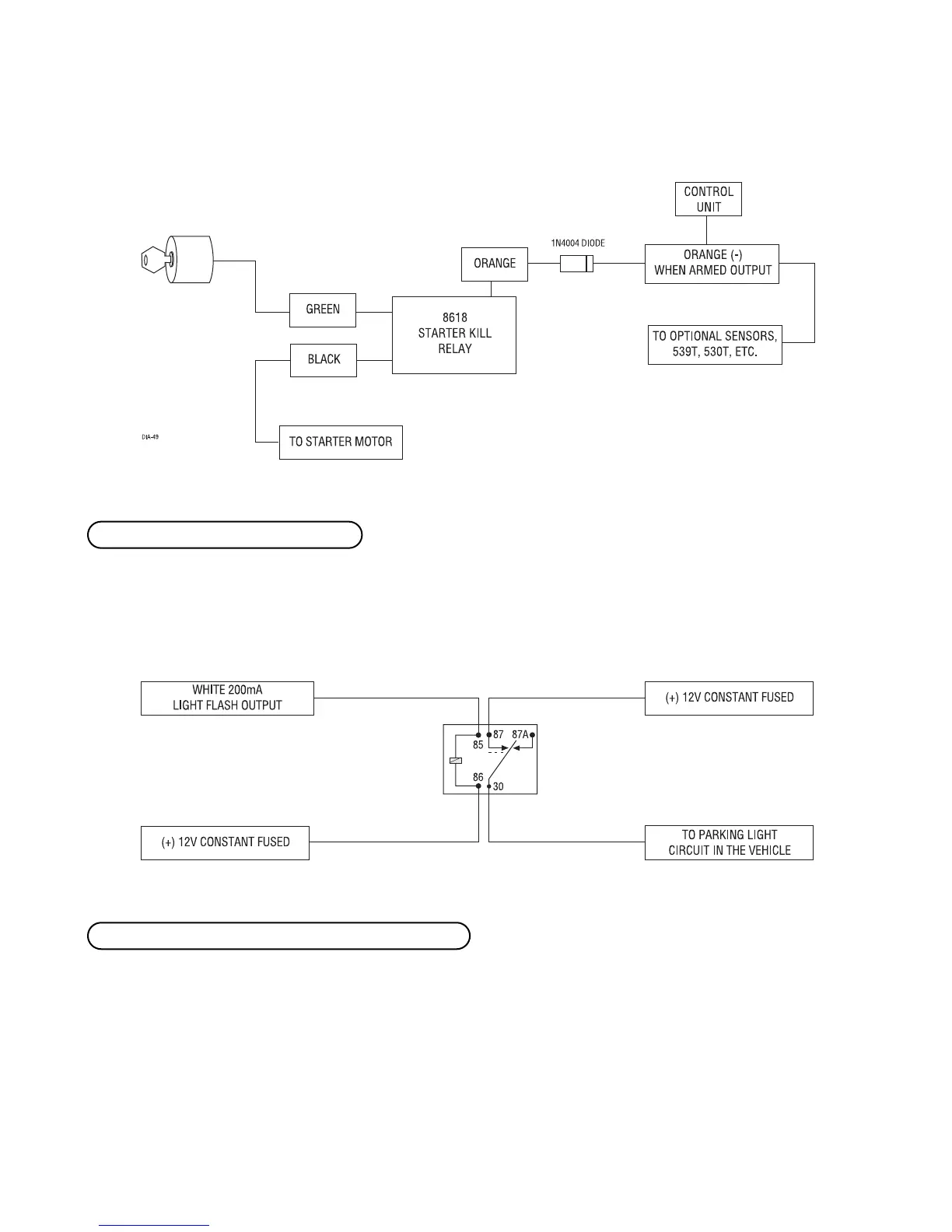

NOTE: If connecting the orange wire to control another module, such as a 529T or 530T window
module, a 1 amp diode (type 1N4004) will be required (see following diagram).
This wire provides a (-) 200 mA output to flash the parking lights. This is suitable for driving (-) light control
wires in Toyota, Lexus, BMW, some Mitsubishi, some Mazda, etc. If the vehicle has a positive parking light circuit
a relay must be used to flash the parking lights.
This wire provides a (-) 200 mA output whenever the transmitter button(s) controlling channel three is pressed.
This output can be programmed to provide the following types of outputs (see System Features Learn Routine
section of this guide):
■ A validity output will send a signal as long as the transmission is received.
■ A latched output will send a signal continuously when the channel three button(s) is pressed and will
continue until the channel three button(s) is pressed again.
H1/3 WHITE/BLUE 200 mA (-) channel three output
H1/2 WHITE (-) parking light output
