© 2001 Directed Electronics, Inc. Vista, CA 15
■ A latched/reset with ignition output functions similarly to the latched output, but will also reset (output
will stop) when the ignition is turned on then off.
■ A 30-second timed output will send a signal for 30 seconds when channel three is pressed. This output can
also be programmed to provide a second unlock pulse when the disarm button is pressed within 15 seconds
after disarming the system. This can be used to unlock the passenger doors when installing progressive door
locks.
■ A second unlock output will provide a second unlock pulse whenever the disarm button is pressed within 15
seconds after disarming the system. This setting can be used to unlock the passenger doors when installing
progressive door locks, for instance.
■ A delayed accessory output provides a (-) 200 mA latched output three seconds after the ignition is turned
on. It will remain active when the key is turned off, until a door is opened and closed. This setting could be
used in conjunction with a relay to energize certain circuits in the vehicle, such as the radio or power
windows, that would normally require the key to be turned on.
IMPORTANT! Never use this wire to drive anything except a relay or a low-current input! This
transistorized output can only supply (-) 200 mA, and connecting directly to a solenoid, motor, or
other high-current device will cause the module to fail.

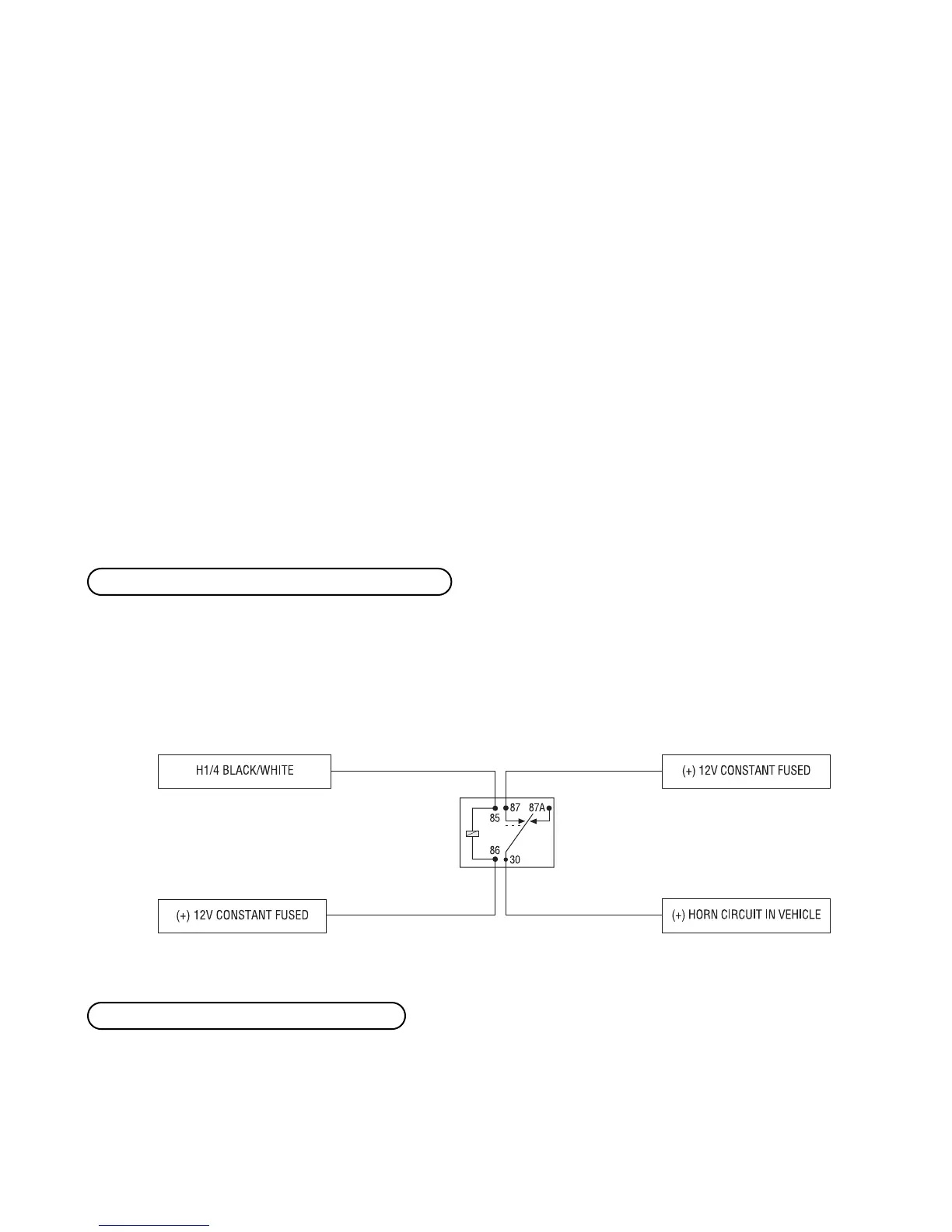

This wire supplies a (-) 200 mA output that can be used to honk the vehicle’s horn. It provides a pulsed output
when the security system is in the triggered sequence or in panic mode. In most vehicle’s with (-) horn circuits
this wire can control the vehicle’s horn without adding a relay. If the vehicle has a (+) horn circuit, an optional
relay must be used to interface with the horn circuit.
Most vehicles use negative door trigger circuits. Connect the green wire to a wire which shows ground when any
door is opened. In vehicles with factory delays on the domelight circuit, there is usually a wire that is unaffected
by the delay circuitry. This wire will report Zone 3.
H1/5 GREEN (-) door trigger input, zone 3
H1/4 BLACK/WHITE 200 mA (-) horn honk output
