16 © 2001 Directed Electronics, Inc. Vista, CA
This input will respond to a negative input with an instant trigger. It is ideal for hood and trunk pins and will
report on Zone 1. It can also be used with 506T Glass Breakage Sensor, as well as other DEI
®
single stage sensors.
The H1/6 BLUE instant trigger wire can be used to shunt sensors during operation, using the auxiliary channels.
When any of the auxiliary channels are transmitted, the H1/6 BLUE wire monitors for a ground. If a ground is
detected within 5 seconds of transmission, the sensors and the instant trigger input on the BLUE wire will be
shunted until 5 seconds after the ground is removed. This allows the customer to access the trunk, remote start
the vehicle or roll the windows down without first disarming the alarm. (See Bypassing Sensor Inputs section of
this guide.)

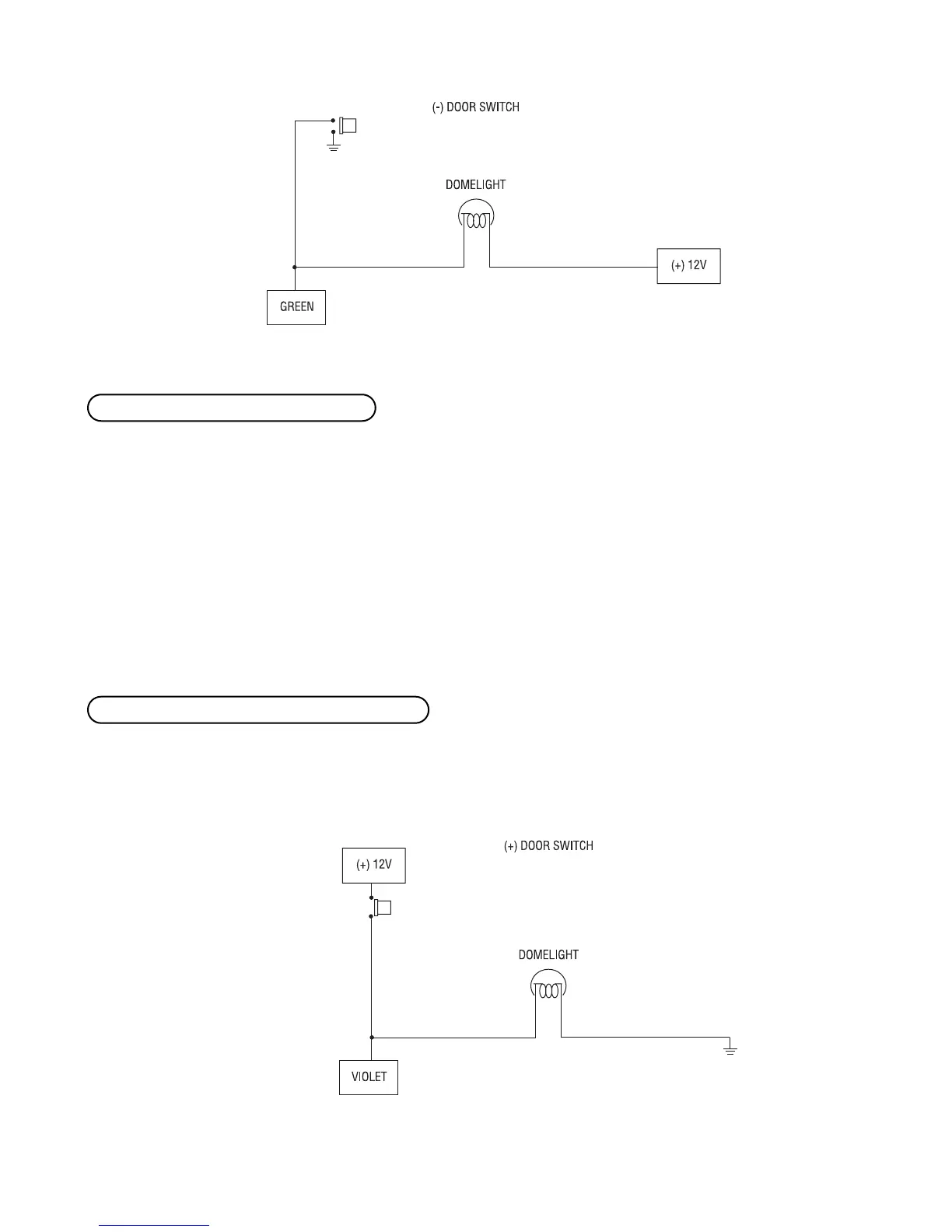

This wire is used in vehicles that have a positive (+) switched domelight circuit. Connect the violet wire to a
wire that shows (+)12V when any door is opened, and ground when the door is closed. This wire will report Zone 3.
H1/7 VIOLET (+) door trigger input, zone 3
H1/6 BLUE (-) instant trigger, zone 1
