GDO-6v3 EasyRoller
®
Owner Installation Instructions
WARNING: Do not connect the batteries until
after Step 20.2.

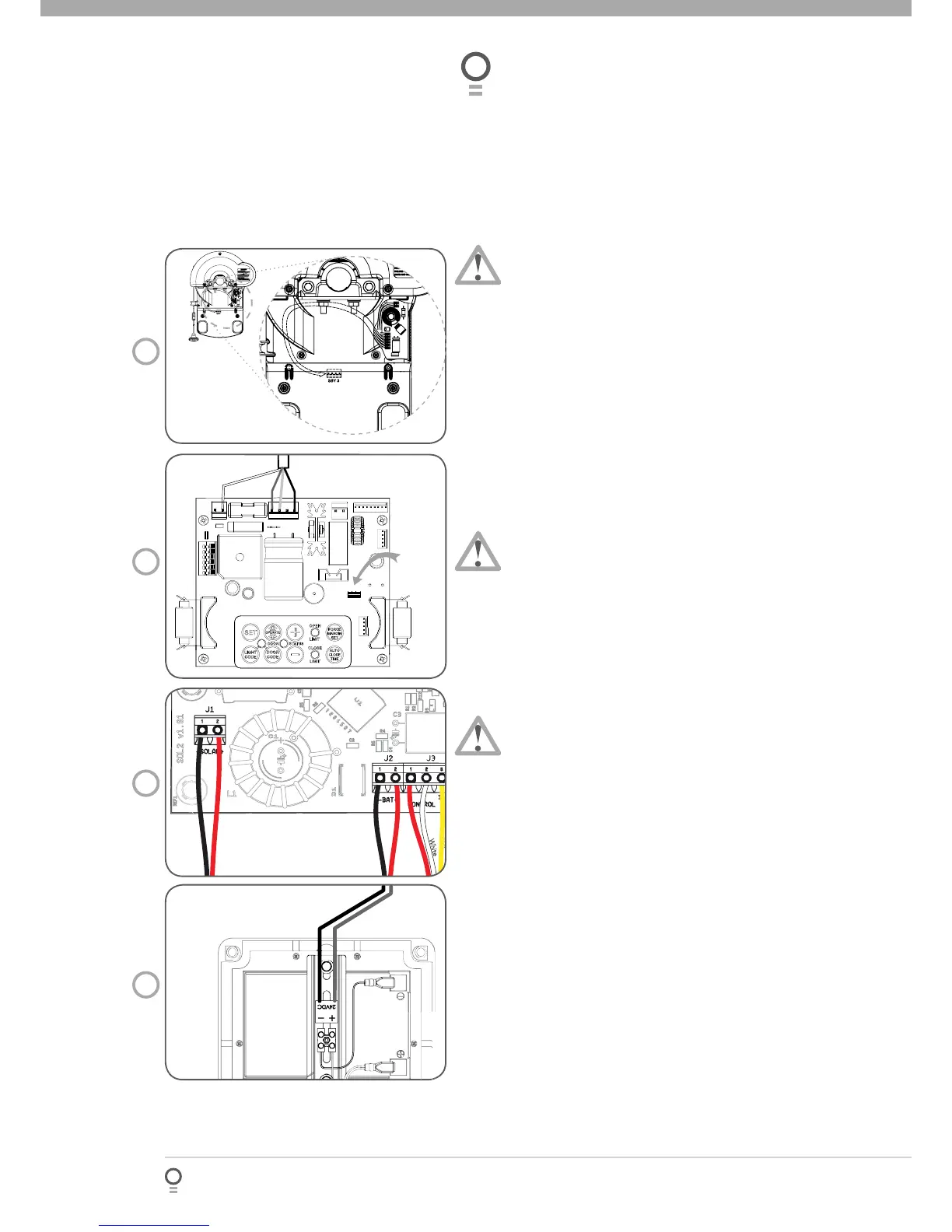

Step 20.1 - Mount the Charger Board
Unplug the drive unit from mains power.
Disengage motor using manual release cord.
Remove the main cover, timing cover and light
diffuser, then remove the transformer, EMC board
and mains power cable.
Fix the Charger Board under the timing cover using
four (4) M4x8 screws (Fig. 32).
Feed the four wire cable through the opening, then
connect the three wire harness (red/yellow/black) into
the control board’s “SBY-3” connector (Fig. 33).
Plug the one wire harness (white) into the control
board’s “24VAC IN” connector on (Fig. 33).
Plug the solar shunt (supplied) onto the control
board’s “JP1” connector (Fig. 33).
IMPORTANT WARNING: Do not connect battery
or solar panel polarity incorrectly - this will result
in serious damage to components.
Step 20.2 - Connect the Solar Panel
Mount the solar panel as described in the
SmartSolar™ Instruction Manual.
Feed the Solar Panel’s cable through black grommet
on the chassis.
Connect the red wire to the Charger Board’s
“SOLAR+” connector, and the black wire to the
“–SOLAR” connector (Fig. 34).
WARNING: During Step 20.3 the opener will
become active.
Step 20.3 - Mount & Connect the Battery
Mount the Battery Box close to the opener.
Feed the 2-core18AWG gauge cable (supplied)
through the Battery Box’s grommet.
Connect the red wire to the Battery Box’s “+”
terminal, and the black wire to the “–” terminal
(Fig. 35).
Feed the other end of the battery cable through the
drive unit’s black grommet.
Connect the red wire to the Charger Board’s
“BAT+” connector, and the black wire to the “–
BAT” connector (Fig. 34).
Refi t the timing cover, main cover and light diffuser.
Step 20.4 - Re-setup and Test the Opener
Setup travel limits and code transmitters as per the
GDO-6 instruction manual.
Press either the OPERATE button, or use a
transmitter to operate the opener.
