Advanced Setting(Optional for SIV)

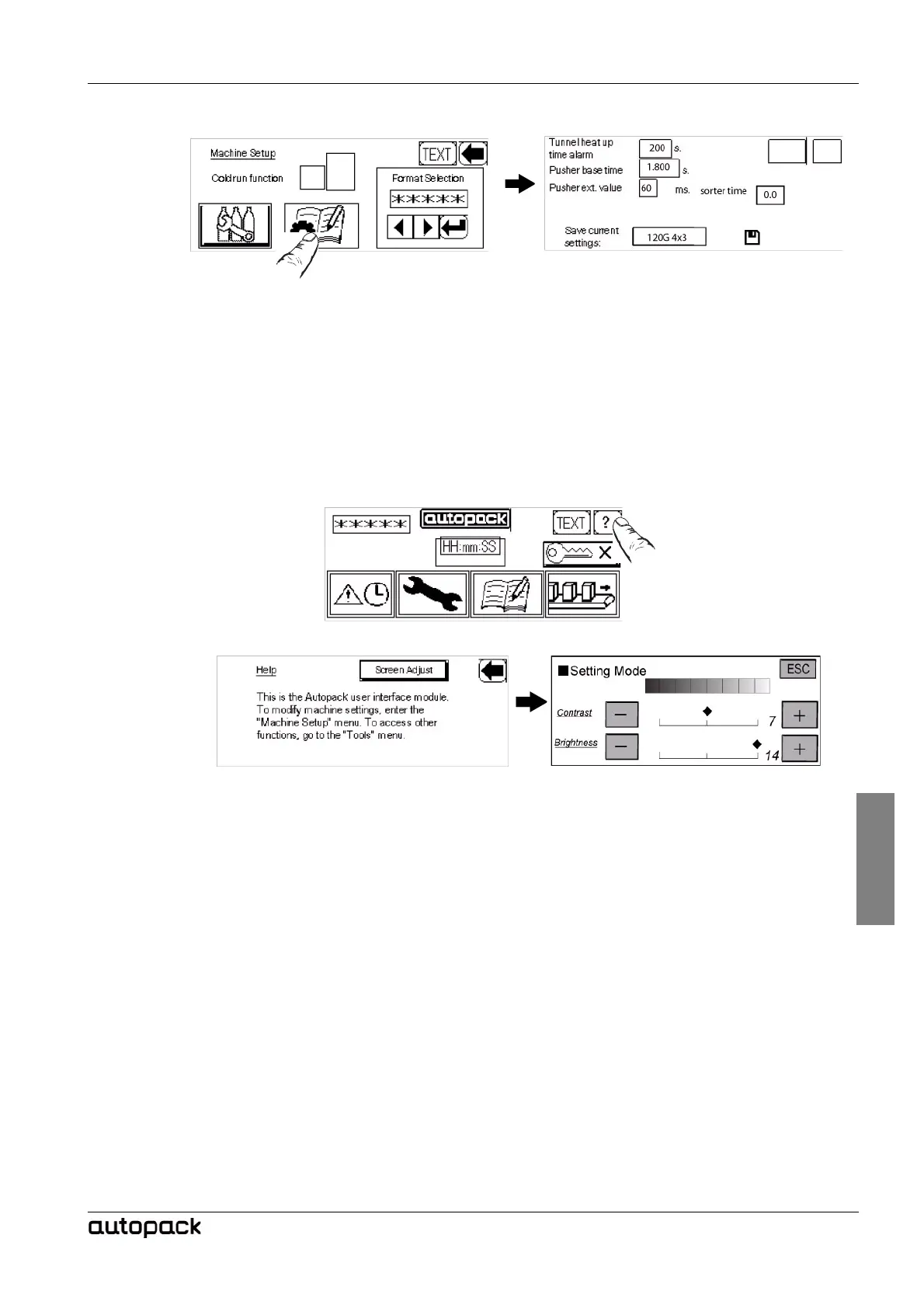

Pusher base time is the time of pusher movement from home position - sensor
B422 is OFF to full stroke position - sensor B420 is OFF and is used always for 1st
push after stepping machine to step2. If pusher alarm appear during 1st push have
to adjust - increase this value. This time is updated on every push during
production.
This is value which increasing pusher monitor value to control pusher movement
forward. If real pusher forward time is longer then pusher monitor value pusher
alarm is ON.
7.3 Help
For LCD set-up press Help button.
Important! HMI Setup is pre-set by machine manufacturer and should not be
adjusted!
Adjust the Contrast and Brightness of the screen by Screen adjustment.
Press HMI setup button to bring up System Menu.
These instructions are only used as reference. No adjustments should be
made.
To return to Main menu, press ESC button.
To Next Page
