Autopack 45WLO20FP - Front and Back View; Photocells and Proximity Switches; Motors

5 Electrical Components
5 - 17
5

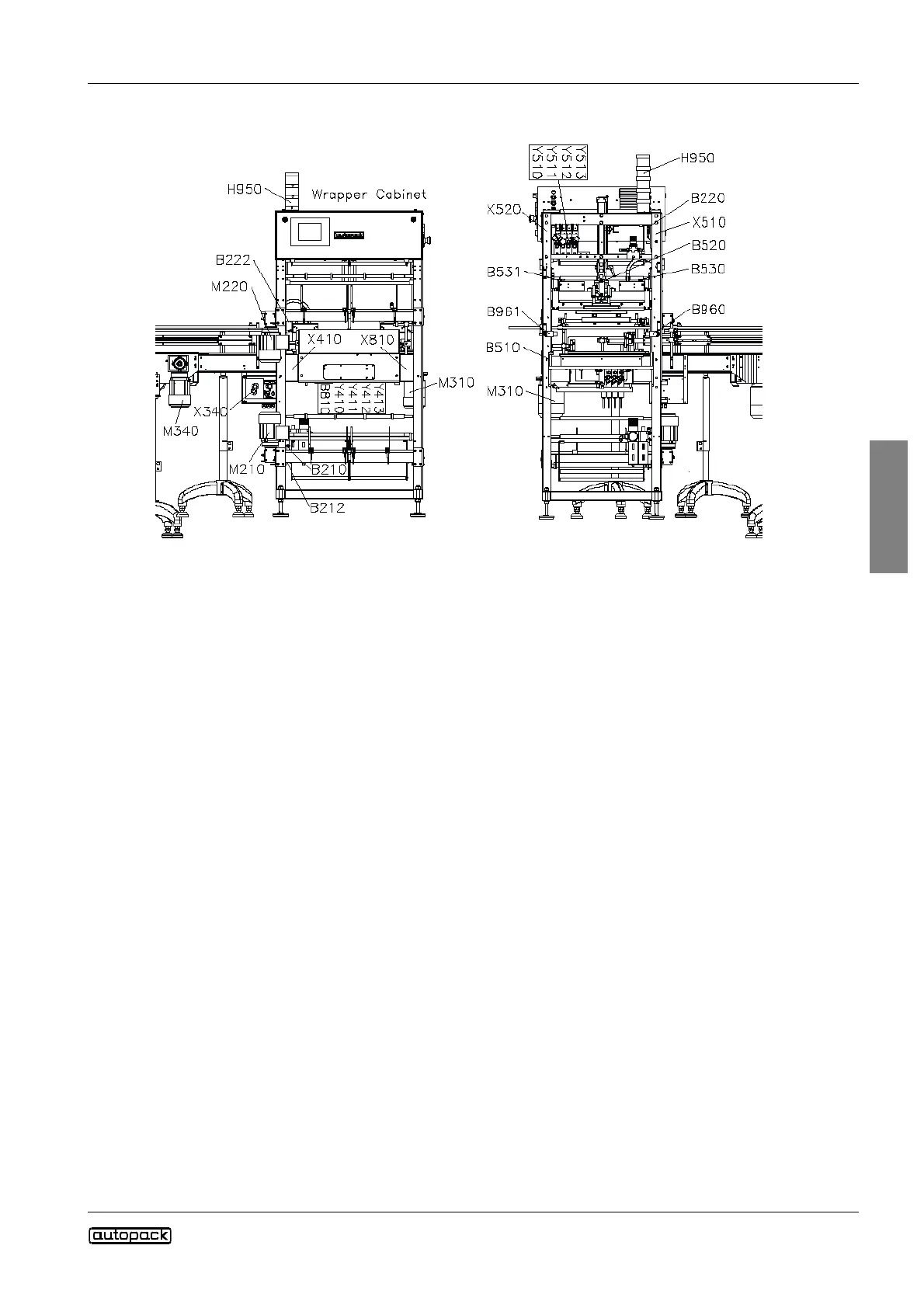

Front and Back view
Photocells and Proximity switches
• W2-B220 Top Left Film Dancer
• W2-B221 Top Right Film Dancer (62/82WX)
• W2-B210 Bottom Left Film Dancer
• W2-B211 Bottom Right Film Dancer (62/82WX)
• W2-B222 Top Film Low
• W2-B212 Bottom Film Low
• W2-B230 Printed film 1-LHS (Optional)
• W2-B231 Printed film 2-RHS (Optional)
• W4-B310 Infeed queue (Optional)
• W4-B410 Product Sensing
• W4-B420 Pusher Forward Position
• W4-B421 Short Stroke Position
• W4-B422 Pusher Return Position (DSBG)
• W4-B424 Table Full Detect, Gap Detect
• W5-B520 Welding Bar Top Position
• W5-B510 Welding Bar Bottom Position
• W5-B550 Thermocouple Welding Bar
• W5-B530 Safety Bar, LHS
• W5-B531 Safety Bar, RHS
• W8-810P ressure Sensor
• W1-B950 Left Front Guard Door Switch
• W1-B951 Right Front Guard Door Switch
• W1-B960 Left Rear Guard Door Switch
• W1-B961 Right Rear Guard Door Switch
Motors
• W2-M220 Film Drive, Top Left Motor
