4-24
4 Maintenace
4
STEP 2 – WEAVE STRAND TO ONE SIDE

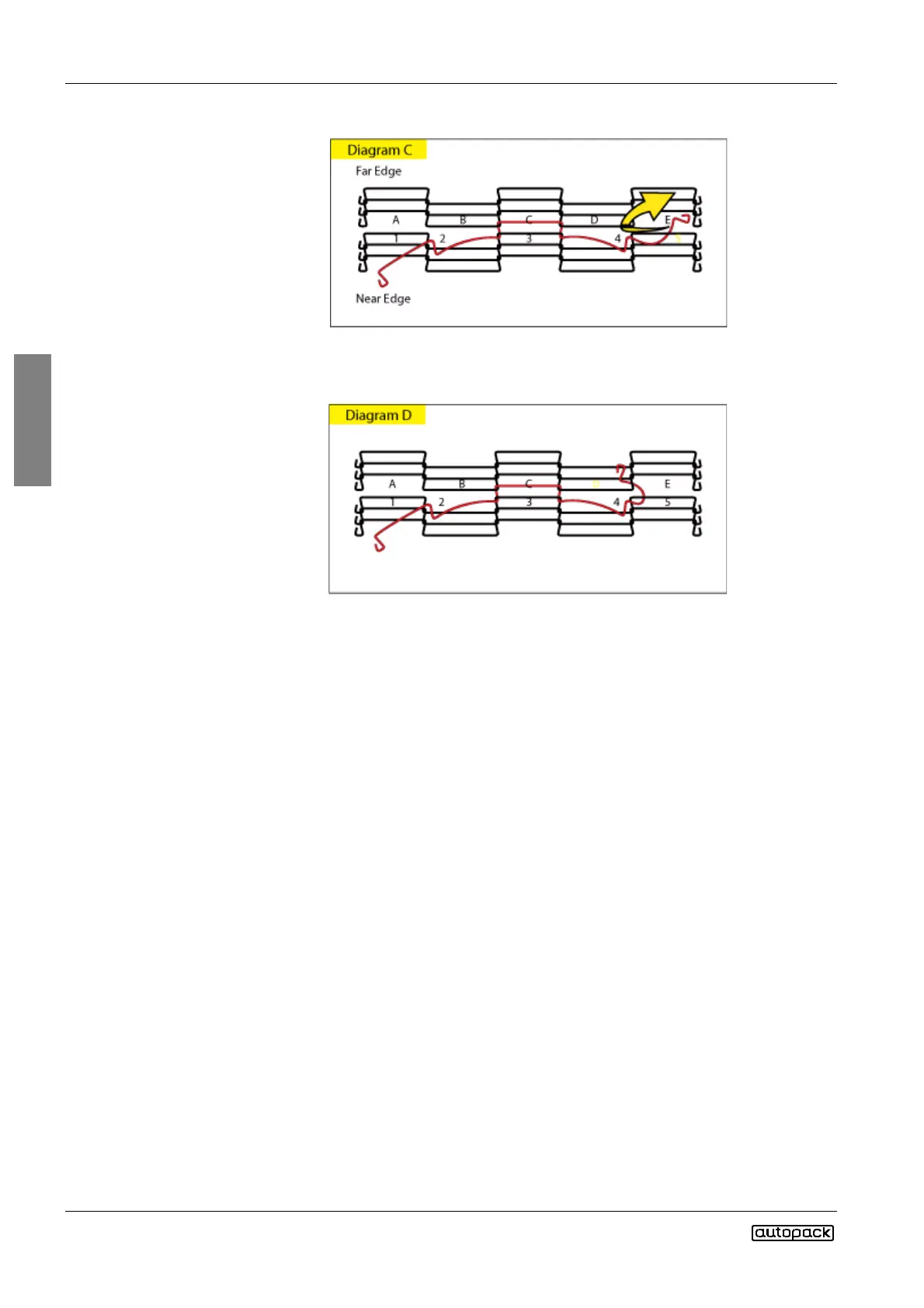

• BEND one end of the wire up and INSERT it around the Z-bend in the next
space on the edge of the wire closest to you (Space 5 on Diagram C). Always
try to avoid bending the wire at the Z-bend!
• BEND the wire toward the center and INSERT around the Z-bend next to the
center space (Space D on Diagram D)
• Pull the strand wire through the mesh and STRAIGHTEN it with your pliers
• Repeat these three moves until you reach the side edge of the belt
• Using your pliers, connect the strand’s edge loop to the belt’s edge loop (on the
far edge)
• Connect the edge loop on the near edge of the belt to the strand’s edge loop
• STRAIGHTEN the strand with your pliers
To Next Page
