Autopack 45WLO20FP - Electrical Cabinet(Tunnel)

5 - 14
5 Electrical Components
5

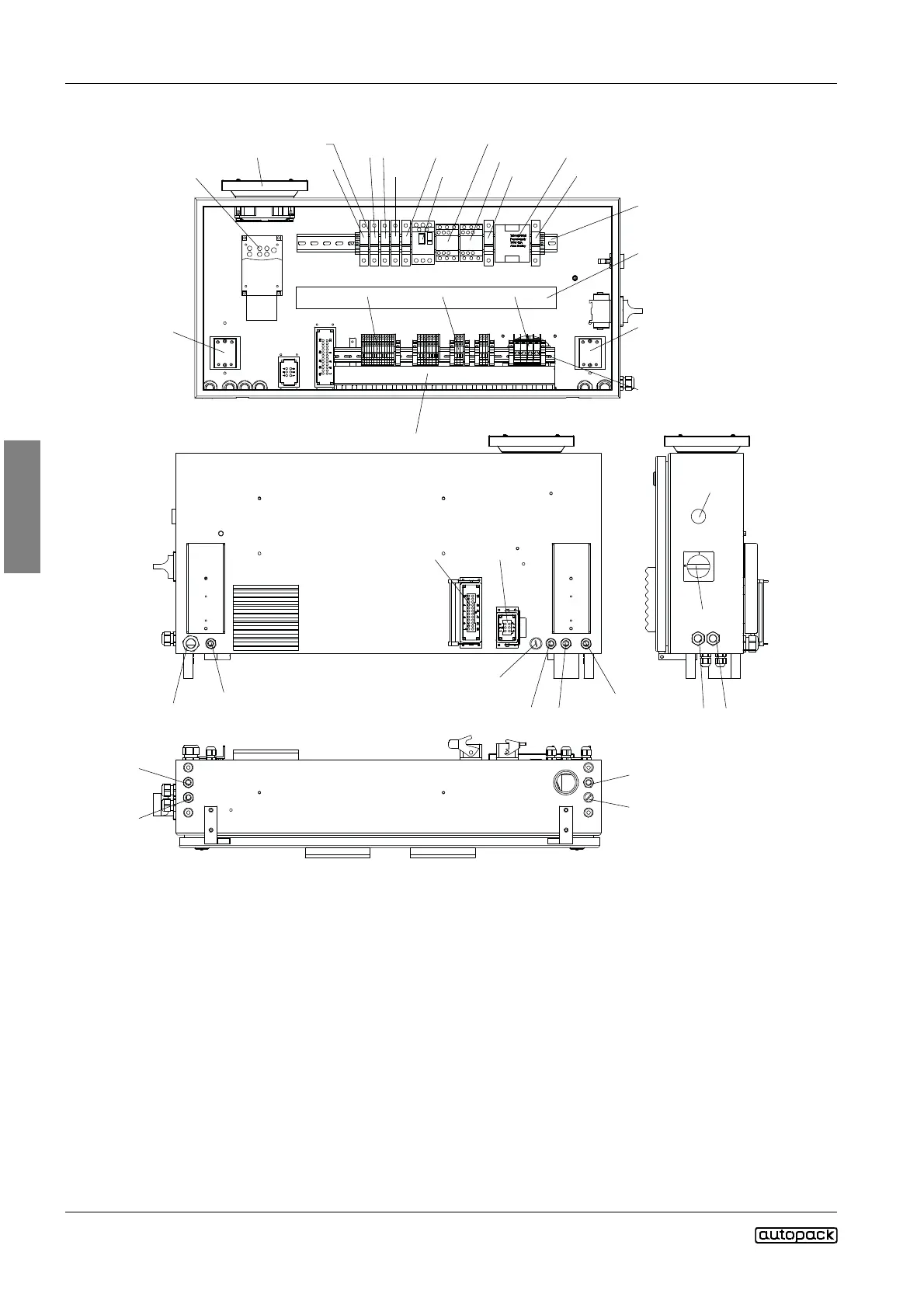

5.3-2 Electrical Cabinet(Tunnel)
• T9-F510 Element Shrink Unit, Phase A380VAC main supply
• 208VAC main supply
• T9-F511 Element Shrink Unit, Phase B (380VAC main supply,
208VAC main supply)
• T9-F512 Element Shrink Unit, Phase C (380VAC main supply,
208VAC main supply)
• T9-F520 Element Shrink Unit, Phase A (380VAC main supply, THX,
208VAC main supply, THX)
• T9-F521 Element Shrink Unit, Phase B (380VAC main supply, THX,
208VAC main supply, THX)
• T9-F522 Element Shrink Unit, Phase C (380VAC main supply, THX,
208VAC main supply, THX)
• T9-F530 Cooling Fan Shrink Unit
• T9-F910 Control Voltage, Input supply 230V AC
• T9-F911 Control Voltage, Output supply +24VDC
• T9-F610 Speed Control for Tunnel Conveyor
F530
Q510
U610
F610
F510
K510
K511
K512
X912 X910
~ 520mm. LONG
X911
RAIL TS35
~ 520mm. LONG
RAIL TS35
~ 440mm. LONG
DUCT 40X40
~ 440mm. LONG
Space 3mm. between component
G910
F511
F512
F911
K910
F910
DUCT 40X40
M910
XXX
X901
G911.OUT
Optional
G911.IN
Optional
Q910
H910
X530X710
Power cable
lead in
M610
M510
M511
(60/80TMX)
M520
(45TMX)
Spare
X930 X920
