3 Installation
3

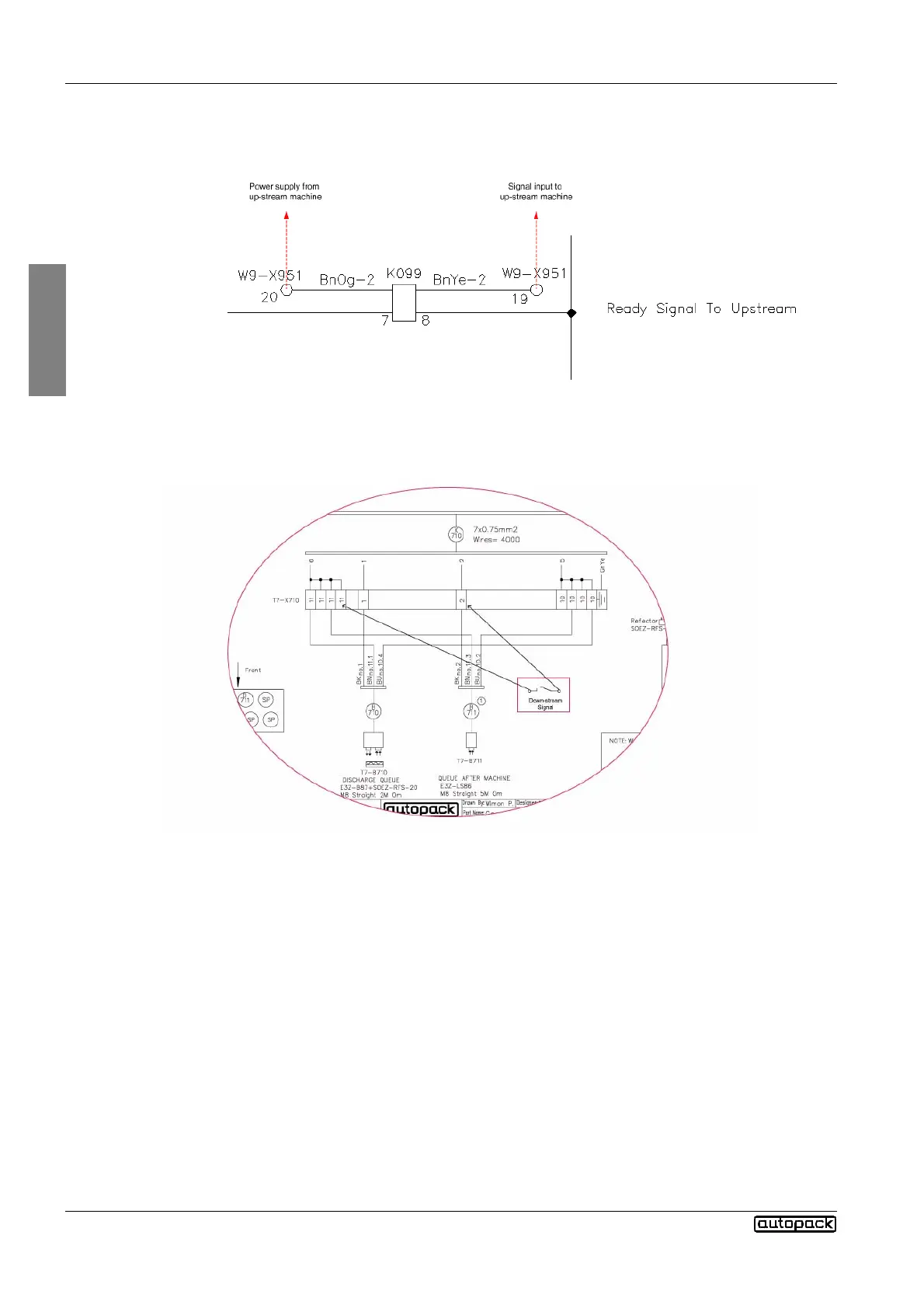

– Up-Stream is the machine or conveyor which transport products to CMOS
machine. Connect the cables according to diagram below.
– Down-stream is the machine or conveyor which receive product(packs) from
machine. If down-stream is full / not ready to receive, machine will stop
production.
Connect the cables according to diagram below.
3.2-4 Quality Control Check
Film Supply Brake and Shaft(Only optional)
Check that the film shafts have small 0.5 - 1 mm side play once in the cradle.
Check that the pulleys on the shafts are equidistant on both shafts. This distance
should be approx. 52 mm to centre of the pulley grove.
Brake Shoe Arm(Only optional)
Should be free to slide sideways so it can freely align itself with the pulley during
operation. The brake spread screw on new machines should be at initial position.
When shaft inserted into cradle the brake shoe should move back at least 2mm thus
ensuring that there is enough braking force and material to wear of the shoe before
adjustment is necessary.
Film Rollers
Check that all rollers spin freely also check by moving slowly if there are any tight
spots. Make sure that all roller support blocks if they are in coaxial with each roller.
