Autopack 45WLO20FP - 5.3 Electrical Location

5 - 12
5 Electrical Components
5
5.3 Electrical Location

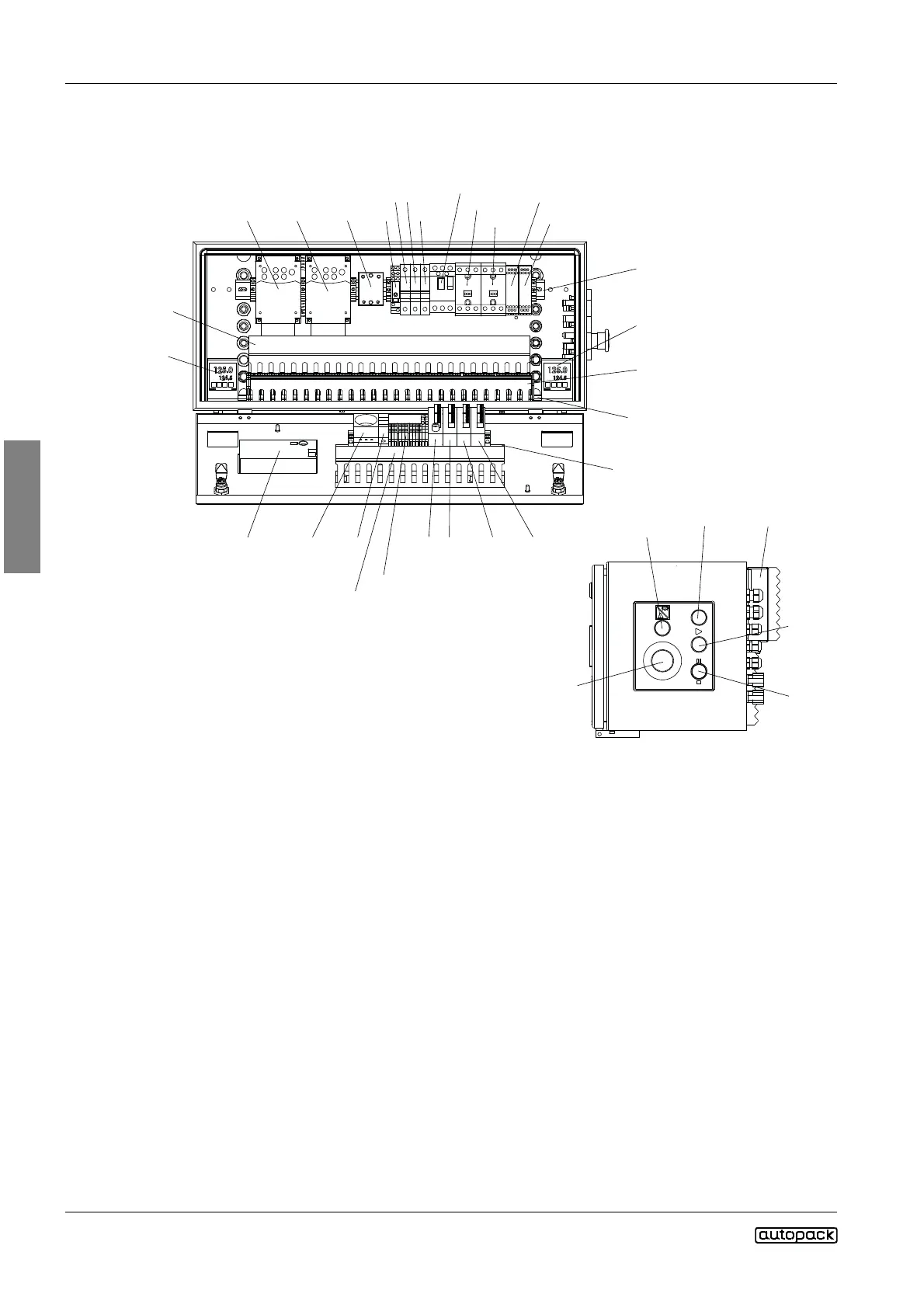

5.3-1 Electrical Cabinet(Wrapper)
• W9-A510 Temperature Controller, Shrink Tunnel
• W9-A550 Temperature Controller, Welding Bar
• W9-A950 Safety Relay, Emergency Stop
• W9-A951 Safety Relay, Doors
• W9-A960 CPU built-in 8 Inputs/6 Outputs
• W9-A961 Expansion 8 Inputs/8 Outputs
• W9-A962 Expansion 8 Inputs/8 Outputs
• W9-A963 Expansion 8 Inputs/8 Outputs
• W9-F310 Infeed Conveyor
• W9-F320 Table Conveyor (WLR WLO)
• W9-F550 Element Welding Bar
• W9-F960 PLC (S2/AM)
• W9-F970 Single phase socket
• W9-K099 Ready Signal To Upstream
• W9-K210 Film Drive, Bottom Left (45/60/80WX, 62/82WX, CE)
• W9-K220 Film Drive, Top Left (45/60/80WX, 62/82WX, CE)
• W9-K211 Film Drive, Bottom Right (62/82WX, CE)
• W9-K221 Film Drive, Top Right (62/82WX, CE)
• W9-K550 Element Welding Bar
S961
H962
S950
H963S962
H960
S960
M950
Rail TS35
300mm.
F320
U310 U320
F310
K550
Duct 40x60
F550
K220
Q210
A961
K210
580mm.
A951
A550
A510
X970 F970
X960-X962
A960
A950
T950
A962
Duct 40x60
500mm.
A963
Rail TS35
550mm.
Rail TS35
300mm.
500mm.
Duct 40x60
K099
