Autopack 45WLO20FP - Numbering System for Components

5 - 6
5 Electrical Components
5

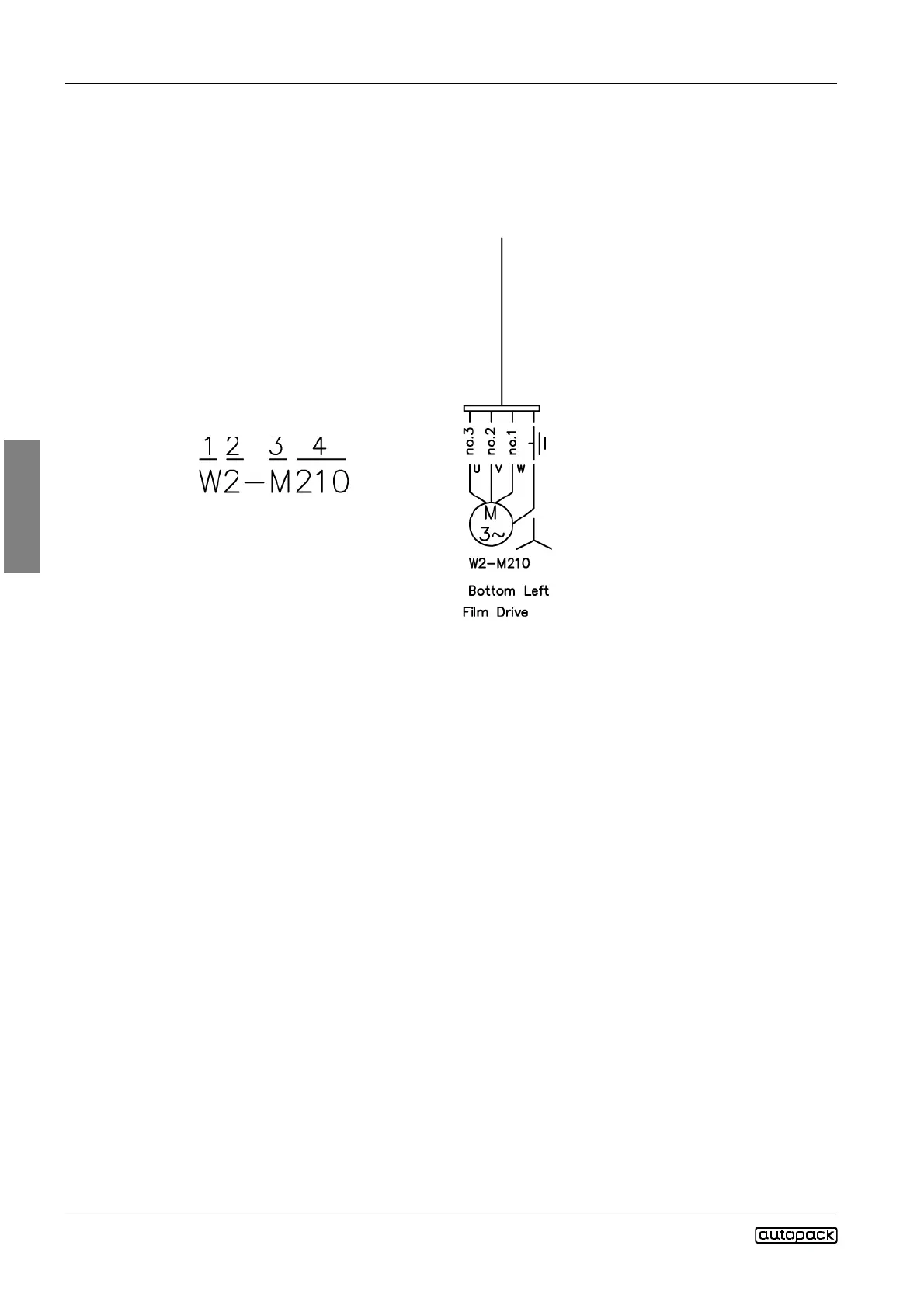

5.1-1 Numbering System for Components
Components are identidfied by the a location designation (1), location area(2),
function designation (3) , and a running number (4).
Location Designation (1)
The location designation shows the location of the component.
• T indicates that the component is fitted on the tunnel machine.
• W indicates that the component is fitted on the Wrapper machine.
• C indicates that the component is fitted on the cardboard machine.
Location Area (2)
• 0 - Control panel
• 1 - Frame system
• 2 - Supply of film / Tray / Card
• 3 - Infeed unit
• 4 - Grouping unit
• 5 - Process unit
• 6 - Transport unit
• 7 - Discharg unit
• 8 - Pneumatic unit
• 9 - Electrical unit
1 Location designation
2 Location area
3 Function designation
4 Running number
