Autotrol Logix 760 - Step 4: Set Regen Time; Step 5: Set Days to Regenerate (740 Time-Clock Control Only); Step 5 a: Set Calendar Override (760 Demand Control Only); Step 6: Amount of Regenerant used per Regeneration

34 DISPLAY ICONS 700 CONTROLLER
Rev A
After steps 1-4, the controller will operate most systems. Proceed to
step 4 if further adjustments to your system’s programming is needed.

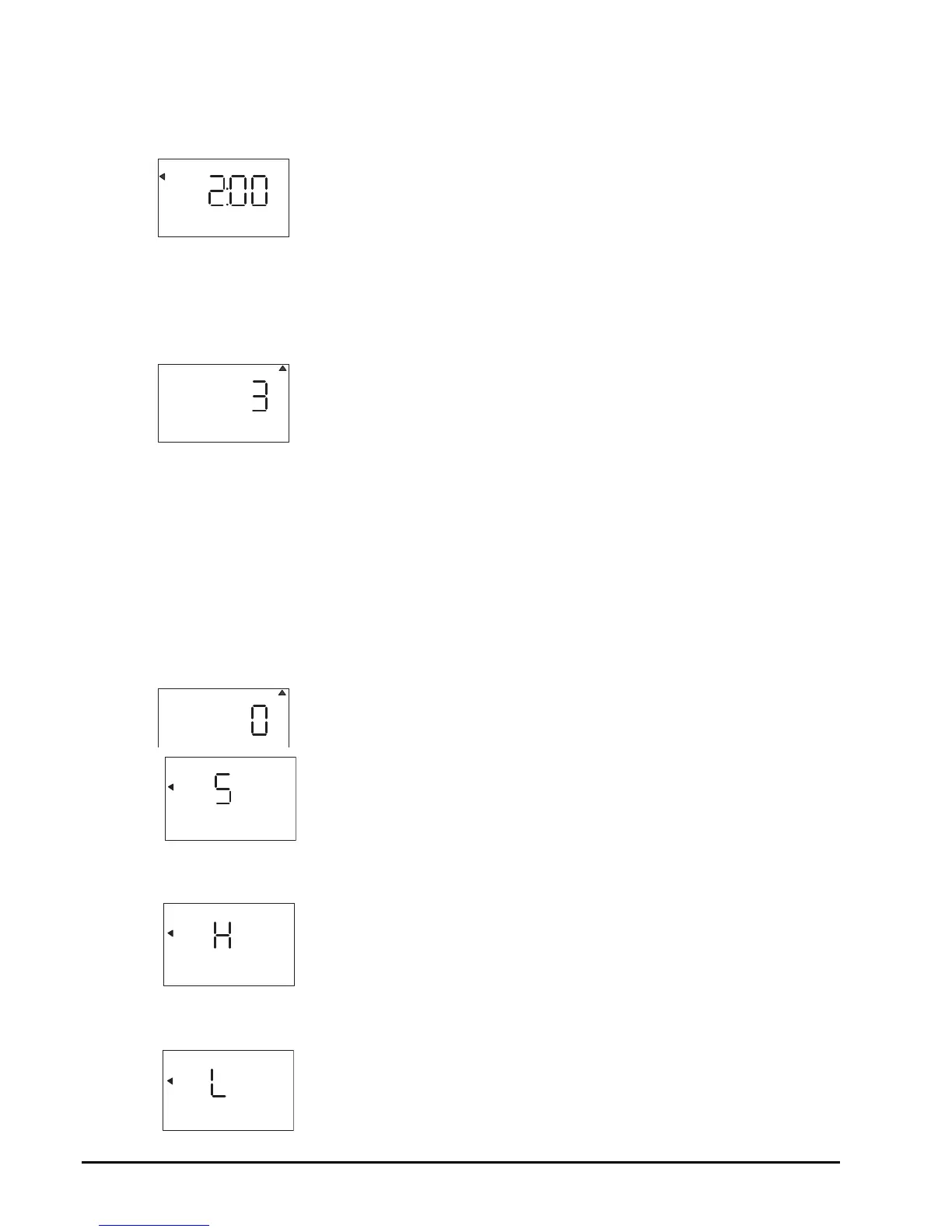

Step 4: Set Regen Time
• 2:00 (AM) is the default time of regeneration. To accept this time, press
the DOWN button to move to step 5.
• To change the regen time, press SET – causing “2:00” to flash.
• Use the UP and DOWN buttons to advance to the desired regen time.
• Press SET to accept the time and advance to the next parameter.
Step 5: Set Days to Regenerate (740 Time-Clock Control Only)
• If using 760 control – proceed to step 5a.
• Set number of days between time-clock regeneration (regen
frequency).
• Default time is 3 days.
• Days can be adjusted from ½ (.5) to 99 days.
• To change, press SET to make the “3” flash.
• Use the UP and DOWN buttons to change the number of days desired.
• Press SET to accept the regen frequency, and advance to the next
cycle.
• To use the 7-day timer option –see Dealer Installation Manual.
Step 5a: Set Calendar Override (760 Demand Control Only)
• If using 740 control – proceed to step 6.
• Set number of days for calendar override on demand control.
• “0” days is the default for calendar override.
• Days can be adjusted from ½ (.5) to 99 days.
• To change, press SET to make the “0” flash.
• Use the UP and DOWN buttons to change to the number of days
desired. Press SET to accept the regen frequency, and advance to the
next cycle.
Step 6: Amount of Regenerant used per Regeneration
• Set desired regenerant amount.
• Default setting is "S" standard salting.
• 3 salt settings are available on 740 and 760 controls:
• S – Standard Salt – 9 lbs/cubic foot of resin (120 grams/liter of resin)
• H – High Salt – 15 lbs/cubic foot of resin (200 grams/liter of resin)
• L – Low Salt – 3 lbs/cubic foot of resin (40 grams/liter of resin)
• Low Salt is the "Highly Efficient Mode".
Time & Day
Regen Time & Day
Salt
SU MO TU WE TH FR SA DAYS
Capacity
Hardness
Time & Day
Regen Time & Day
Salt
SU MO TU WE TH FR SA DAYS
Capacity
Hardness
Time & Day
Regen Time & Day
Salt
SU MO TU WE TH FR SA DAYS
Capacity
Hardness
Time & Day
Regen Time & Day
Salt Amount
SU MO TU WE TH FR SA DAYS
Capacity
Hardness
Time & Day
Regen Time & Day
Salt Amount
SU MO TU WE TH FR SA DAYS
Capacity
Hardness
Time & Day
Regen Time & Day
Salt Amount
SU MO TU WE TH FR SA DAYS
Capacity
Hardness
Standard Setting
High Capacity Setting
Low Setting (High Efficiency)
