Autotrol Logix 764 User Manual

32
Wiring Diagrams

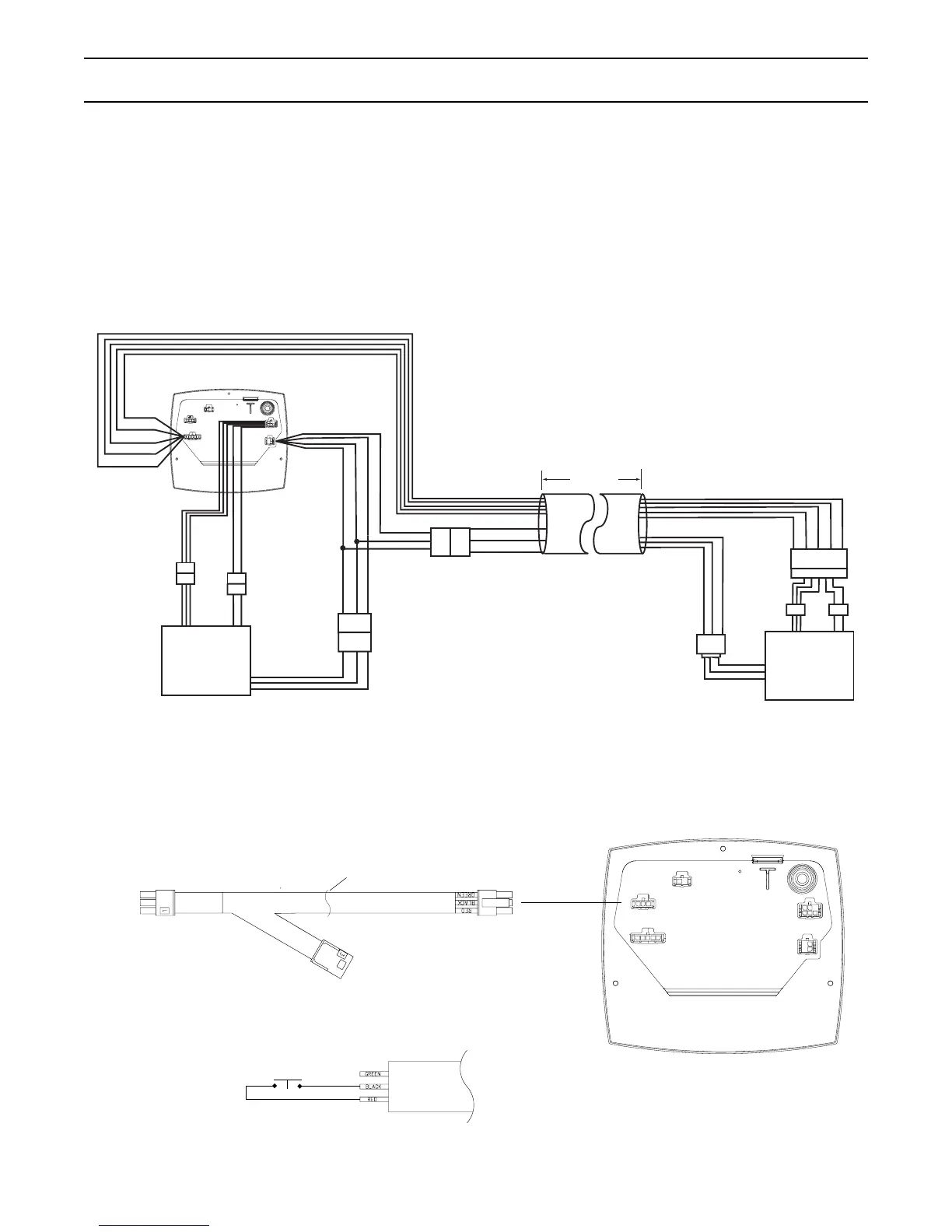

Connecting the Logix 764 Twin
Alternating or Parallel Controls
The twin sensor and extension cables are used for twin
unit parallel and alternating applications. Four standard
connections are required for operation; the power
transformer, the flow sensor, motor/optical sensor, and
the connection between tank 1 and tank 2 controls.
Figure-15 outlines these standard features.
Figure 15
Remote Regeneration Start
Figure 16
P4
BL BRN WHT YEL ORG
P2
Flow Sensor
Optical
Sensor
Motor
80 in.
(2017 mm)
P3
2
BLK
GRN
R
Logix 764 control
on Tank 1
R GRN BLK WHT
1
Flow Sensor
Optical
Sensor
Motor
BRN
ORG
WHT
YEL
BL
P1
Tank 1
Tank 2
Cut Cable here
Strip back insulation
Normally Open
Dry Contact Closure to
Start Regeneration
Note: Cable PN 3020228 sold separately.
