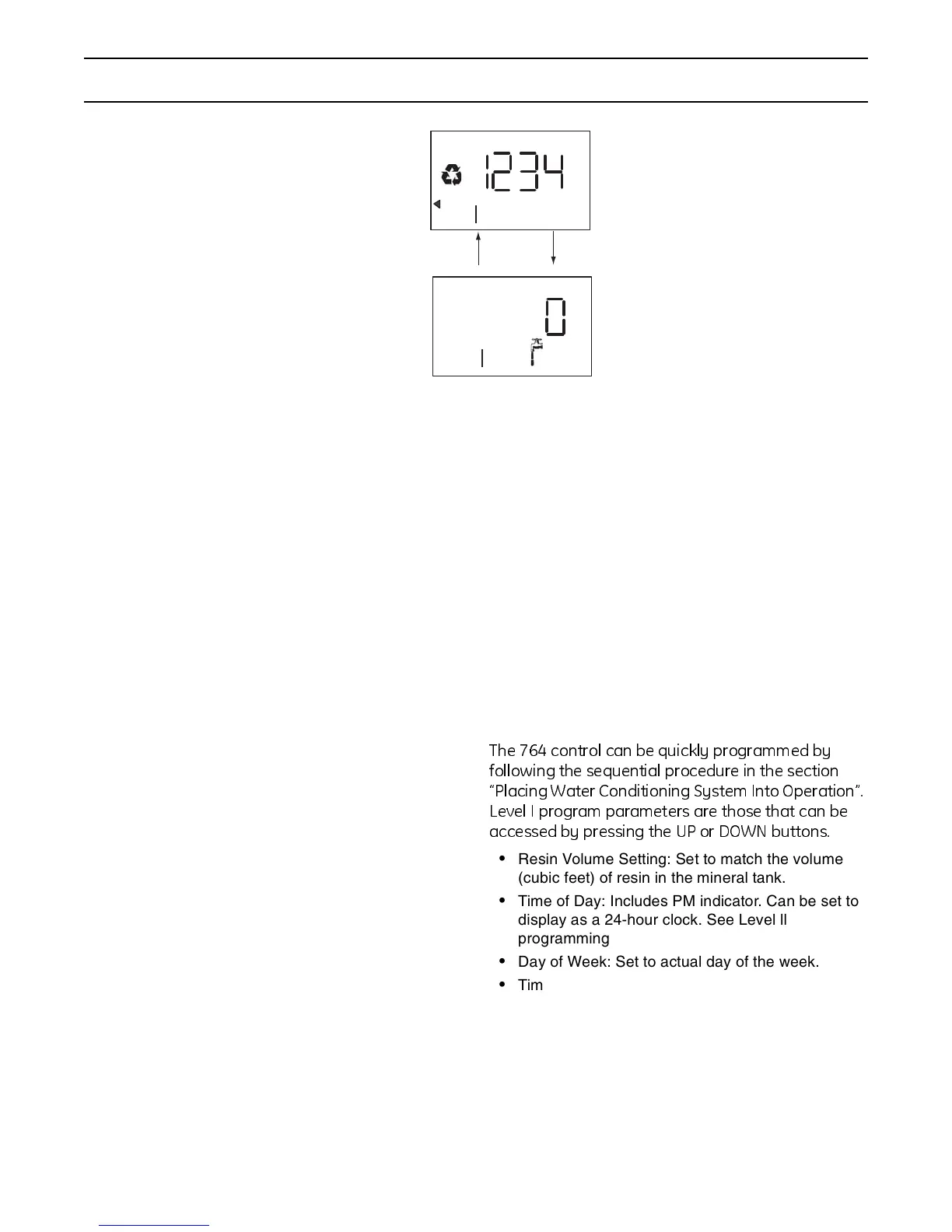

In Service Display
Logix 764 Electronic Multi-Tank - "A"
Alternating Control:
Service display — The number of the Tank in Service
(small digit next to CPH position) and Alternating
Capacity Remaining and Flow Rate with Faucet icon of
Tank in Service
Logix 764 Electronic Multi Tank - "P"
Parallel Control:
Service Display — alternating three items
Capacity remaining for Tank 1 with digit "1"
displayed
Capacity remaining for Tank 2 with digit "2"
displayed
System Flow Rate (Tank 1 + Tank 2 added) with
Faucet icon
Logix 764 Electronic Multi Tank — "L"
Lock Out Control
Service Display — Alternating Capacity Remaining and
Flow Rate with Faucet icon "L” displayed indicating
lockout signal is active. Blinking "L" and Lock icon if
lockout signal is active and control is ready to perform
regeneration.
Note: The faucet icon is displayed on all the Logix 764
controls when there is flow. The 764 will show the
faucet icon when the flow rate is displayed, even if the
flow rate is zero. If the flow rate is zero, the faucet will
turn off when the capacity is displayed.
Note: In-service flow rate display can be replaced with
a clock display using Level II programming.
Programming Overview
The 764 control includes multiple program levels that
allow the Water Treatment Professional to customize
the system for many water conditions. Additionally,
historical data can be viewed allowing quick and easy
troubleshooting. In most cases Level I programming is
all that is required to set up the water conditioning
system for proper operation. A brief description of each
program level is listed below.
Level I Used to program control for normal
applications.
Level II (P-Values) Allows the installer to customize
programming for non-standard applications.
Level Ill (C-Values) Allows the installer to adjust the
length of select cycles for non-standard applications.
Level IV History (H-Values) Allows access to historical
information for troubleshooting the system.
Note: If a button is not pushed for thirty seconds, the
control returns to normal operation mode.
Level I Programming
Th e 764 contr o l can be qui ckl y pr ogr amme d by
fol low i n g the sequ en ti al pr oce dur e i n t h e secti o n
“Pl a c ing Wa t er Cond it io ning Sys t e m In to Op e r a ti on” .
Lev el I progr am paramet er s are t ho se th at can be
accessed by pr essi ng the UP or DOW N but to n s.
• Resin Volume Setting: Set to match the volume
(cubic feet) of resin in the mineral tank.
• Time of Day: Includes PM indicator. Can be set to
display as a 24-hour clock. See Level ll
programming
• Day of Week: Set to actual day of the week.
• Time of Regeneration: Fully adjustable. Default is
2:00 AM.
• Days Override: Range 0.5 to 99 days. Leave at 0 to
disable.
• Salt Dosage: Set at pounds of salt per cubic foot of
resin in the conditioner tank.
Note: When the control is set up for a twelve-hour
clock a PM indicator will illuminate when the displayed
time is in the PM hours. There is no AM indicator.
Time/Day
Regeneration Time
Salt Amount
SU MO TU WE TH FR SA DAYS
Capacity
Time/Day
Regeneration Time
Salt Amount
SU MO TU WE TH FR SA DAYS
Capacity
Hardness
Hardness
