Autotrol Logix 764 User Manual

37

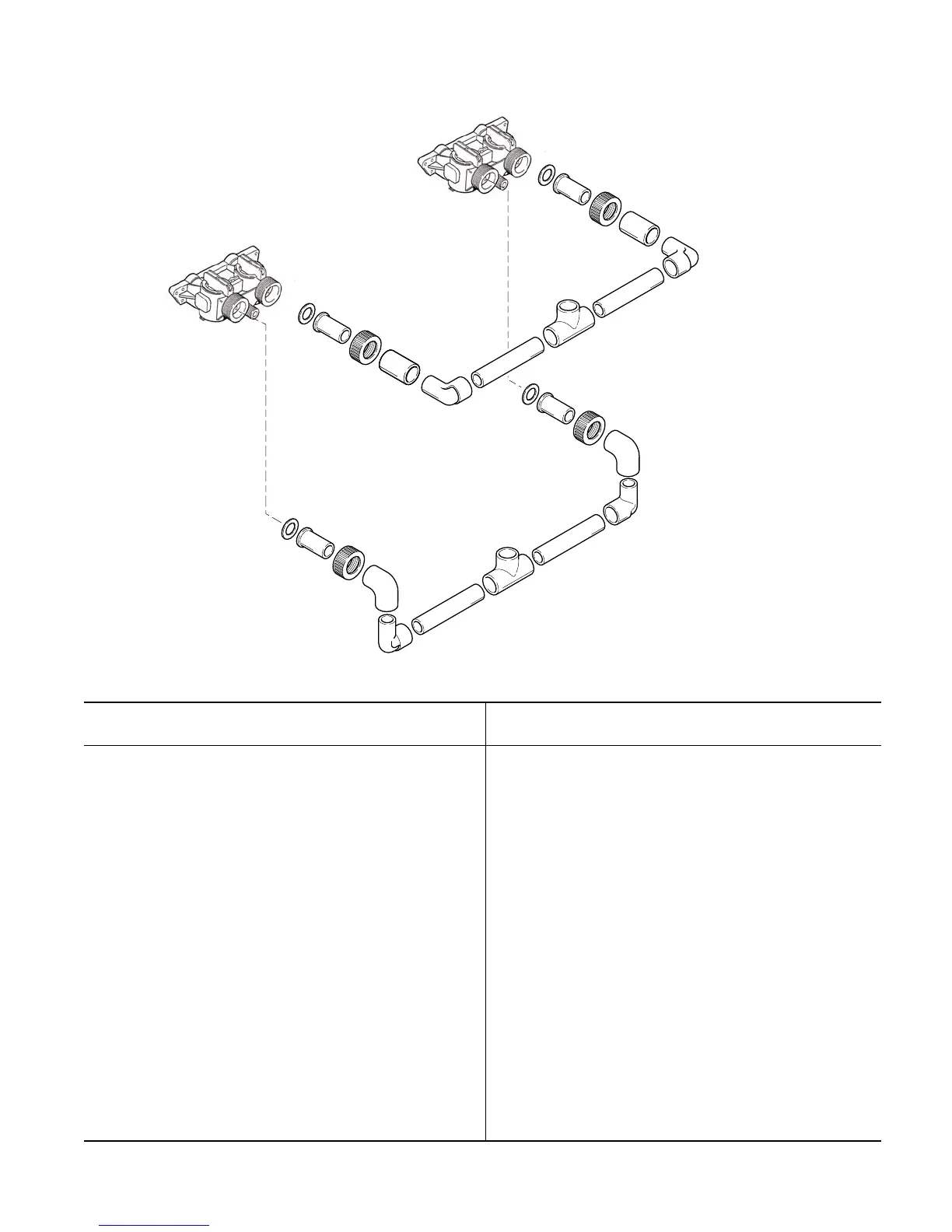

Manifold Kits
Part
No. Description Qty.
Part
No. Description Qty.
3019931 255 Manifold Kit, 1-in, PVC w/256 Bypass 1 3019932 764 Manifold Kit, 1-in PVC w/No Bypass 1
Kit Includes: Kit Includes:
Pipe Fitting, Tee, 1-in 2 Pipe Fitting, Tee, 1-in 2
Pipe Fitting, Elbow, Sch 40, 1-in, PVC 2 Pipe Fitting, Elbow, Sch 40, 1-in, PVC 2
Pipe Fitting, Sch 40, 1-in, Str Elbow, PVC 4 Pipe Fitting, Sch 40, 1-in, Str Elbow, PVC 4
Pipe Fitting, Sch 40, 1-in, Coupling,PVC 2 Pipe Fitting, Sch 40, 1-in, Coupling,PVC 2
Gasket, 1.69 OD x 1.06 ID x 0.13 T, EP 4 Gasket, 1.69 OD x 1.06 ID x 0.13 T, EP 4
Adapter Pipe, Soc Connector, 1-in, CPVC,
Gray
4
Adapter Pipe, Soc Connector, 1-in, CPVC,
Gray
4
Pipe, 1-in, Sch 40 x 12.5 in. long, PVC, 255
Ry
4
Pipe, 1-in, Sch 40 x 12.5 in. long, PVC,
255 Ry
4
Pipe-Tube Adapter Nut, 1.42 ID, Universal 4 Pipe-Tube Adapter Nut, 1.42 ID, Universal 4
256 Bypass w/Install Kit, No Adapters.
Single Pack
2
