AUX Air Conditioner Service manual
30

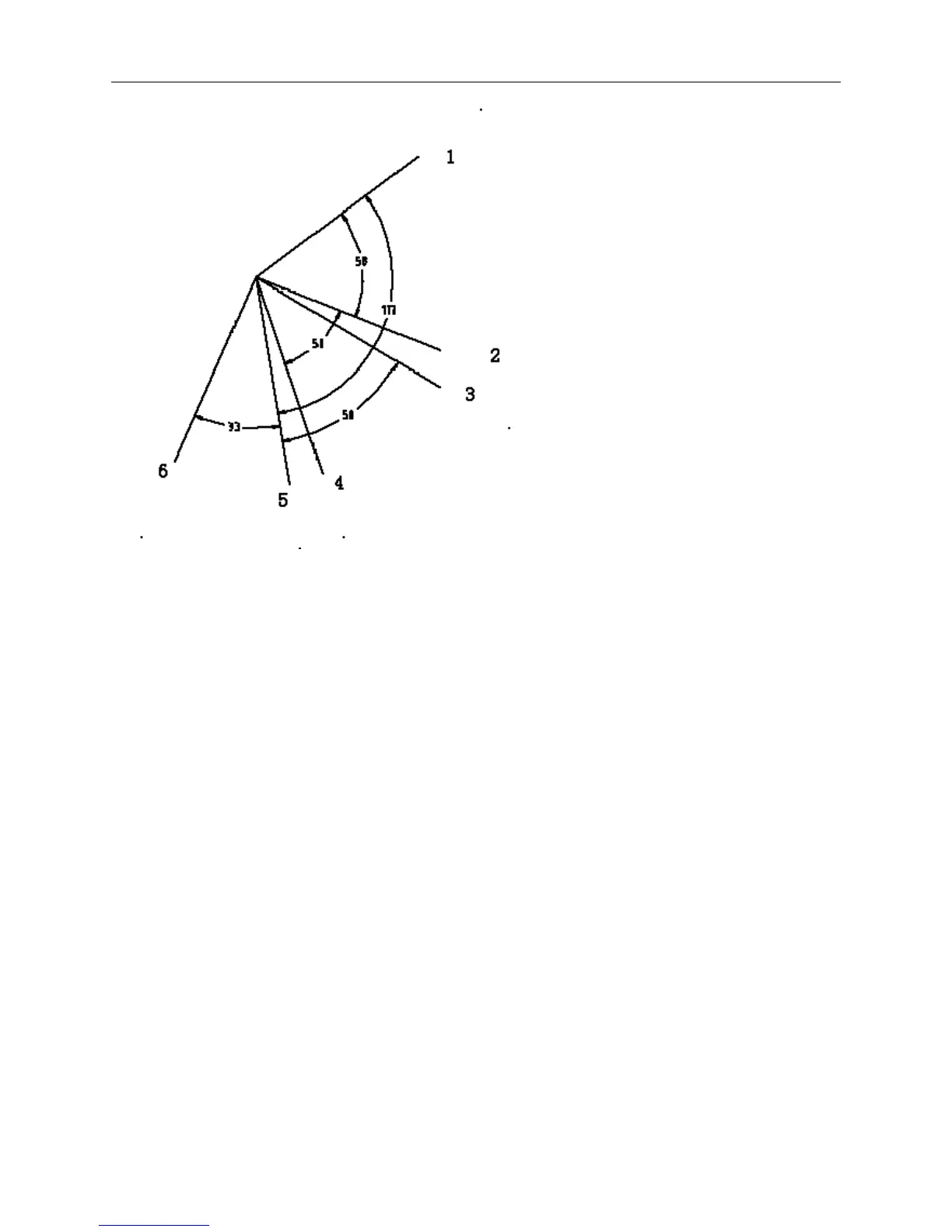

1. position of complete shutdown 2. refrigeration position
3. refrigerating pendulum terminal point 4 heating pendulum terminal point
5 heating position 6 position of complete shutdown
Swinging angle of repeating motor for H series off-set air conditioner 9000Btu and 12000Btu
1. When power is on. the air blade makes a complete shutdown. with a swing rate of 22°/ s
2. When machine is on. the air blade makes a complete shutdown. then swing to its initial point. While
heating.it stops at point 5( chart 4）.while cooling.then swing back to point 2（chart 4）.
3. The flap button on remote controller can set the air blade to free swing or Manual swing.
4. For free swing. he swing scope of heating is 40°.as (chart 4）3-5.swing scope is 40°.as 2-4 in
chart.swing rate for 5.5°/ S.
5. When the machine is turned on. while remote control set air blade non-swing.swing angle swings to
a proper position according to different mode eg:cooling mode is（chart 4）position two.heating mold is
（chart 4）position 5. If it's set as free swing. open the fan. air throttle swings within limitation. If the
remote manipulator set non-swing. pendulum will stop at the set position. If the fan is not open. then
the air blade will not swing.
6. Turn off the machine and when the inside motor stop working.the air blade will close by itself.
7. Press the emergency switch to start automatic mold. When the selected mode start to run. air blade
will open. Before this air blade stays on cooling position.
Show chart of swinging angle of H model air blade as follows
