AUX Air Conditioner Service manual
11

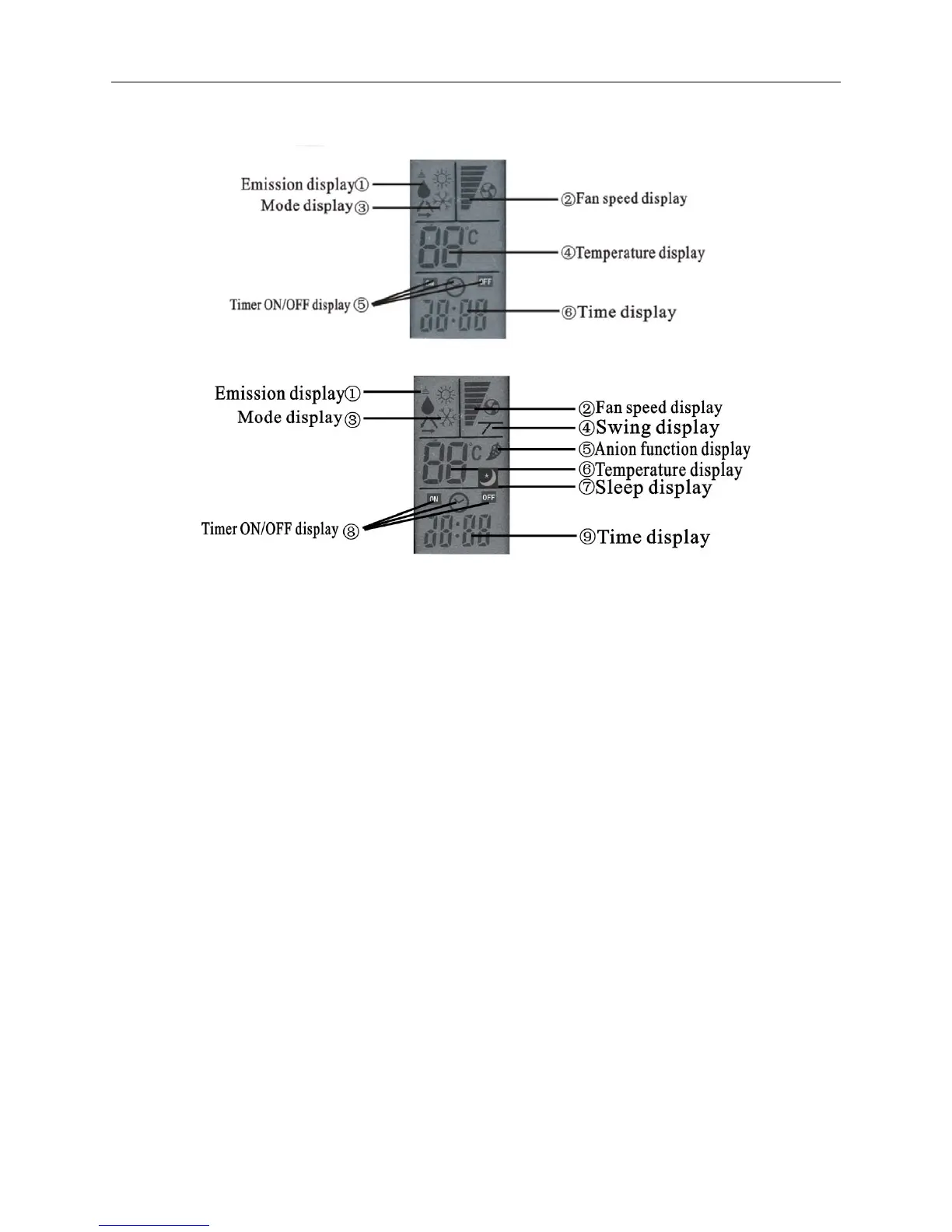

b. Display
YK(R)-C/01E
YK(R)-C/02JE
Following function description is according to model of YK（R）-C/01E.The number in the
bracket is to the model of YK（R）-C/02JE accordingly
① Emission display
When the remote controller sends correct and effective signal each time, the sign will glitter once.
② Fan speed display
Press the Fan speed selection button ,the fan speed will display. You can select fan speed from “Feel” ,
“High” , “Low” , “Mute” （H、M series）or“Auto”、“High”、“Mid”、“Low”（E series）.
③ Mode display
Press the MODE button, it shows the current operation mode. You can select “Feel” , “Cool” , “Dry” ,
“Fan” , “Heat” operation mode .(Cold wind type has no heating display).
④ Temperature display （⑥）
Which displays the setting temperature . In the circulation operation mode ( “FEEL” and “FAN” ) , the
temperature number don’t display.
⑤ Timer ON/OFF display （⑧）
Which displays the timer states , “the timer ON” and “the timer OFF” don’t set at the same time.
⑥ Time display （⑨）
Show the current clock time .
New adding display programs of YK（R）-C/02JE as follows:
④ Swing display
Pressing the SWING button to change the swing angle of louver .
Remarks : it is readable to list all of items in the picture , when the mode operates , only most of items
display on the remote controller.
⑤ Anion function display
