AUX Air Conditioner Service manual
54

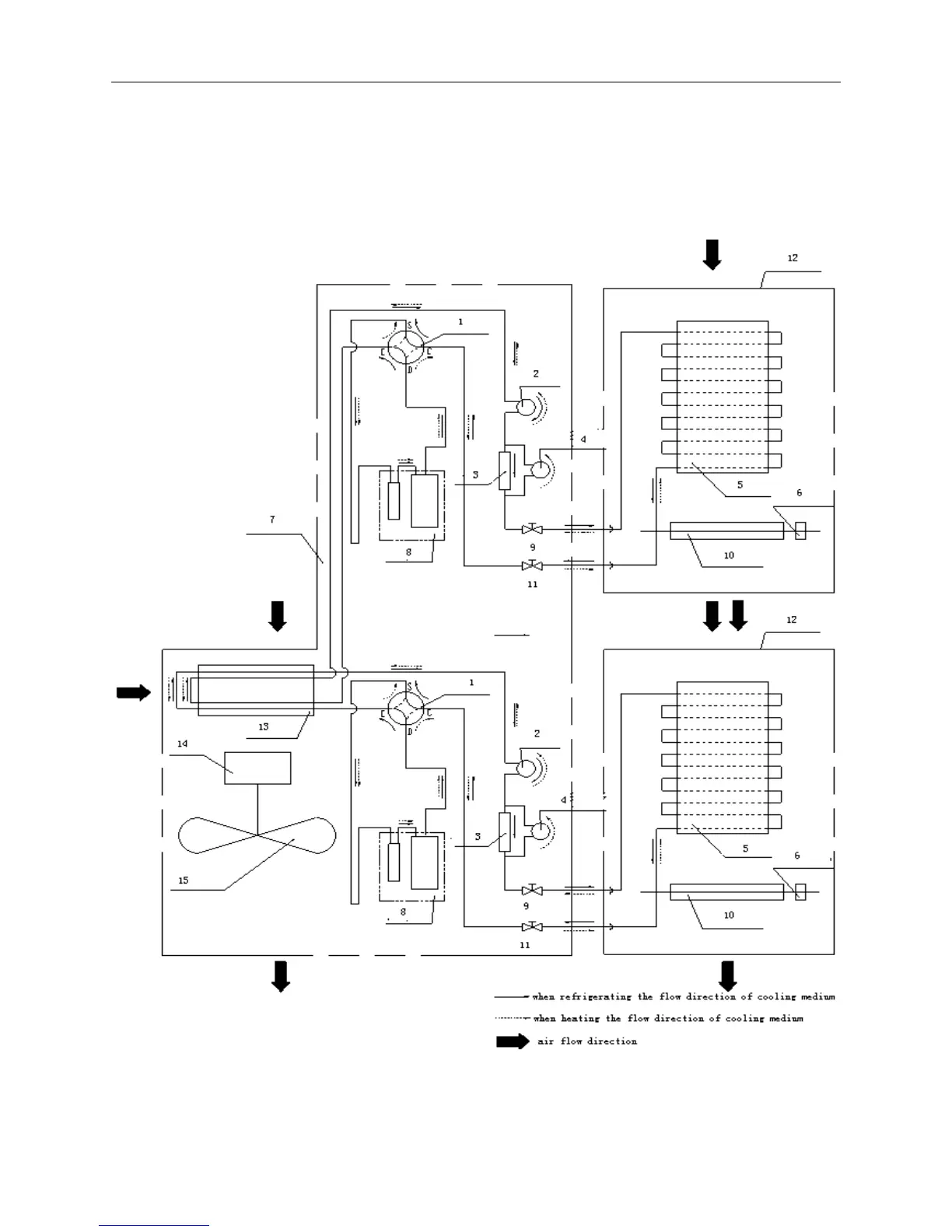

Section 8 Cooling Cycle Diagram
The following chart shows the schematic circuit of the heat pump model.odd cool model only
applies the cooling processwithout four way valve
Cooling Cycle Diagram
1 four way valve 2 capillary tube 3 single way valve 4 aux-capillary tube 5 evaporator
6 indoor unit motor 7 outdoor unit 8 compressor 9 liquid valve 10 through flow fan
11 gas valve 12 indoor unit 13 condenser 14 outdoor motor 15 axial flow fan
