ECM-BT45 User’s Manual
20 ECM-BT45 User’s Manual

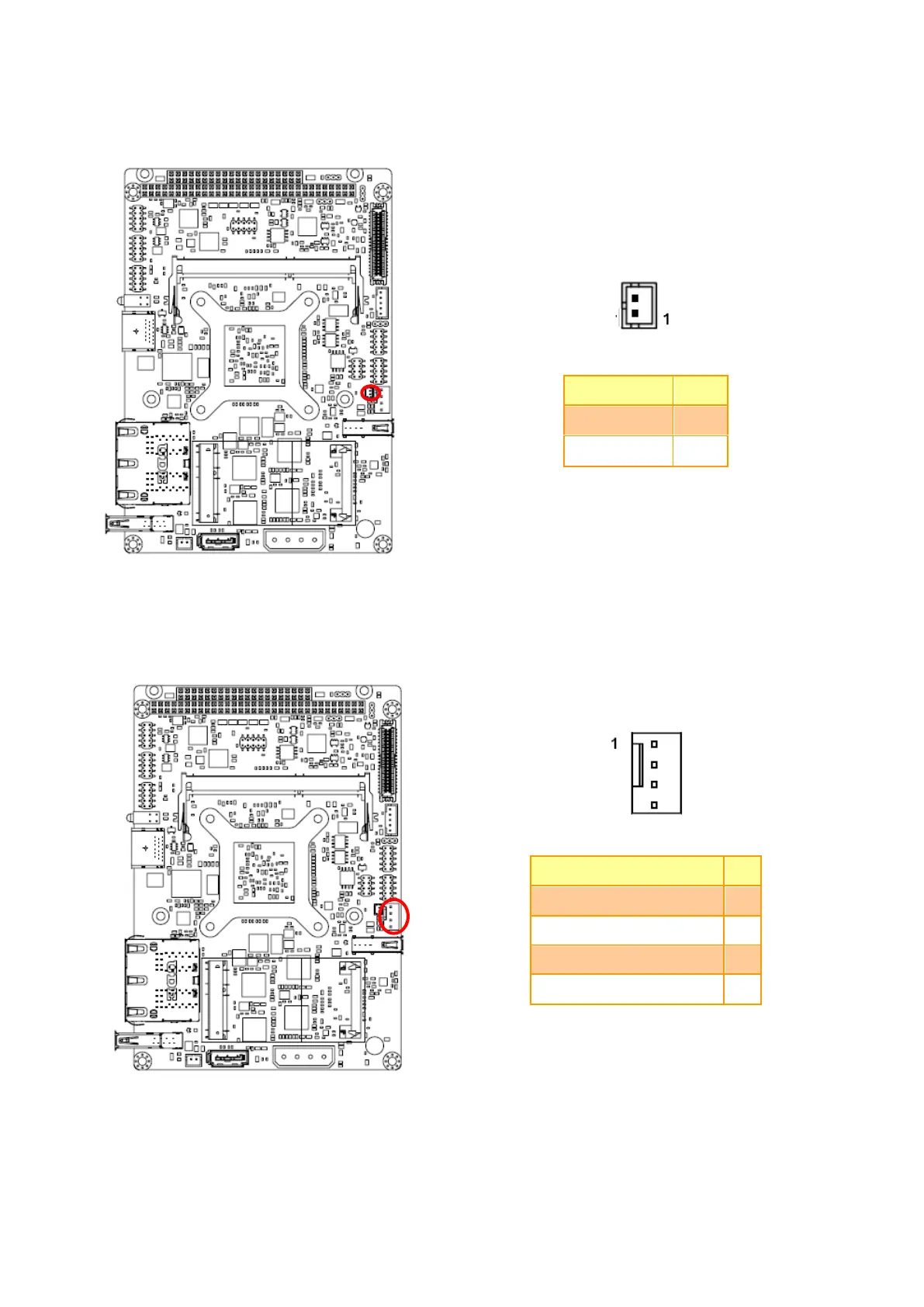

2.3.5 Battery connector (JBAT1)
Signal
PIN
GND
2
+3.3V
1
2.3.6 PWM fan connector (PWMFAN1)
Signal
PIN
GND
1
+12V
2
EC_TACH0
3
FAN_PWM0
4
