ECM-BT45 User’s Manual
50 ECM-BT45 User’s Manual
1920x1200 24/2
640x480 18/1 LG81
640x480 18/1 LG61
1920x1080 18/2
1280x1024 24/2
1440x900 18/2
1600x1200 24/2
1366x768 24/1
1920x1080 24/2
1680x1050 24/2
Brightness Control Method
BIOS[Default]
BR Button
VR
LVDS Brightness Control Method. 1.BIOS
2.Brightness Button 3.Variable Resistor.
LVDS Back Light PWM
00%
25%
50%
75%
100%[Default]
Select LVDS back light PWM duty.
LVDS Back Light PWM
Frequency
200[Default]
300
400
500
700
1k
2k
3k
5k
10k
20k
Select LVDS back light PWM Frequency.

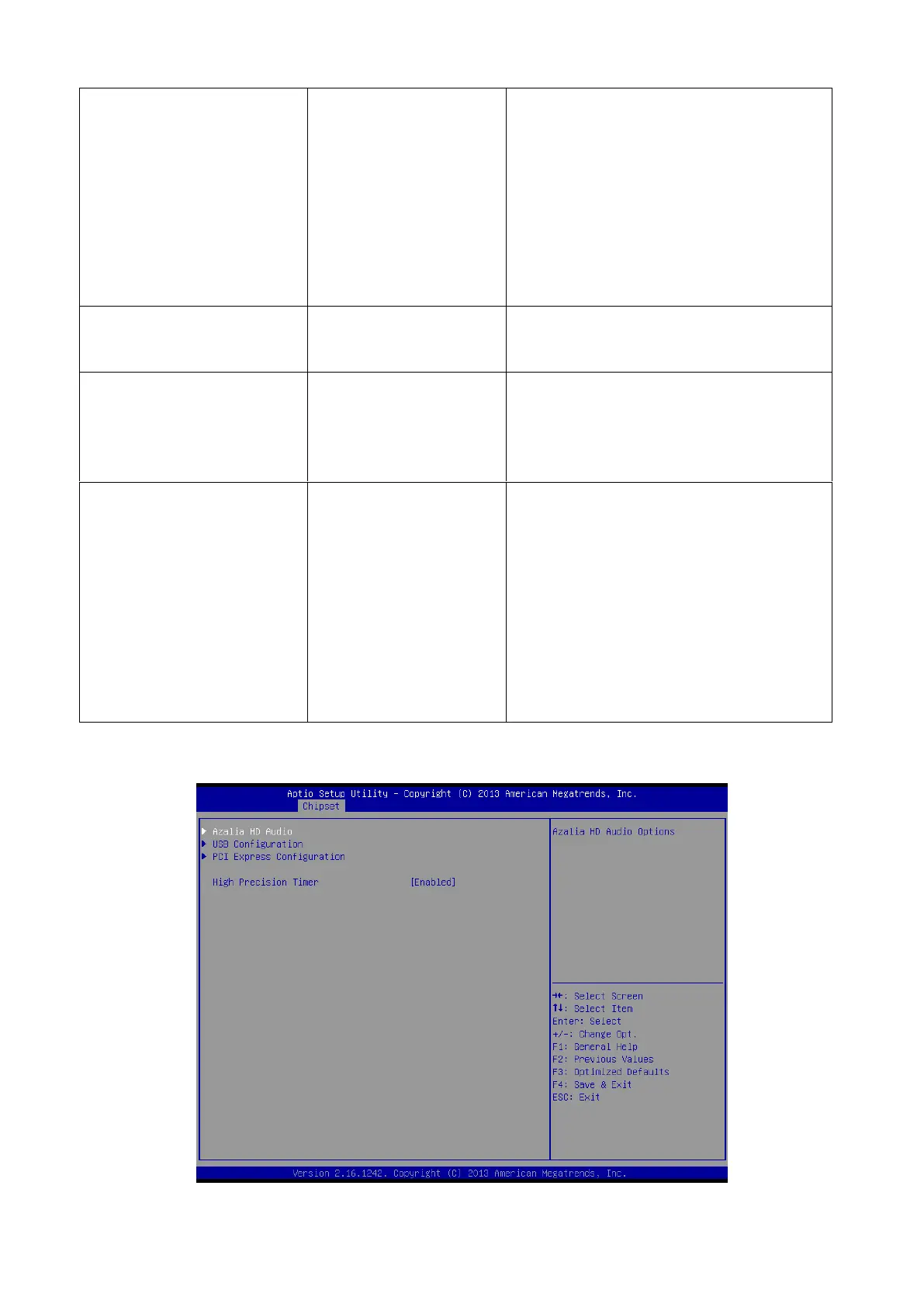

3.6.3.2 South Bridge
