Avalue Technology ECM-BT45 - On-Board Header for USB2.0 (JUSB1); On-Board Header for USB2.0 (JUSB2)

ECM-BT45 User’s Manual
22 ECM-BT45 User’s Manual

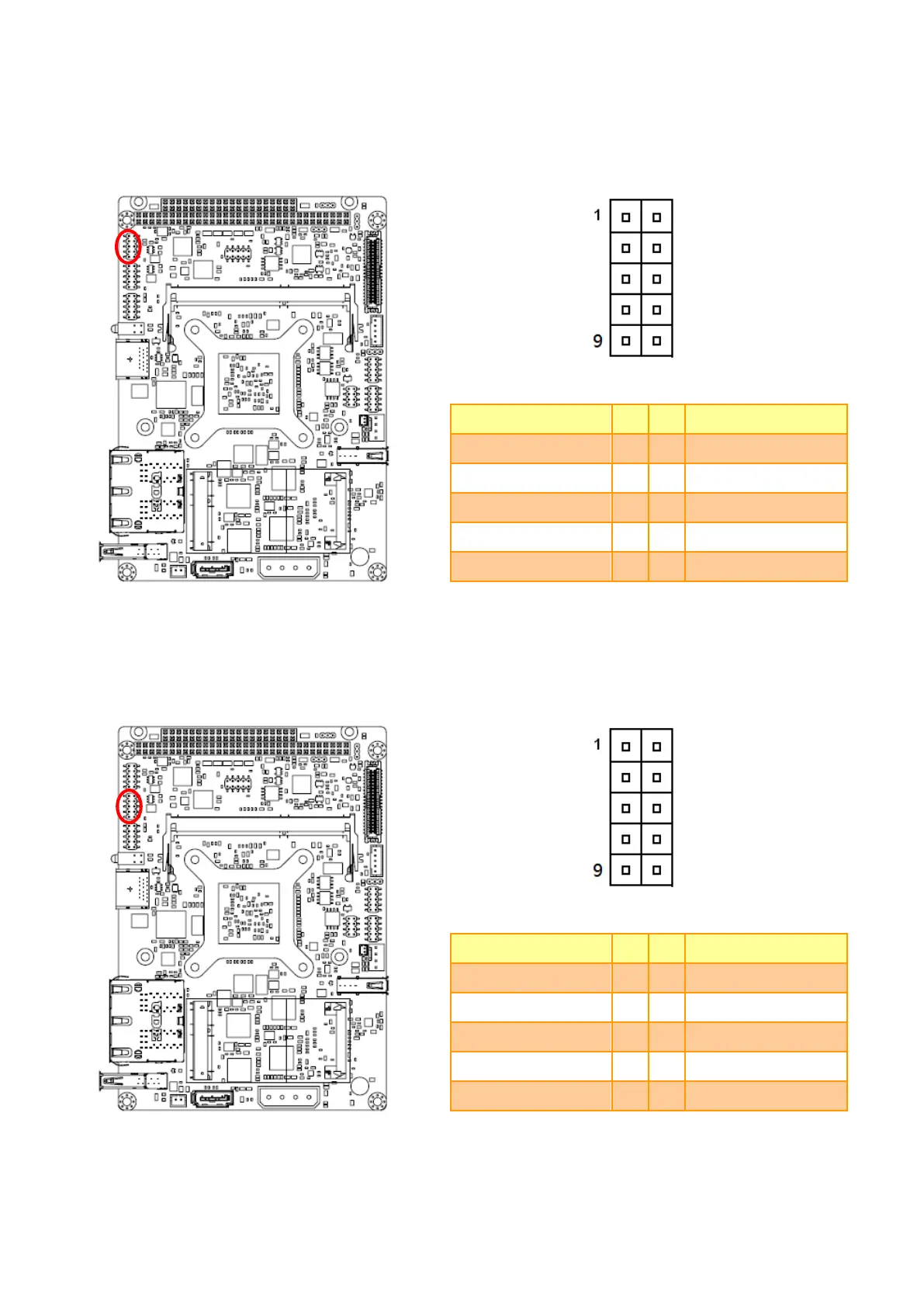

2.3.9 On-board header for USB2.0 (JUSB1)
Signal
PIN
PIN
Signal
HSIC_USBVCC02
1
2
GND
USB_HSIC_DN_R_1
3
4
GND
USB_HSIC_DP_R_1
5
6
USB_HSIC_DP_R_2
GND
7
8
USB_HSIC_DN_R_2
GND
9
10
HSIC_USBVCC02
2.3.10 On-board header for USB2.0 (JUSB2)
Signal
PIN
PIN
Signal
HSIC_USBVCC03
1
2
GND
USB_HSIC_DN_R_3
3
4
GND
USB_HSIC_DP_R_3
5
6
USB_HSIC_DP_R_4
GND
7
8
USB_HSIC_DN_R_4
GND
9
10
HSIC_USBVCC02
