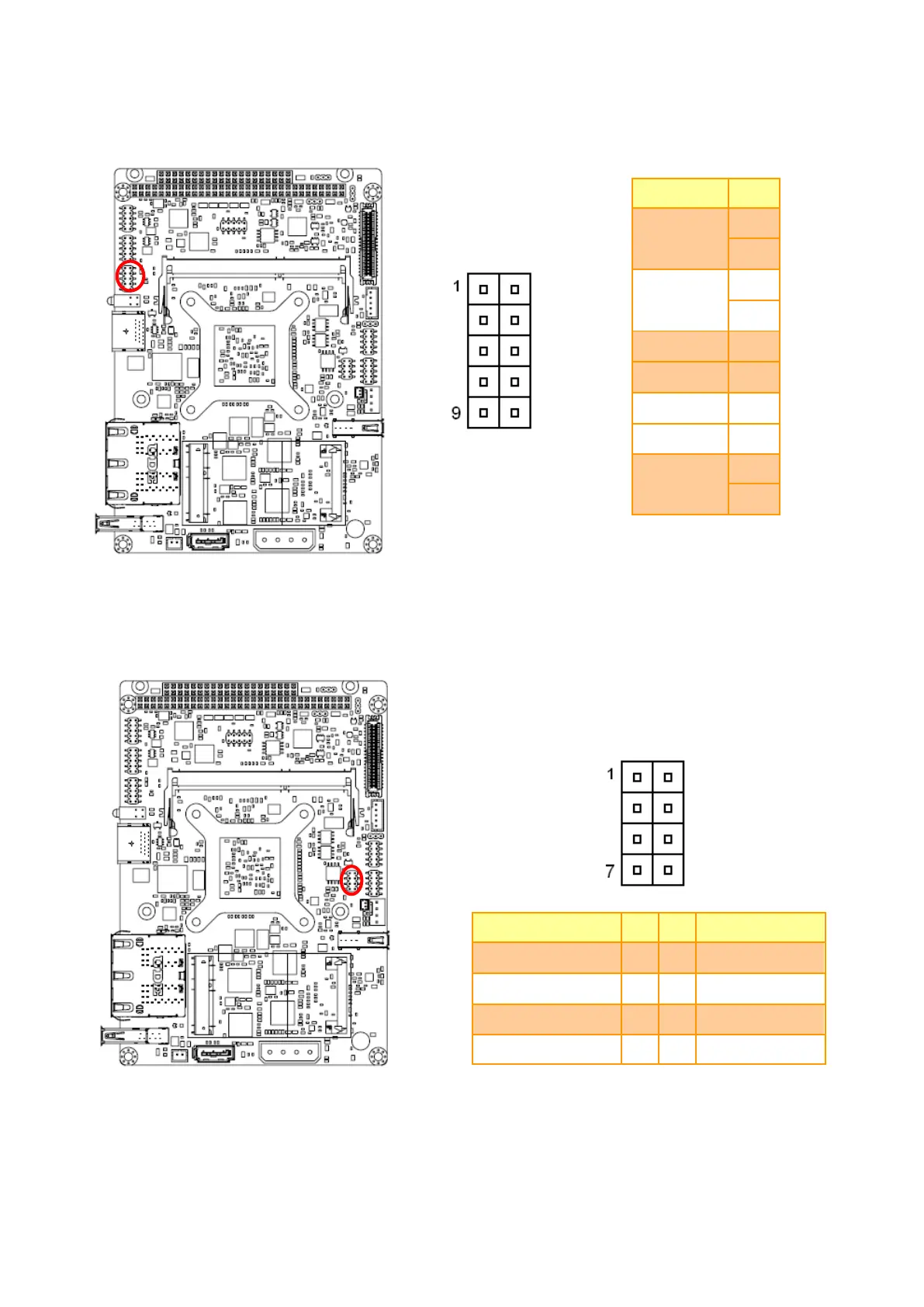

2.3.13 Miscellaneous setting connector (JFP1)
Signal
PIN
PWBT
1
2
RST#
3
4
PWR-LED+
5
PWR-LED-
6
HDD-LED-
7
HDD-LED+
8
COPEN#
9
10
2.3.14 SPI connector (JSPI1)
Signal
PIN
PIN
Signal
+VSPI_BIOS
1
2
GND
SPI_ROM_CS#
3
4
SPI_ROM_CLK
SPI_ROM_MISO_R
5
6
SPI_ROM_MOSI
SPI_HOLD#
7
8
NC
