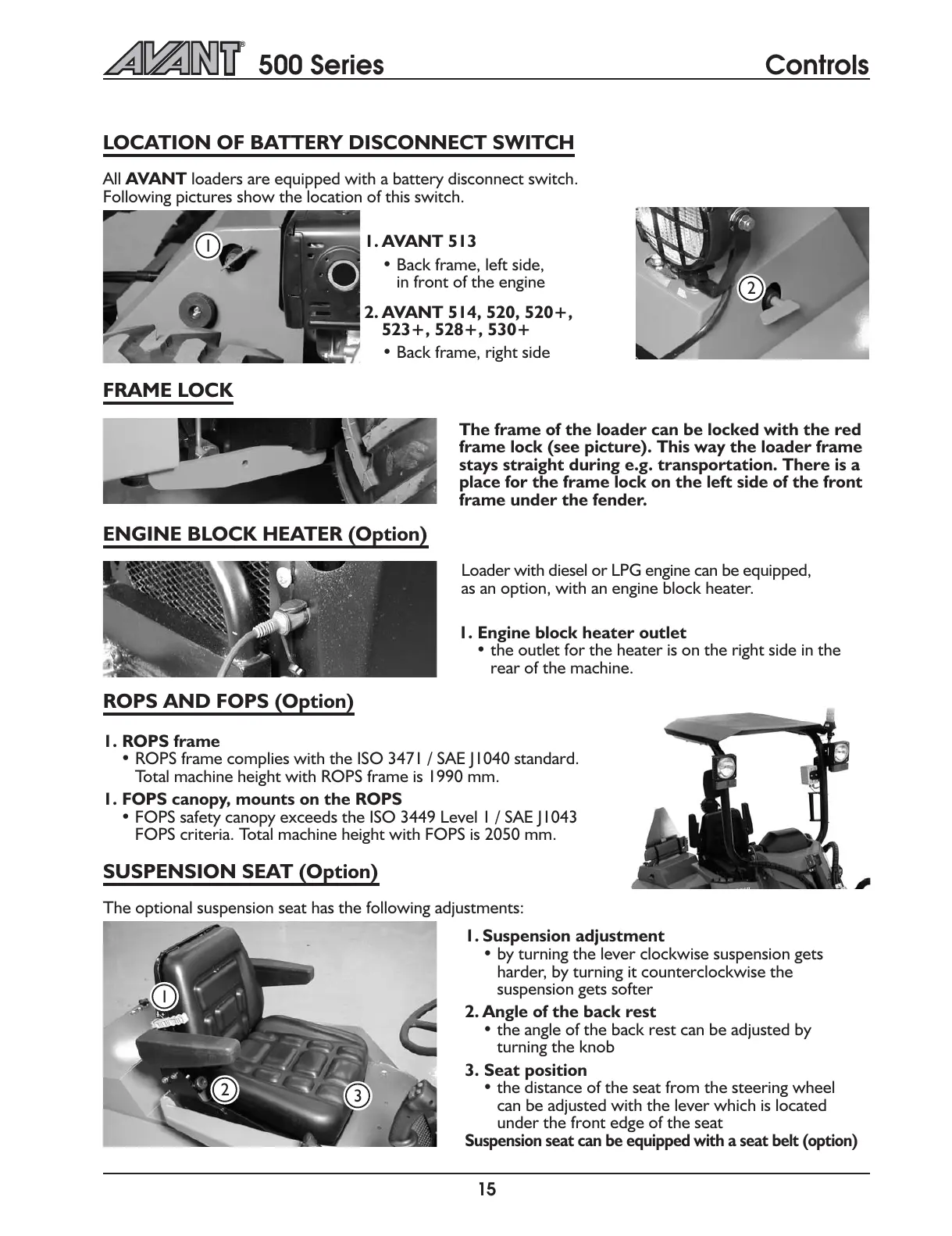

500 Series
Controls
15
LOCATION OF BATTERY DISCONNECT SWITCH
All AVANT loaders are equipped with a battery disconnect switch.
Following pictures show the location of this switch.
1. AVANT 513
Back frame, left side,
in front of the engine
2. AVANT 514, 520, 520+,
523+, 528+, 530+
Back frame, right side
ENGINE BLOCK HEATER (Option)
Loader with diesel or LPG engine can be equipped,
as an option, with an engine block heater.
ROPS AND FOPS (Option)
1. ROPS frame
ROPS frame complies with the ISO 3471 / SAE J1040 standard.
Total machine height with ROPS frame is 1990 mm.
1. FOPS canopy, mounts on the ROPS
FOPS safety canopy exceeds the ISO 3449 Level 1 / SAE J1043
FOPS criteria. Total machine height with FOPS is 2050 mm.
FRAME LOCK
The frame of the loader can be locked with the red
frame lock (see picture). This way the loader frame
stays straight during e.g. transportation. There is a
place for the frame lock on the left side of the front
frame under the fender.
SUSPENSION SEAT (Option)
The optional suspension seat has the following adjustments:
1. Suspension adjustment
by turning the lever clockwise suspension gets
harder, by turning it counterclockwise the
suspension gets softer
2. Angle of the back rest
the angle of the back rest can be adjusted by
turning the knob
3. Seat position
the distance of the seat from the steering wheel
can be adjusted with the lever which is located
under the front edge of the seat
Suspension seat can be equipped with a seat belt (option)
1
2
3
1. Engine block heater outlet
the outlet for the heater is on the right side in the
rear of the machine.
1
2
