1. Drive pedal, right: drive forward
2. Drive pedal, left: drive backward
3. Parking brake handle
locking: pull up and turn right into locking position
releasing: turn left and let the handle go down, if
necessary make a sharp turn with the steering wheel
so that the locking pins unlock in the rear wheels
4. Control lever of boom floating valve
(boom floating is an optional extra)
the floating system releases pressures on the
down side of the lift cylinder allowing the
attachment to follow the contours of the terrain.
5. Hour meter (in the footwell on model
AVANT 513 only)

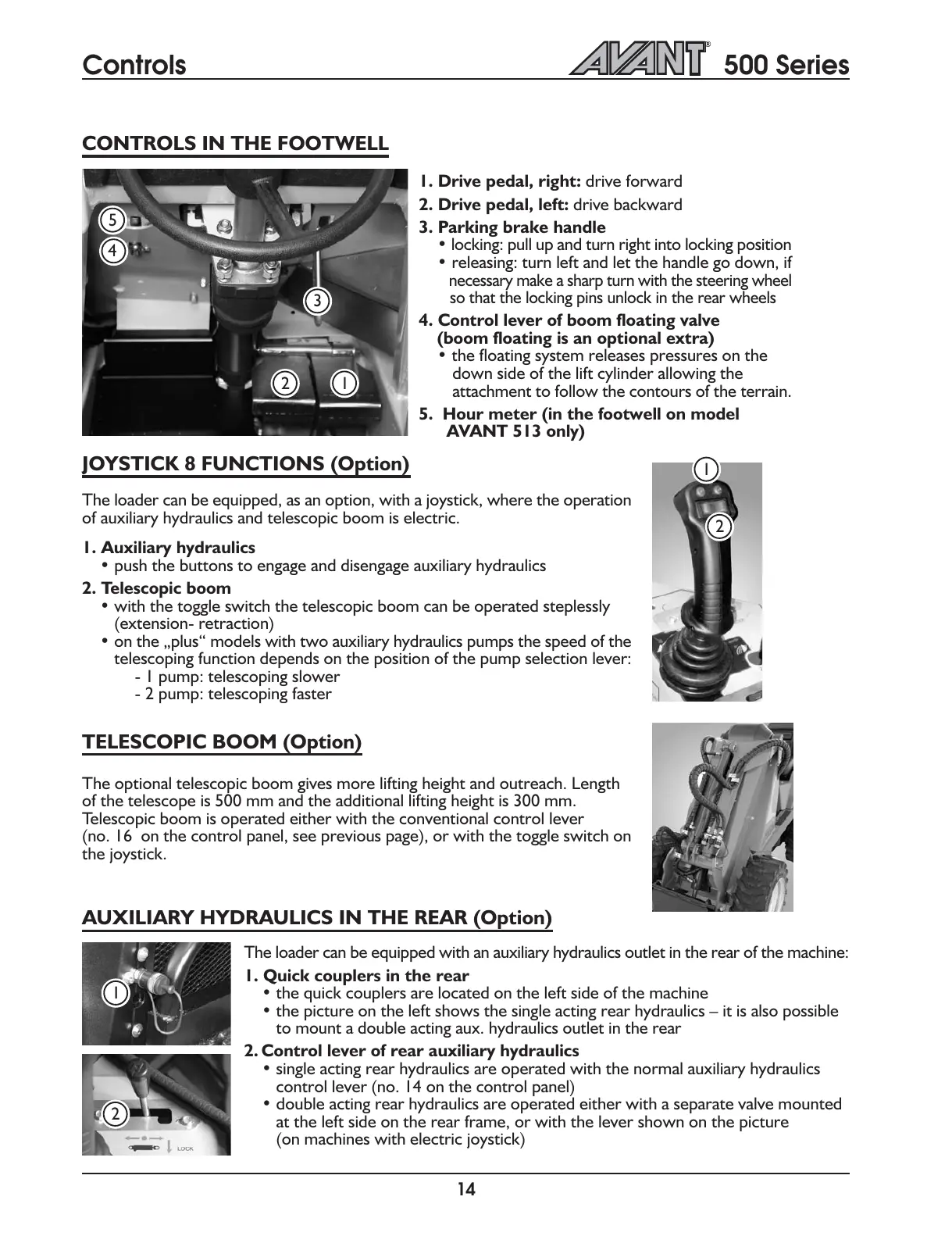

CONTROLS IN THE FOOTWELL
1
2
4
3
5
Controls
14
500 Series
The loader can be equipped with an auxiliary hydraulics outlet in the rear of the machine:
1. Quick couplers in the rear
the quick couplers are located on the left side of the machine
the picture on the left shows the single acting rear hydraulics it is
also possible
to mount a double acting aux. hydraulics outlet in the rear
2. Control lever of rear auxiliary hydraulics
single acting rear hydraulics are operated with the normal auxiliary hydraulics
control lever (no. 14 on the control panel)
double acting rear hydraulics are operated either with a separate valve mounted
at the left side on the rear frame, or with the lever shown on the picture
(on machines with electric joystick)
AUXILIARY HYDRAULICS IN THE REAR (Option)
1
2
The optional telescopic boom gives more lifting height and outreach. Length
of the telescope is 500 mm and the additional lifting height is 300 mm.
Telescopic boom is operated either with the conventional control lever
(no. 16 on the control panel, see previous page), or with the toggle switch on
the joystick.
TELESCOPIC BOOM (Option)
JOYSTICK 8 FUNCTIONS (Option)
The loader can be equipped, as an option, with a joystick, where the operation
of auxiliary hydraulics and telescopic boom is electric.
1. Auxiliary hydraulics
push the buttons to engage and disengage auxiliary hydraulics
2. Telescopic boom
with the toggle switch the telescopic boom can be operated steplessly
(extension- retraction)
on the plus models with two auxiliary hydraulics pumps the speed of the
telescoping function depends on the position of the pump selection lever:
- 1 pump: telescoping slower
- 2 pump: telescoping faster
1
2
