The knife must be replaced once its diameter reaches 10 mm less than its
nominal value. The reduction of the knife diameter could require a correct
adjustment of the sharpener, which should be positioned in this way:
1. Lift up the protection cover (pos 1 figure 6-3) and rotate the sharpener into
its sharpening position (fig 6-3).
2. Loosen the 2 screws (pos 1 figure 6-4); remove the handle (pos 2); loosen
the bolt (spanner 22) (pos 3) and remove the sharpener assy (pos 4)
3. Rotate the bolt (pos 5 figure 6-4) clockwise as much as necessary,
assemble the sharpener assy by checking that both stones are positioned
as in figure 6-5, with the finishing stone parallel to the knife (figure 6-3) and
that there are no interferences with the movable guard (pos 6 figure 6-3).
Put the sharpener into its not operating position and check that there are no
interferences between the finishing stone and the knife. Fix sharpener
assembly by fastening the bolt (pos 3 figure 6-3)
4. Reset the knob pos.2 figure 6-3 and fasten the two screw pos.1 figure 6-3.
6.2 Sharpener settings/adjustments RP-A301CE

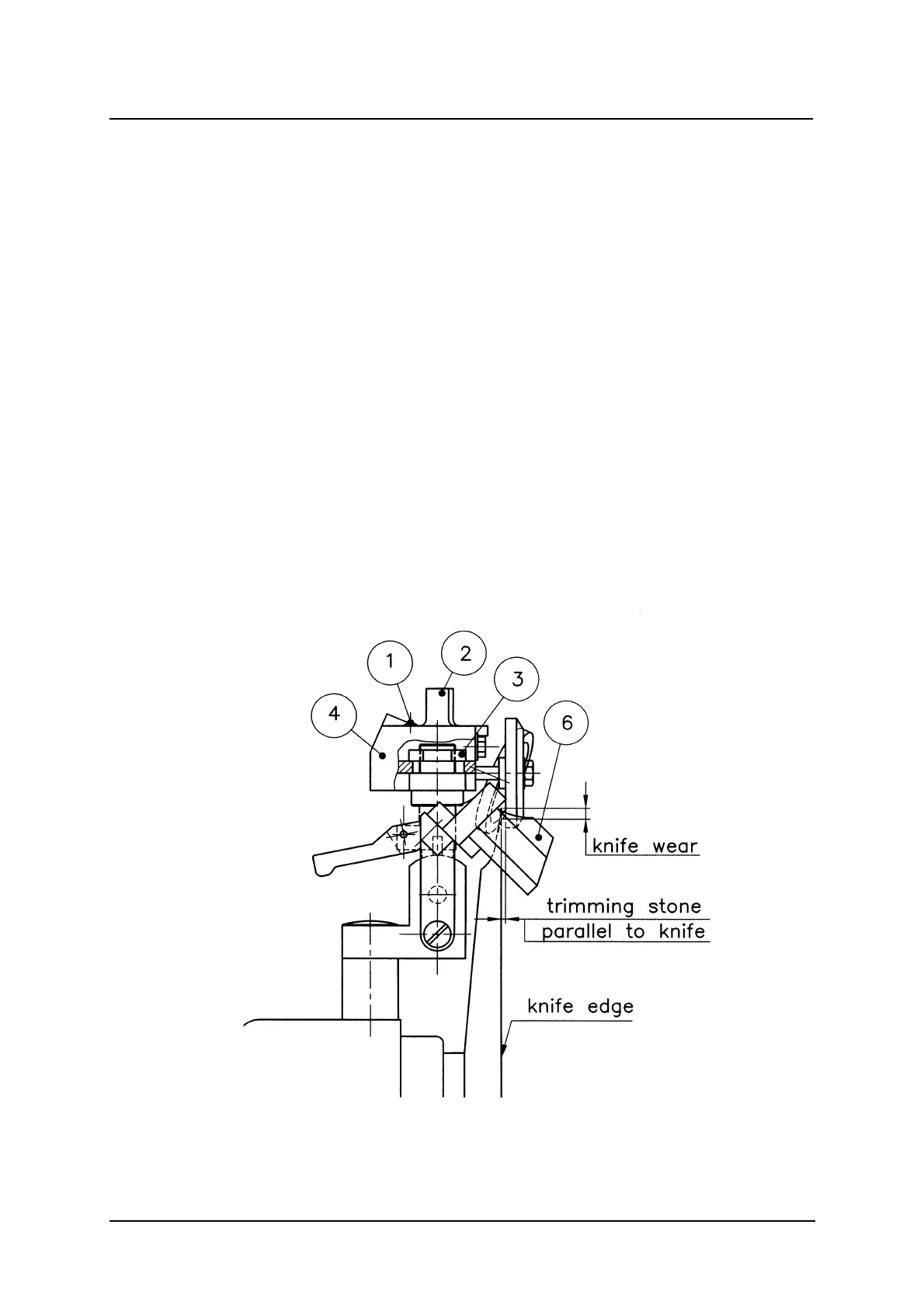

Figure 6-3
