6 — Technical Information
6 - 4 Service Instructions RP-A301CE/RP-A351CE/RP-A355CE

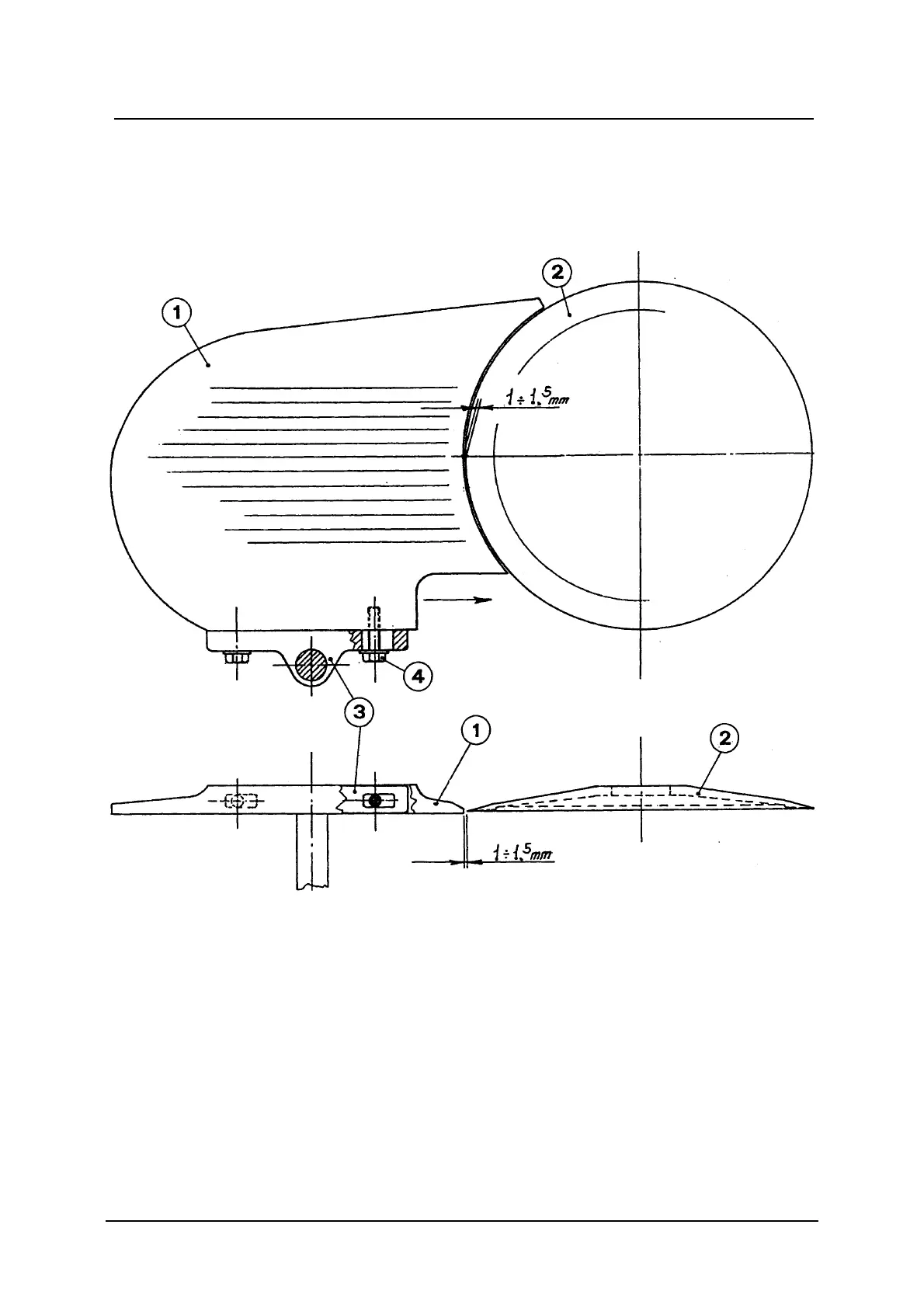

Figure 6-2 Adjustment of thickness plate
1. Loosen the 2 screws (4) and draw the thickness plate near to the knife (2),
as shown in figure 6-2.
2. Fasten the thickness plate in the right position, by firmly tightening the 2
screws (4).
