Universal Slave Driver
8
Pro Tools MIX/MIXplus or
Pro Tools 24 Systems
(Macintosh and Windows)
To connect the USD to a Macintosh or
Windows Pro Tools MIX/MIXplus or
Pro Tools 24 system:
1
Make sure the power is switched off for
both the USD and the computer.
2
Connect one end of the cable to the USD
port labelled Mac Serial (whether using a
Macintosh or a Windows computer).
3
Connect the other end of the cable to the
DigiSerial Port on your primary Pro Tools
MIX or d24 card (the Core card).
4
Restore power to the USD, and restart
your computer.
USB Blue and White G3/G4 Example
■
Connect the USD Mac Serial port to the
DigiSerial port.
■
Connect MachineControl™ (optional)
to a GeeThree, Griffin, or Keyspan serial
port adaptor (see “USD Serial Port Require-
ments” on page 2).
If using MIDI, connect a MIDI interface or
HUI to a GeeThree or Griffin serial port
adaptor (see “USD Serial Port Require-
ments” on page 2).
DigiSerial Port General Info
Pro Tools MIX and d24 cards feature a
DigiSerial Port. Though this port is identi-
cal in appearance to the serial ports on your
CPU, it is designed to only be used for:
• the USD proprietary serial connection.
– or –
• a serial-to-9-pin cable in combination
with the MachineControl™ option for
Pro Tools. This should only be connected
to the DigiSerial Port when there is no
USD present in the system.
▲
The DigiSerial Port should
not
be used for
connecting MIDI Interfaces or any other serial
device. Attempting to do so will adversely af-
fect Pro Tools performance.

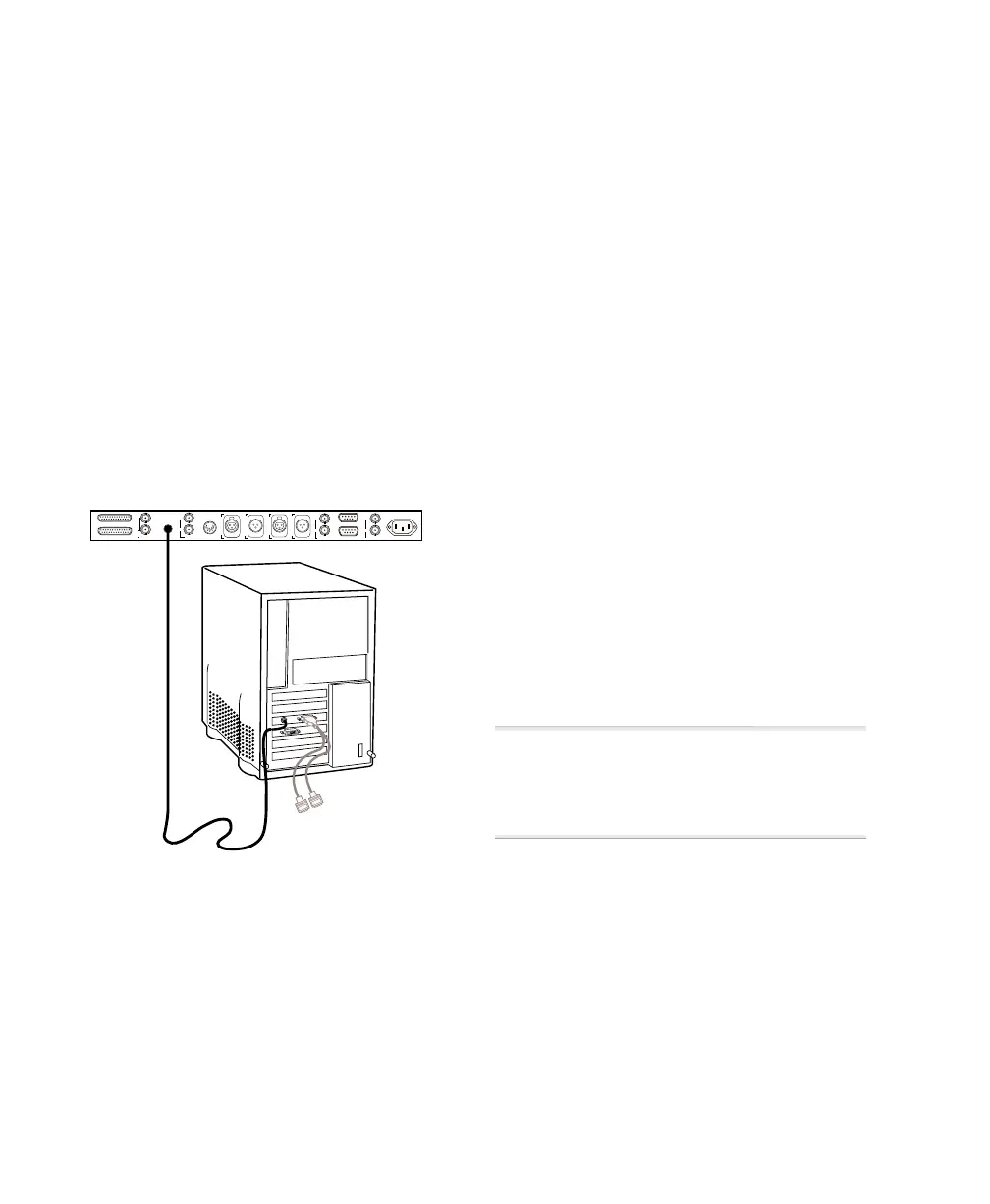

Connecting USD to a DigiSerial Port
MTC OUT
MAC SERIAL
85-264VAC, 47-63HZ, 115 W
SUPER CLOCK (256X)
PC SERIAL
BI-PHASE / TACH / GPI
VIDEO REF
9-PIN OUT
9-PIN IN / ACC
WORD CLOCK
VIDEO
L
T
C
I
N
A
E
S
I
N
A
E
S
O
U
T
L
T
C
O
U
T
IN
OUT
IN
OUT
IN
OUT
Mac Serial
to
(Pro
Tools
Audio Interface
cables)
DigiSerial Port
USD
CPU
