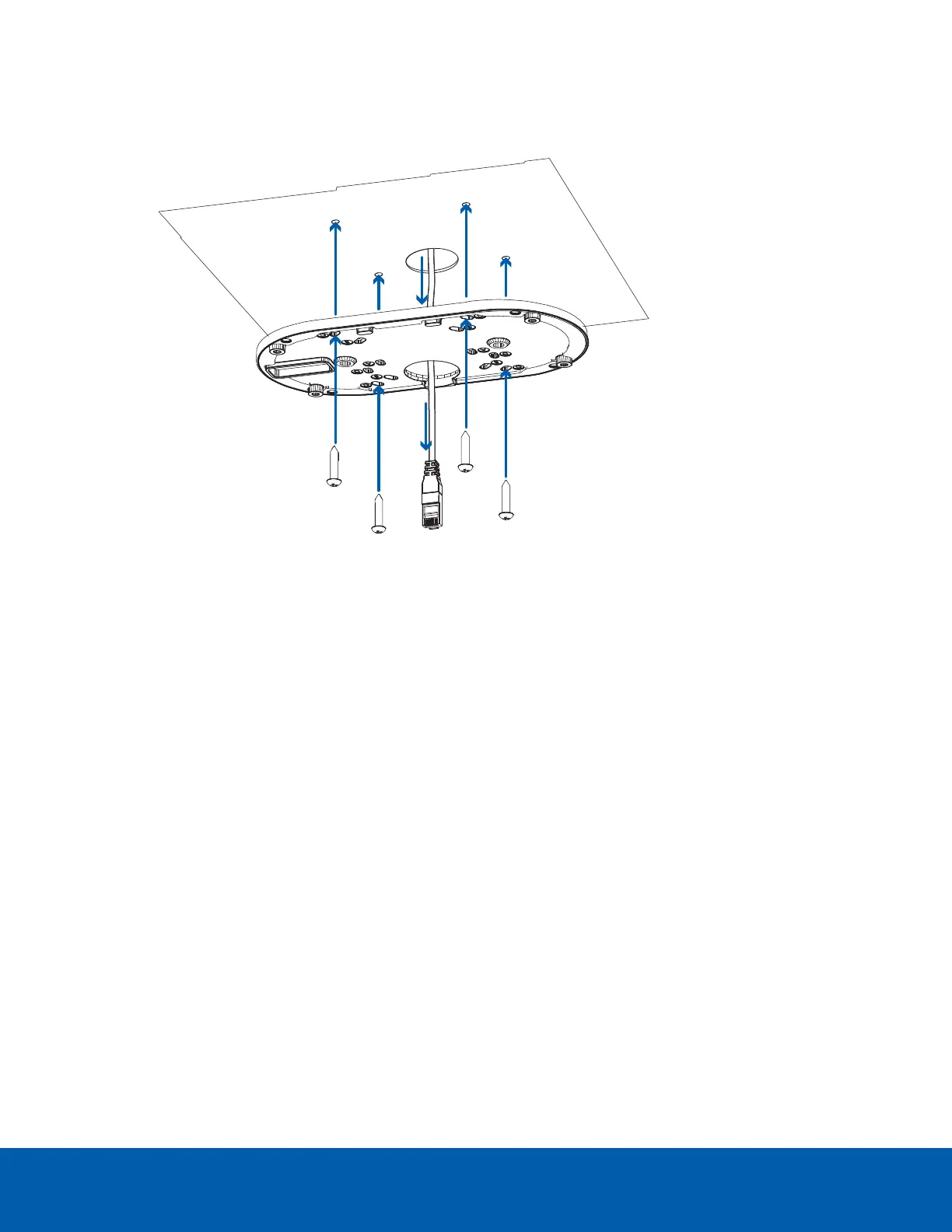

5. Align the cable entry hole and mounting holes on the mounting plate adapter with the holes drilled
into the mounting surface. Hold the mounting plate adapter to the mounting surface and secure it in
place using the provided self-tapping screws.
6. Pull the required cables through the rubber sealing grommet. For more information, see Inserting
Cables through the Sealing Grommet on page11.
7. Push the rubber sealing grommet with the required cables into the cable entry hole on the camera
base. The thread around the grommet should line up with the cable entry hole.
The rubber grommet should be pressed firmly into the cable entry hole to create a seal.
8. Push the camera base into the mounting plate adapter so that the 4 captive screws in the camera base
align with the mounting points on the adapter.
Mounting the Camera to a Ceiling or Wall 14
