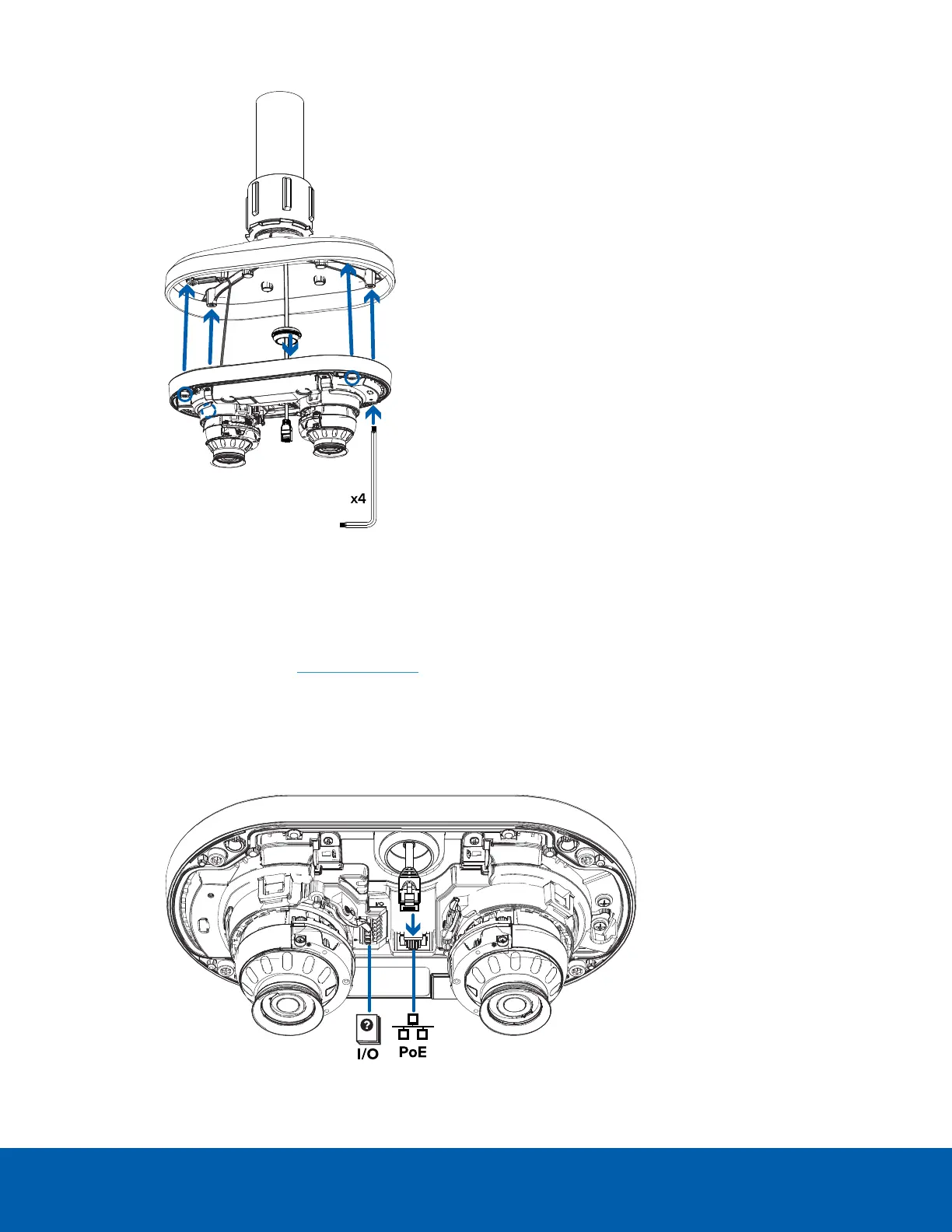

5. Use the star-shaped screwdriver to tighten the 4 captive screws and secure the camera to the NPT
adapter.
Connecting Cables
Refer to the diagrams in the Overview section for the location of the different connectors and status LEDs on
the camera base.
1. Connect a network cable to the camera's Ethernet port (RJ-45 connector).
Power the camera using the network cable with Power over Ethernet (PoE) IEEE 802.3af Class 3. The
status LEDs turn on when the camera receives power.
Connecting Cables 31
