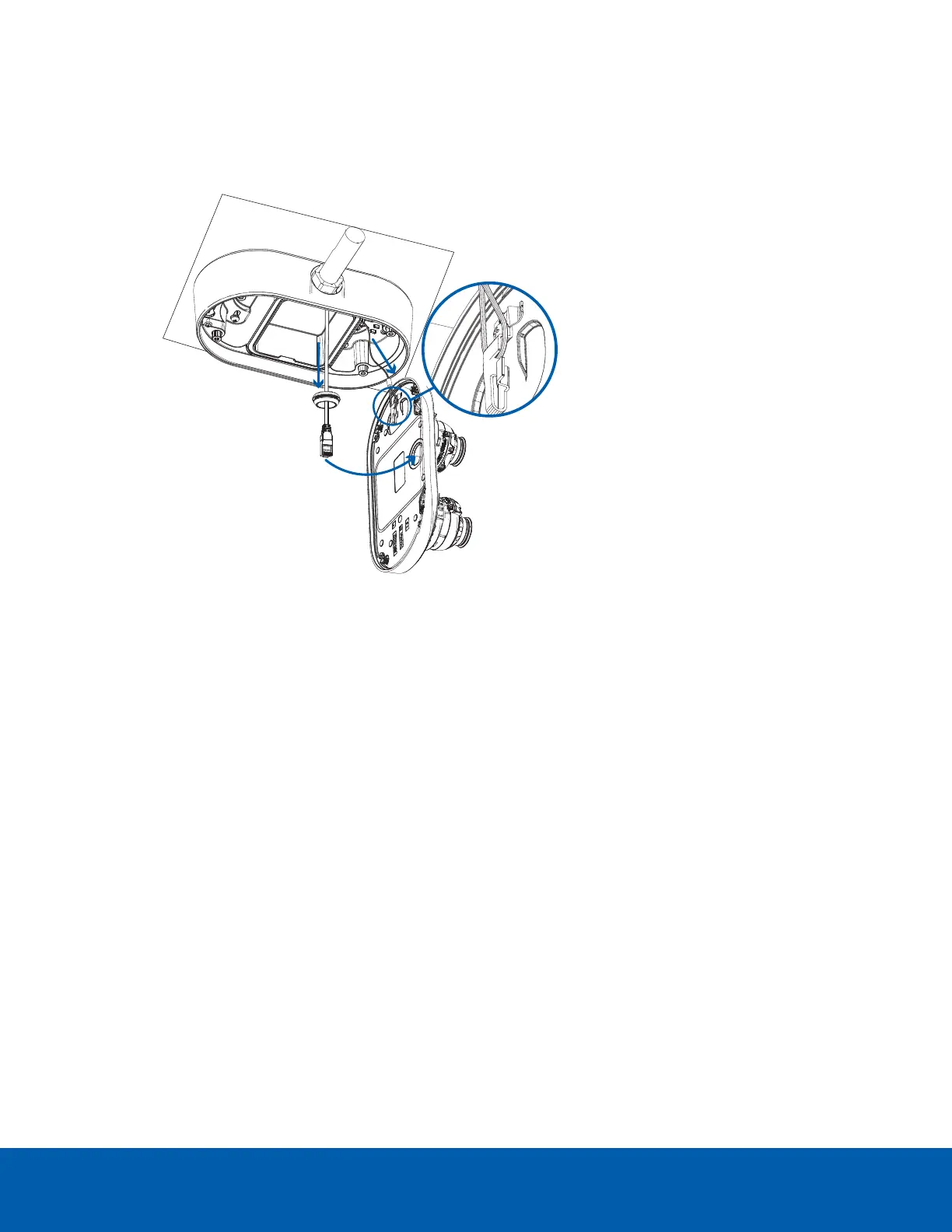

Installing the Camera Base into the Junction Box
After you install the junction box, mount the camera base into it.
1. Attach the lanyard on the junction box to the anchor on the camera base.
2. Pull the required cables through the cable entry hole on the camera base.
3. Push the rubber sealing grommet with the required cables into the cable entry hole on the camera
base. The thread around the grommet should line up with the cable entry hole.
The rubber grommet should be pressed firmly into the cable entry hole to create a seal.
4. Push the camera base into the junction box so that the 4 captive screws in the camera base align with
Installing the Camera Base into the Junction Box 21
