Using the Junction Box Mounting Adapter
If the camera needs to be installed with the optional junction box, install the junction box mounting adapter
onto the mounting surface first.

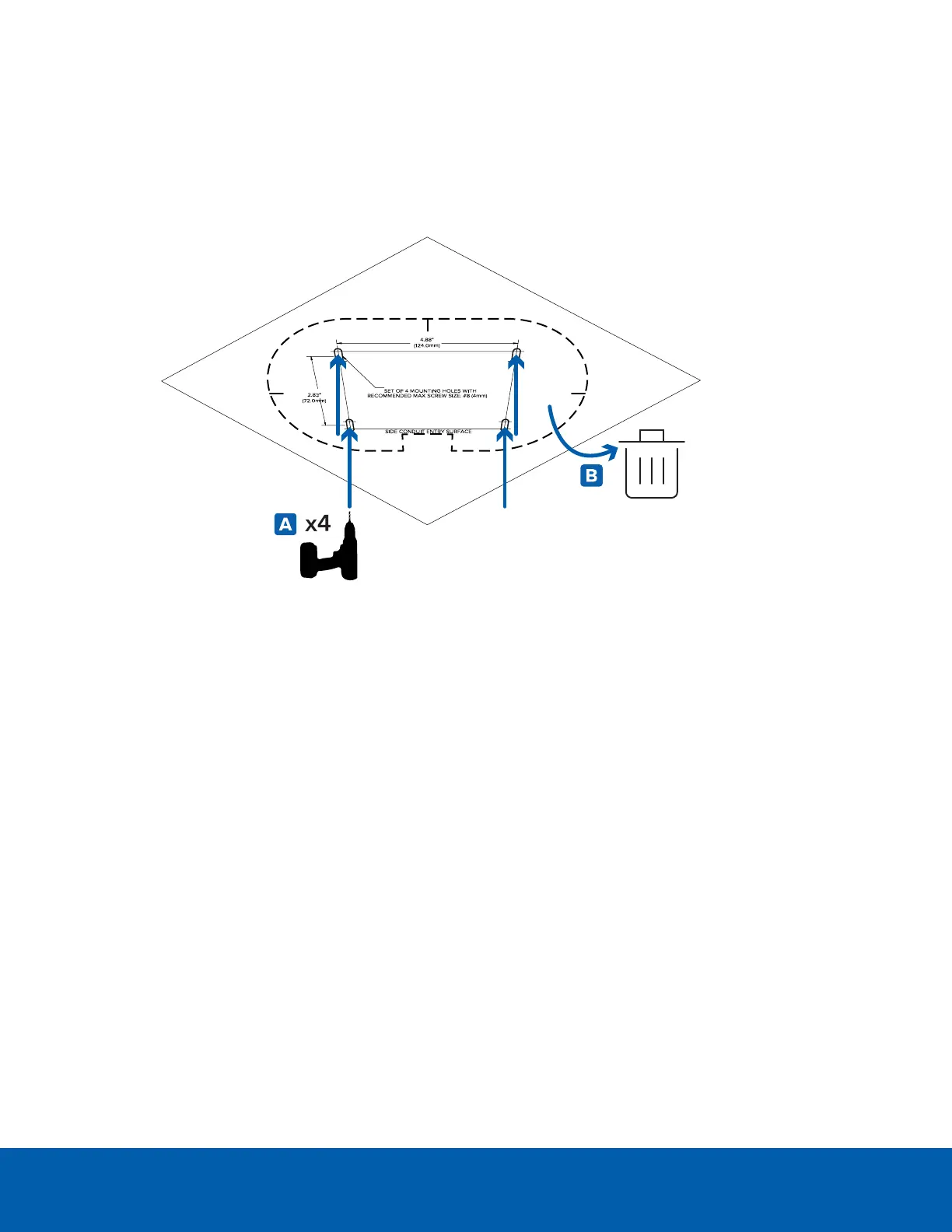

1. Using the Junction Box Mounting Template, drill 4 pilot holes into the mounting surface for the
mounting screws.
2. Align the conduit for the cables with the side conduit entry surface area on the mounting template.
3. Hammer the supplied plastic anchors into the holes.
4. Align the mounting holes junction box with the holes drilled into the mounting surface. Hold the
junction box adapter to the mounting surface and secure it in place using the provided self-tapping
screws.
Using the Junction Box Mounting Adapter 19
