Mounting the Camera to a Ceiling or Wall
Perform the following steps if mounting the camera directly to the surface and the cables will come from
inside the mounting surface. Use this procedure on surfaces that can be easily drilled into, and when the
cables should be kept out of sight.

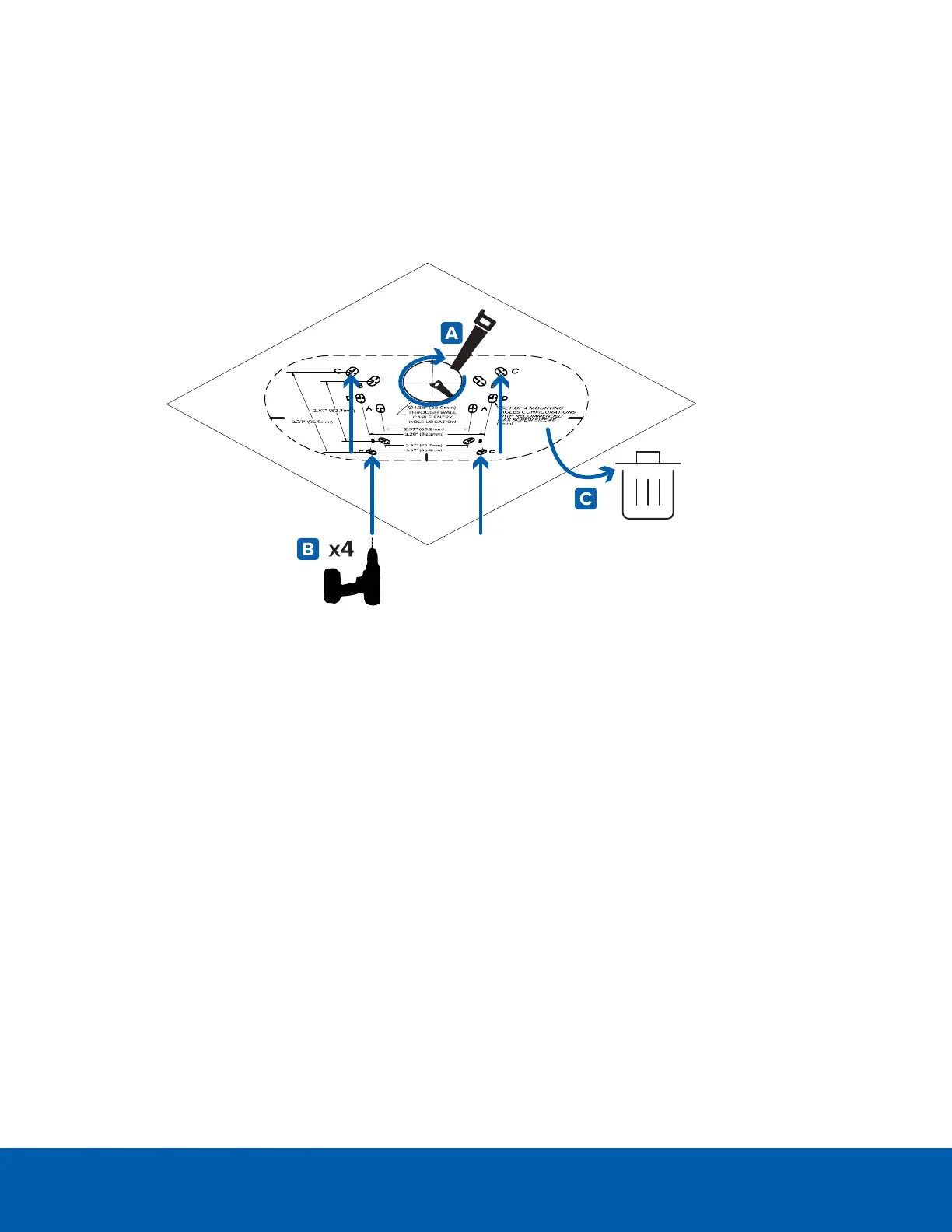

1. Using the Surface Mounting Template, drill 4 pilot holes into the mounting surface for the mounting
screws.
2. Hammer the supplied plastic anchors into the holes.
3. Cut the cable entry hole into the mounting surface with a drywall saw or hole saw.
4. Pull the required cables through the mounting surface and through the cable entry hole in the
mounting plate adapter.
Mounting the Camera to a Ceiling or Wall 13
