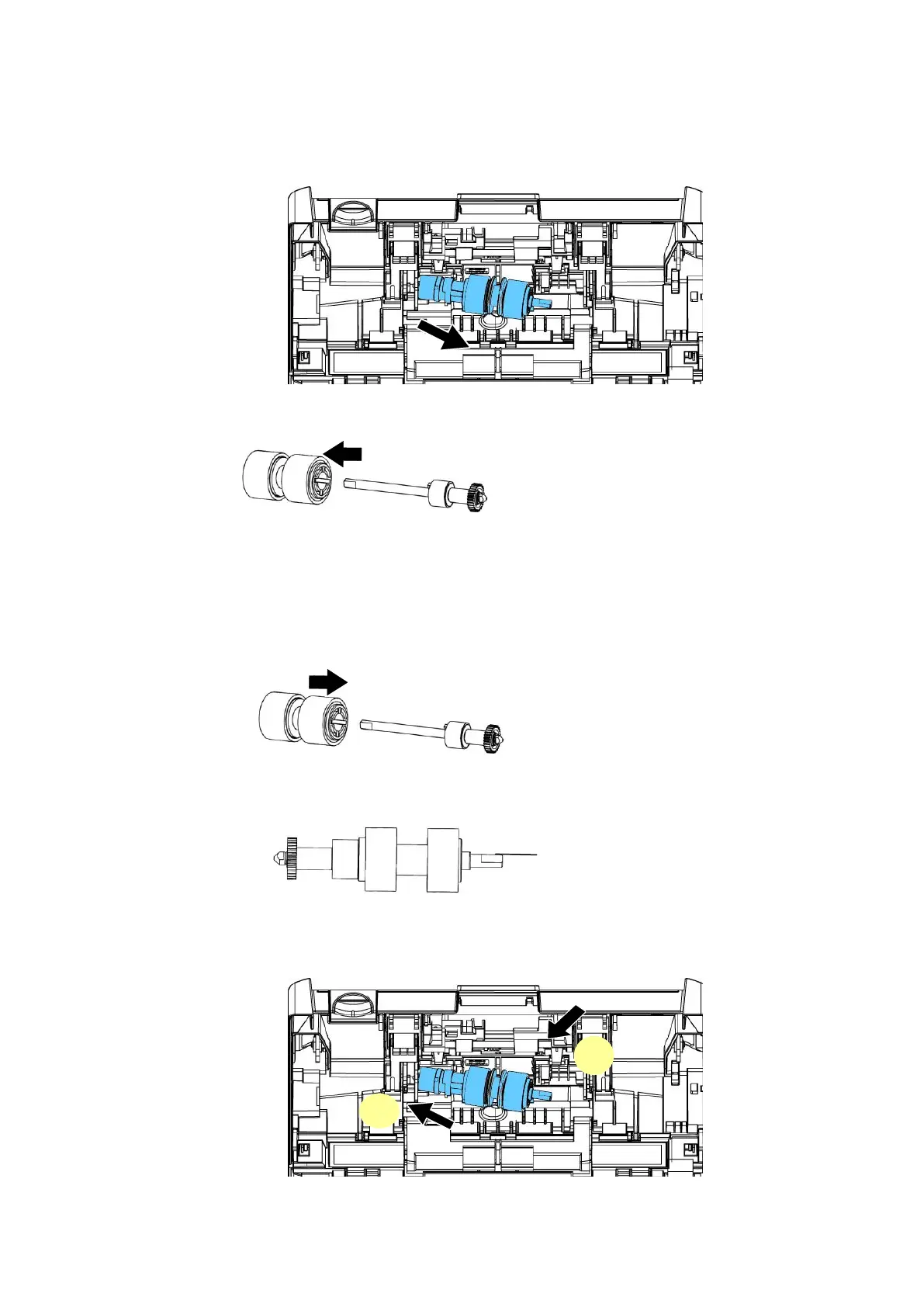

4. Press the right end of the Friction Roller externally to detach it from the slot
and then detach the left end from its hole.
5. Remove rollers from the shaft.
Reassembling Procedure
1. Insert the new rollers to the shaft.
2. Grab the right end of the reverse roller (flat side facing Up) and insert it to its
original place.
3. Insert the left end of the Reverse Roller to the hole of its original place.
4. Insert the right end of the Reverse Roller to its slot.
