Avocent AUTOVIEW 3016 - Figure 2.1: Basic Autoview 3016 Switch Configuration

4 AutoView 3008/3016 Switch Installer/User Guide

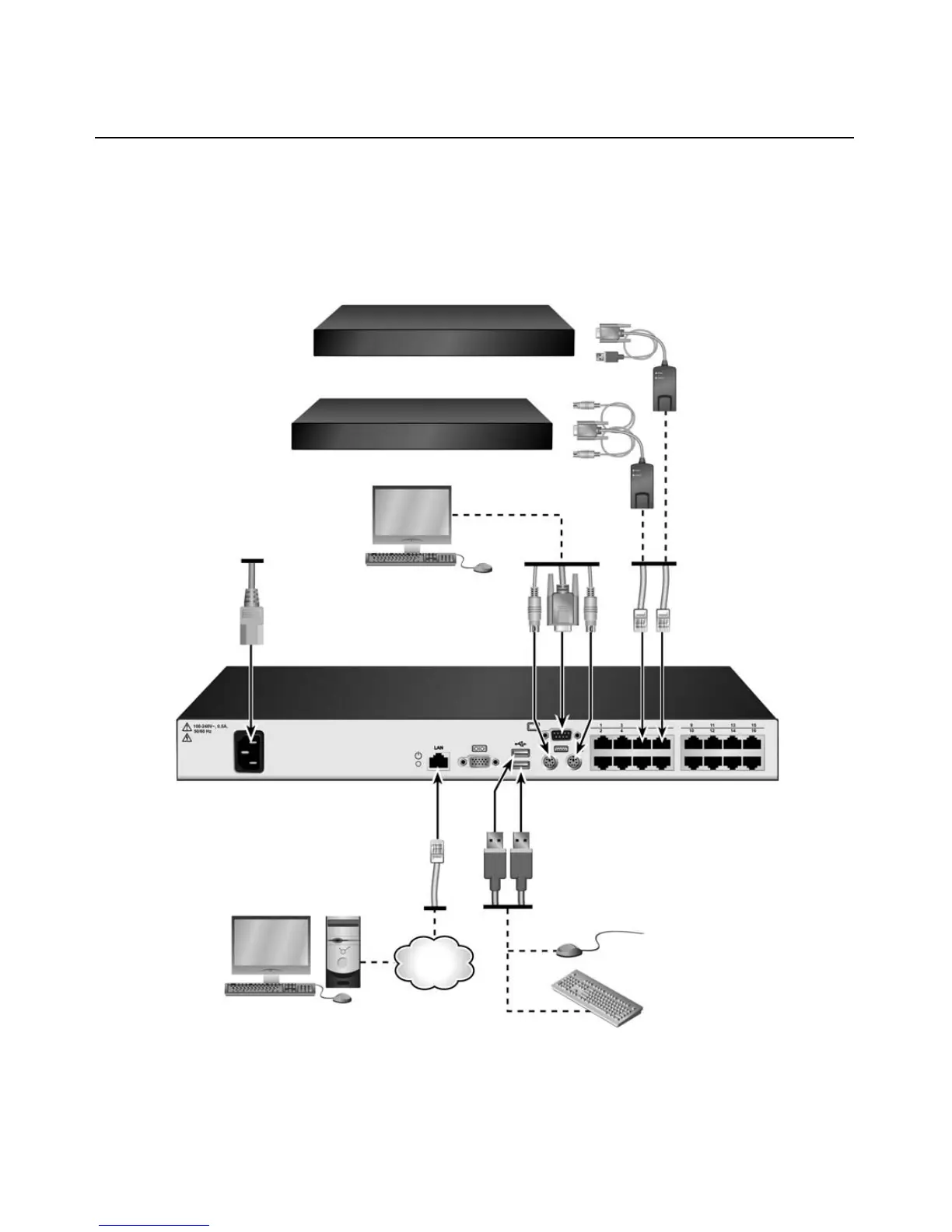

Figure 2.1 illustrates a basic configuration for the AutoView 3016 switch. Descriptions follow in
Table 2.1.
Figure 2.1: Basic AutoView 3016 Switch Configuration
4
3
1
2
5
6
7
8
9
