18 DSR Switch Installer/User Guide

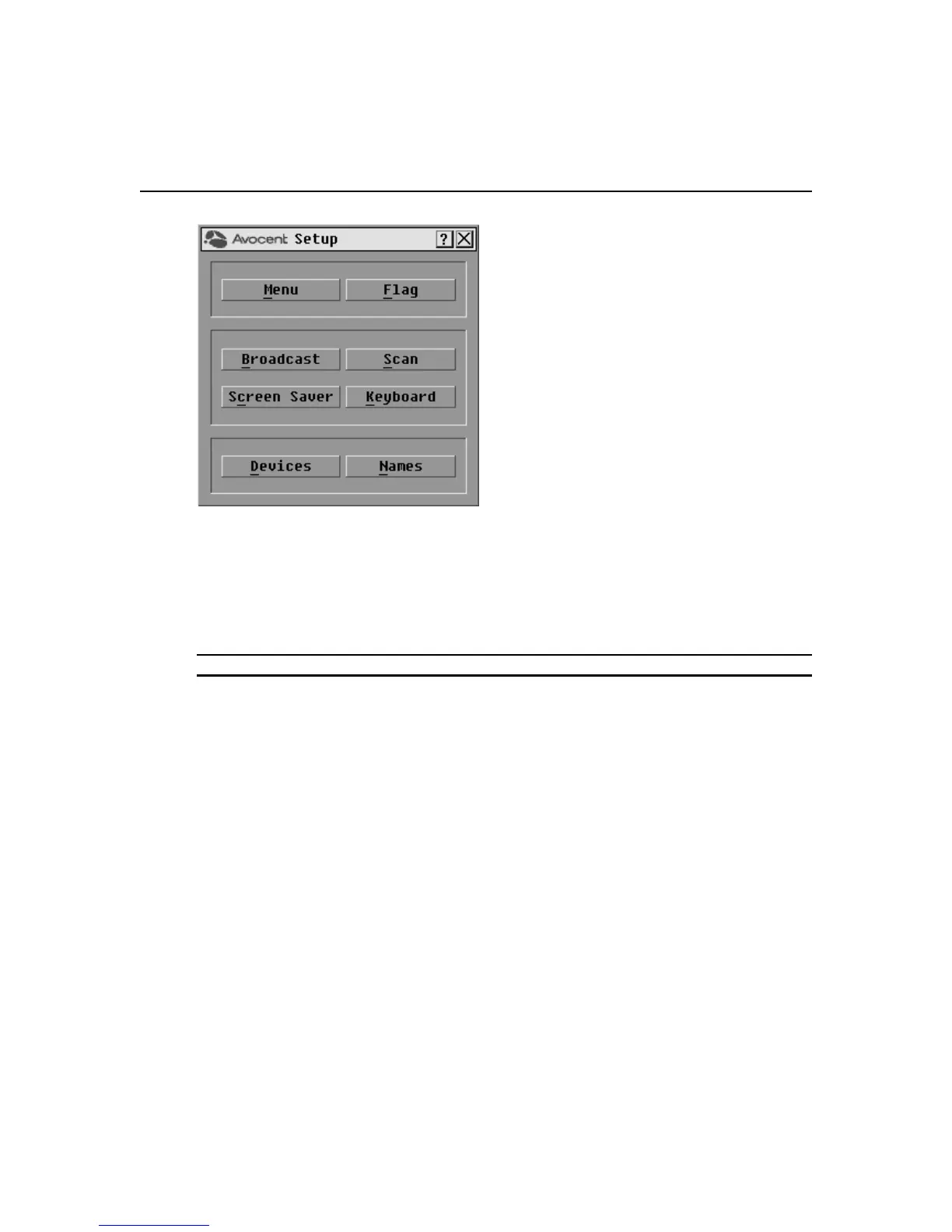

Figure 3.2: Setup Dialog Box
Assigning target device names
Use the Names dialog box to identify target devices by name rather than by port number. The
Names list is always sorted by port order. You can toggle between displaying the name or the EID
number of each DSRIQ module, so even if you move the target device to another port, the name
and configuration will be recognized by the switch.
NOTE: If a target device is turned off, its respective DSRIQ module will not appear in the Names list.
To access the OSCAR interface Names dialog box:
1. If the OSCAR interface is not open, press
Print Screen. The Main dialog box appears.
2. Click Setup - Names. The Names dialog box appears.
