20 DSR Switch Installer/User Guide
To assign names to target devices:
1. In the Names dialog box, select a target device name or port number and click Modify. The
Name Modify dialog box appears.

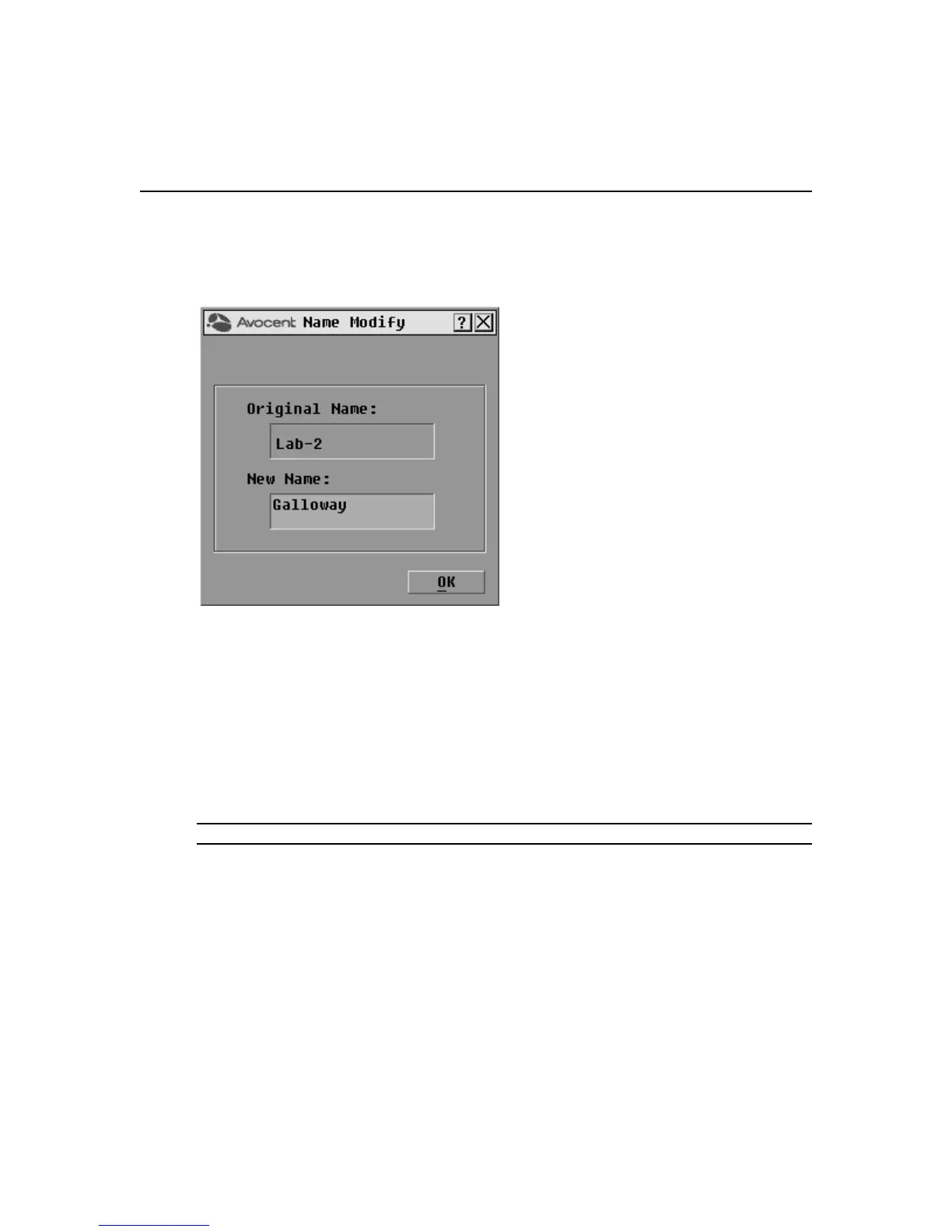

Figure 3.4: Name Modify Dialog Box
2. Type a name in the New Name box. Names of target devices may be up to 15 characters long. Legal
characters include: A-Z, a-z, 0-9, space and hyphen.
3. Click OK to transfer the new name to the Names dialog box. Your selection is not saved until
you click OK in the Names dialog box.
4. Repeat steps 1-3 for each target device in the system.
5. Click OK in the Names dialog box to save your changes.
-or-
Click X or press
Escape to exit the dialog box without saving changes.
NOTE: If a DSRIQ module has not been assigned a name, the EID is used as the default name.
To list target devices alphabetically by name:
Press
Alt+N or click Name in the Main dialog box.
