22 DSR Switch Installer/User Guide

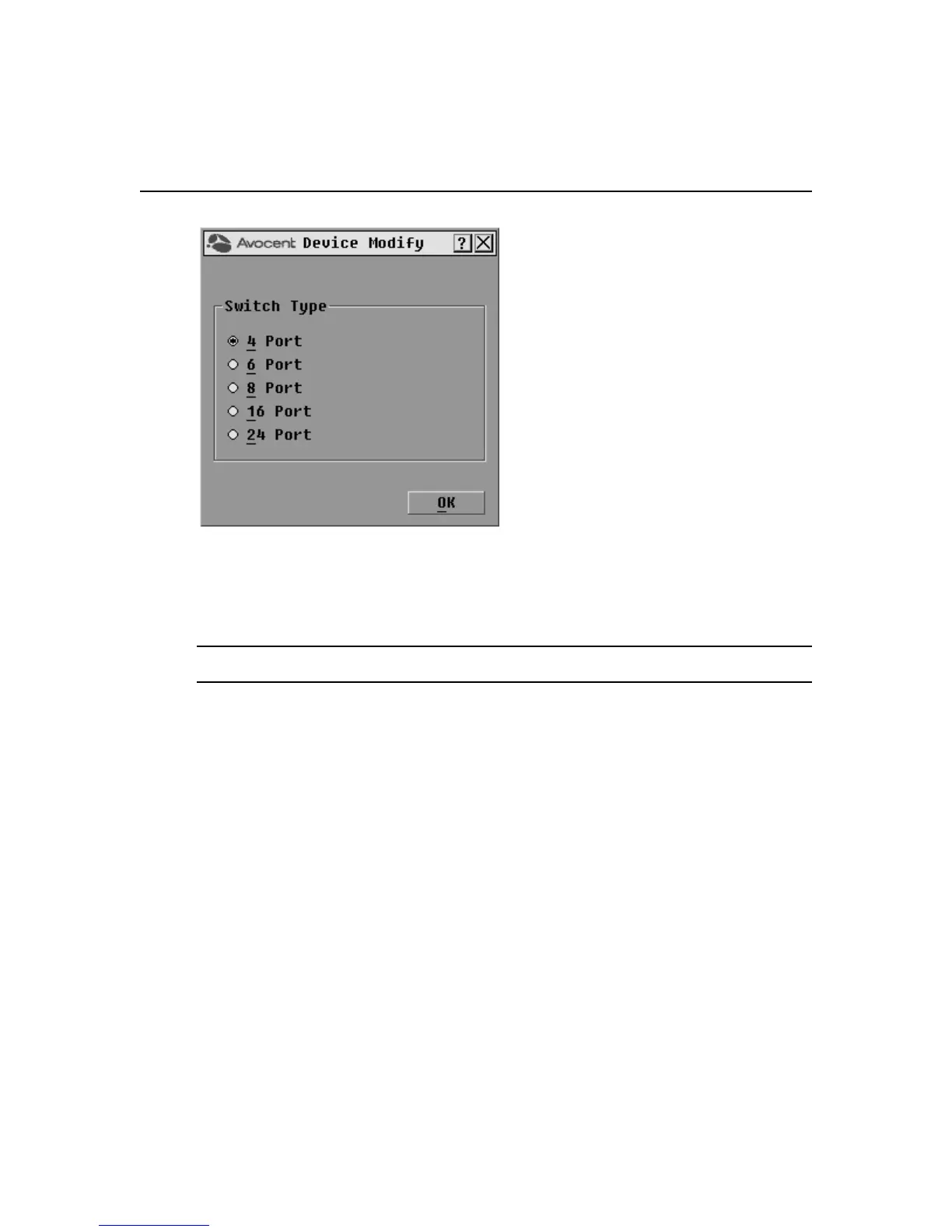

Figure 3.6: Device Modify Dialog Box
3. Choose the number of ports supported by your switch and click OK.
4. Repeat steps 1-3 for each port requiring a device type to be assigned.
5. Click OK in the Devices dialog box to save settings.
NOTE: Changes made in the Device Modify dialog box are not saved until you click OK in the Devices
dialog box.
Changing the display behavior
Use the Menu dialog box to change the display order of target devices and set a Screen Delay Time
for the OSCAR interface. The display order setting alters how target devices will display in several
dialog boxes, including Main, Devices and Broadcast.
To access the OSCAR interface Menu dialog box:
1. Press
Print Screen to launch the OSCAR interface. The Main dialog box appears.
2. Click Setup - Menu in the Main dialog box. The Menu dialog box appears.
