PAGE 118
Technical Data
A5 TECHNICAL DATA MAGIC TH2 KEYPAD
A5.1 Keypad
Matrix: 8 x 6
(32 keys 4 quad keys, 4 double keys, 24 single
keys)

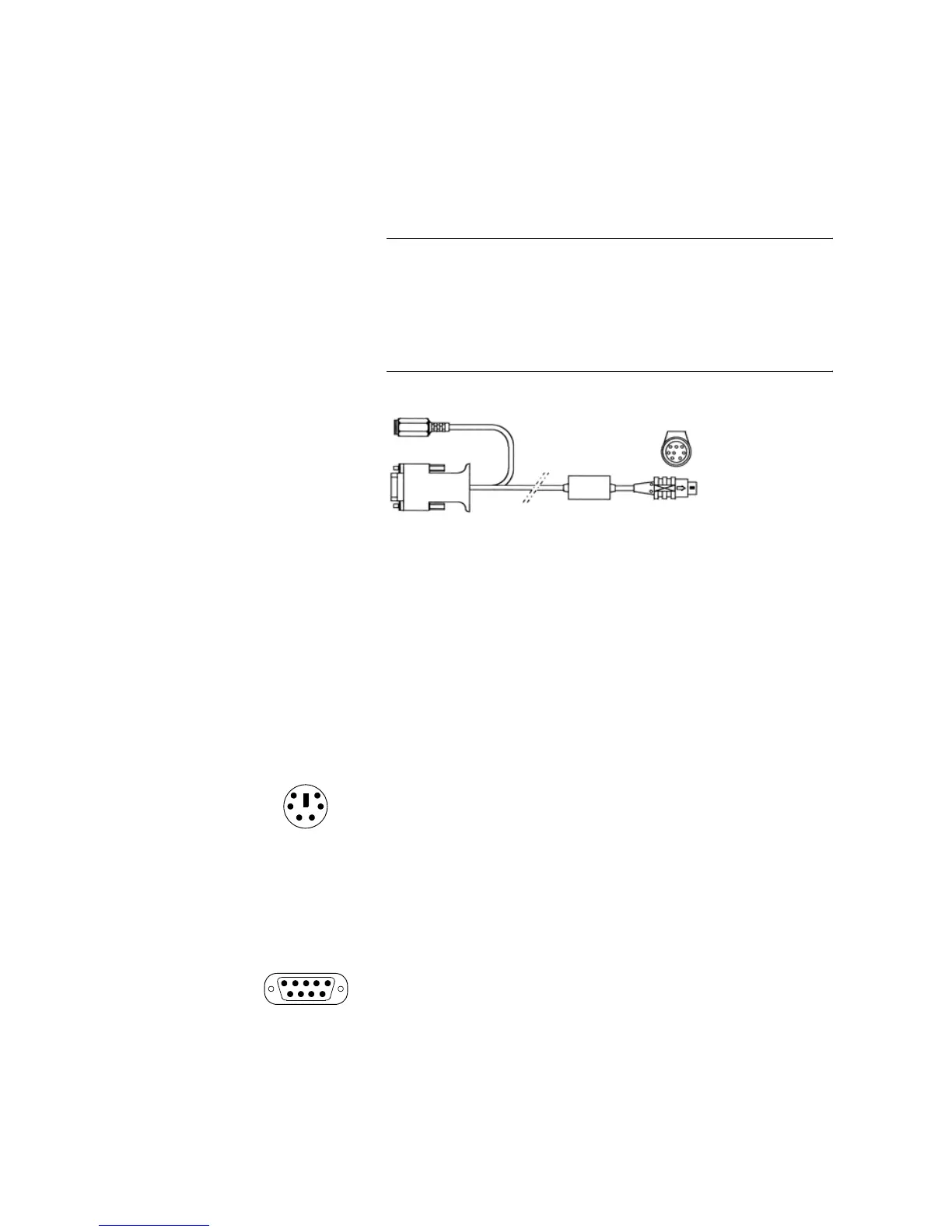

FIG. 66 CONNECTING CABLE MAGIC SYSTEM - KEYPAD
Protocol:
9600 Baud
no parity
Connection to external power supply adapter (1):
6-pol. Mini-DIN connector
Assignment:
Pin 3: GND (Ground)
Pin 4: +5V
Connection to MAGIC TH2 (2):
9-pol. SUB-D connector
Assignment:
Pin 2 RXD
Pin 3 TXD
Pin 5 GND (Ground)
to MAGIC TH2 Hybrid
to power supply adapter
to Keypad
(1)
(2)
(3)
1
4
2
5
3
6
5
96
1
