PAGE 15
Construction
1 CONSTRUCTION
The functions of the MAGIC TH2 are implemented in a single unit. The sys-
tem is designed for mounting in a half 19" rack(1 U).
Optionally, a dual mounting kit is available (MAGIC TH2 DUAL 19“ Mount-
ing Kit ID: 800202) for installing two MAGIC TH2 systems next to each other.

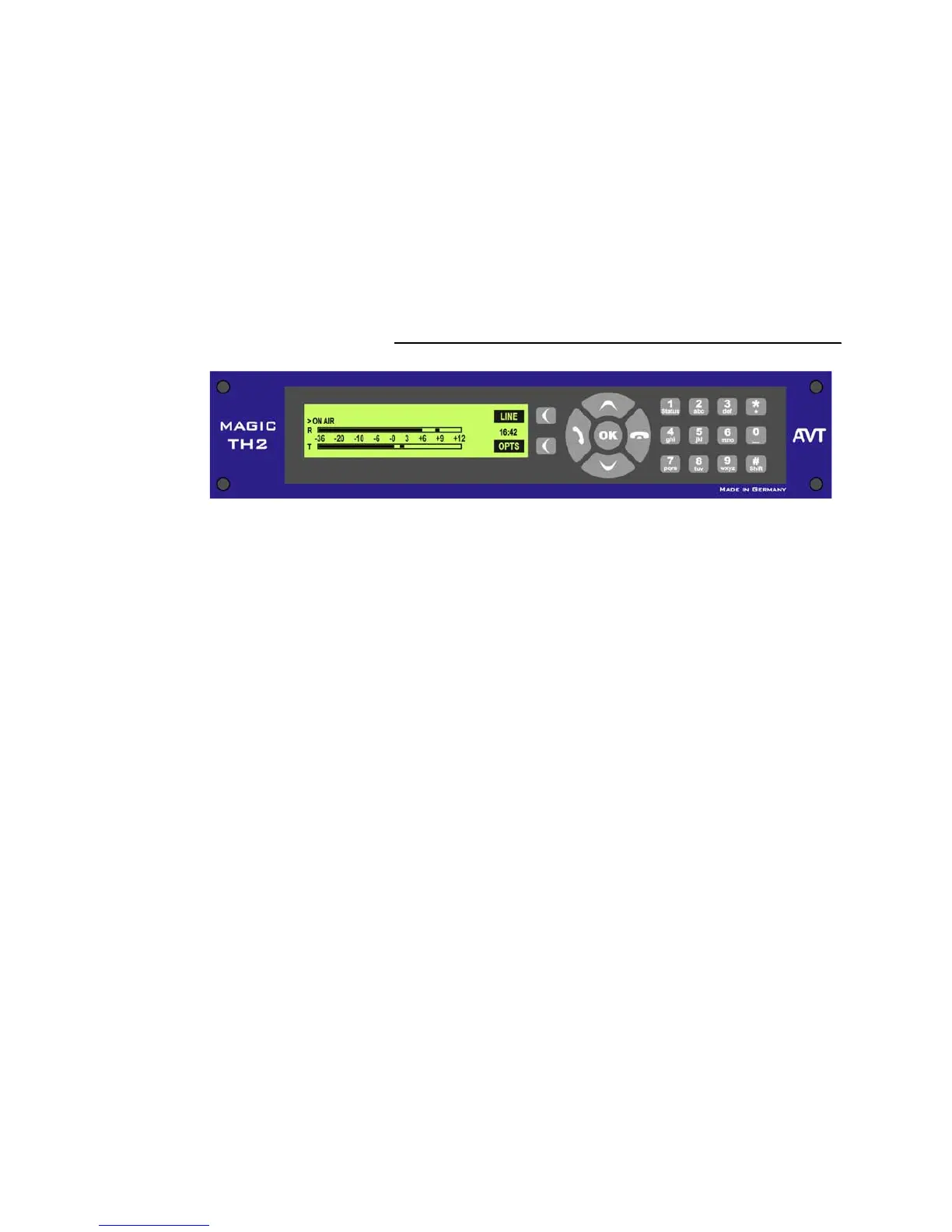

FIG. 1 FRONT VIEW: MAGIC TH2 TELEPHONE HYBRID
