Axel CANDPSX - Checking the Octets of Configuration Telegram

CANDPSX user manual rev 2 Page 33 of 42
____________________ _

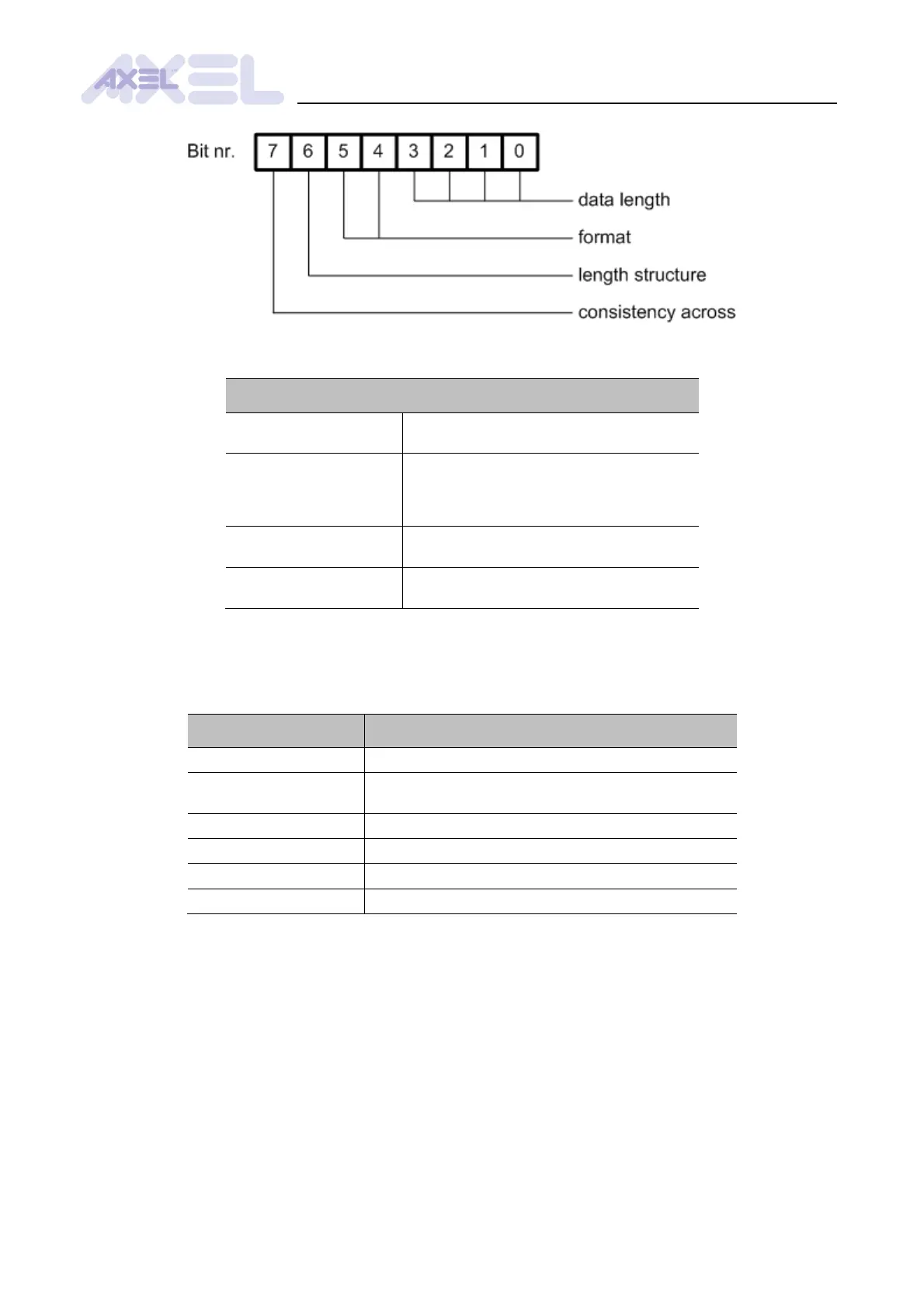

Fig. .5: Structure of an octet of the configuration telegram.
Elements of an octet of the configuration telegram
Data length
0000 = 1 byte / word
1111 = 16 bytes / words
Format
00 = special identifier format
01 = input
10 = output
11 = input/output
Length structure
0 = byte
1 = word
Consistency across
0 = byte or word
1 = total length
8.2.2 Checking the octets of configuration telegram
For verify the configuration telegram read the parameters from 2038h to 203Fh:
Elemento
Valore
Parameter
2038h a 203Fh
Logic View menu
All parameters/System/Profibus-DP/Configuration
telegram
Data type
8 bit unsigned int
Measurement unit
--
Value
see § .32
Access
Read-only
