Page 10 AXIS 233D Installation Guide
Power connections
Power can be supplied to the camera by the following methods:
• Connect the supplied indoor power adapter to the power connector block and
attach it to the camera casing. Note that this indoor power adapter provides
power for the camera only.
• Connect an outdoor power supply to the power connector block and attach it to
the camera casing. For information on available outdoor power supplies, please
visit the Support pages at http://www.axis.com/techsup/
The power connector block supports both AC and DC input power.

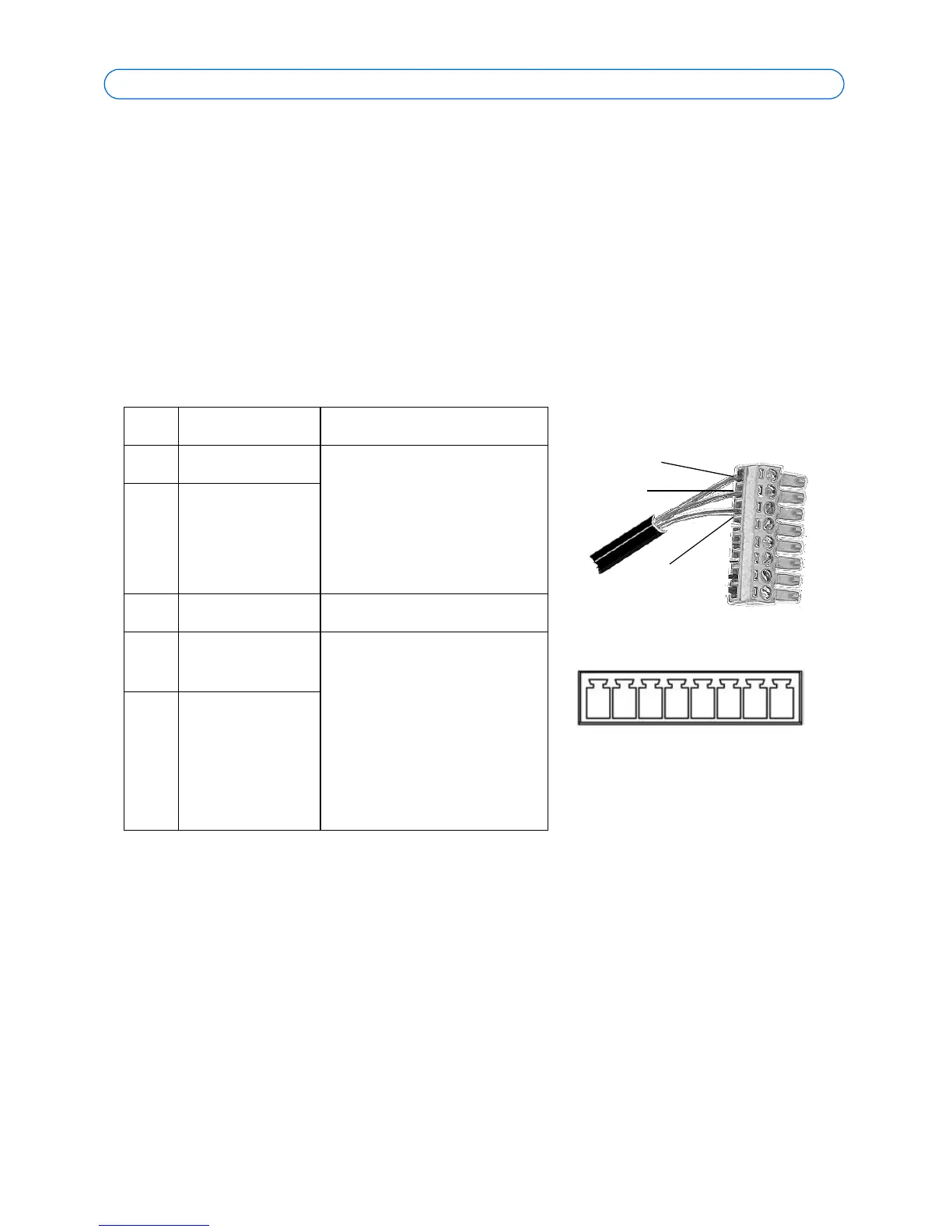

Power connector block pin assignment table
Pin Function
1AC AXIS PS-R (or 22-40 VDC)
max 20W power consumption.
-or-
AXIS PS-24 (or 18-30 VAC)
max 25VA power consump-
tion
2AC or DC+
3 GND/DC-
4Ext.Vout = 12V/
200mA
Note:
For information about
connecting auxiliary
power and audio see
Unit connectors, on
page 17.
5-8 Audio
AC
GND/DC-
Power/Audio
12 3
1
2
3
AC/DC+
