Page 8 AXIS 233D Installation Guide

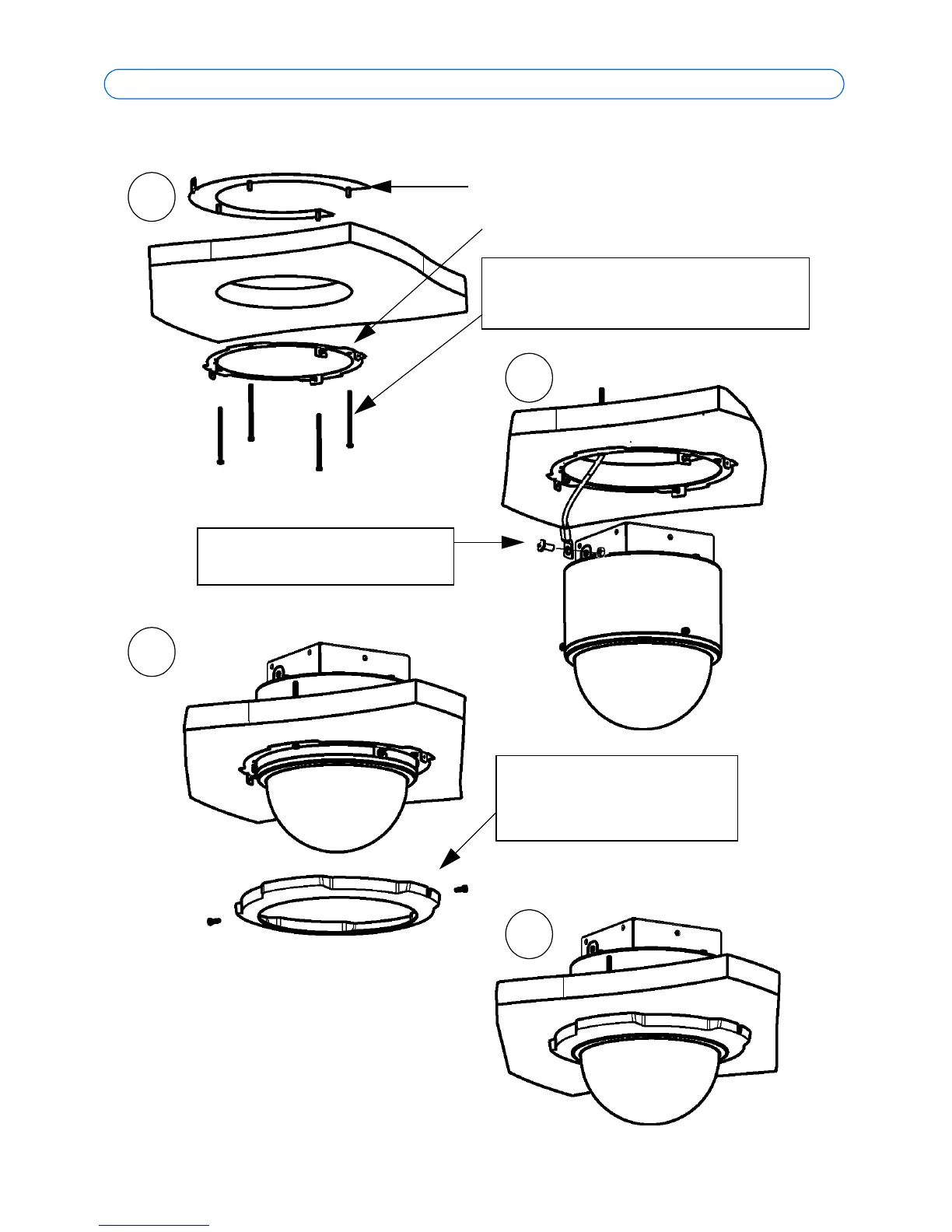

Drop Ceiling Mounting
Attach ceiling mount brackets
with 4 long M3 screws.
Attach safety wire
Attach decorative ring
with 2 M3 screws
Inner mounting ring
Outer mounting ring
A
B
C
D
with an M4 screw & nut
