AXIS 233D - I/O terminal Connectors
Power connections
Power can be supplied to the camera by the following methods:
• Connect the supplied indoor power adapter to the power connector block and
attach it to the camera casing. Note that this indoor power adapter provides
power for the camera only.
• Connect an outdoor power supply to the power connector block and attach it to
the camera casing.
For information on available outdoor power supplies, please visit the Support
pages at http://www.axis.com/techsup/
The power connector block supports both AC and DC input power.
!

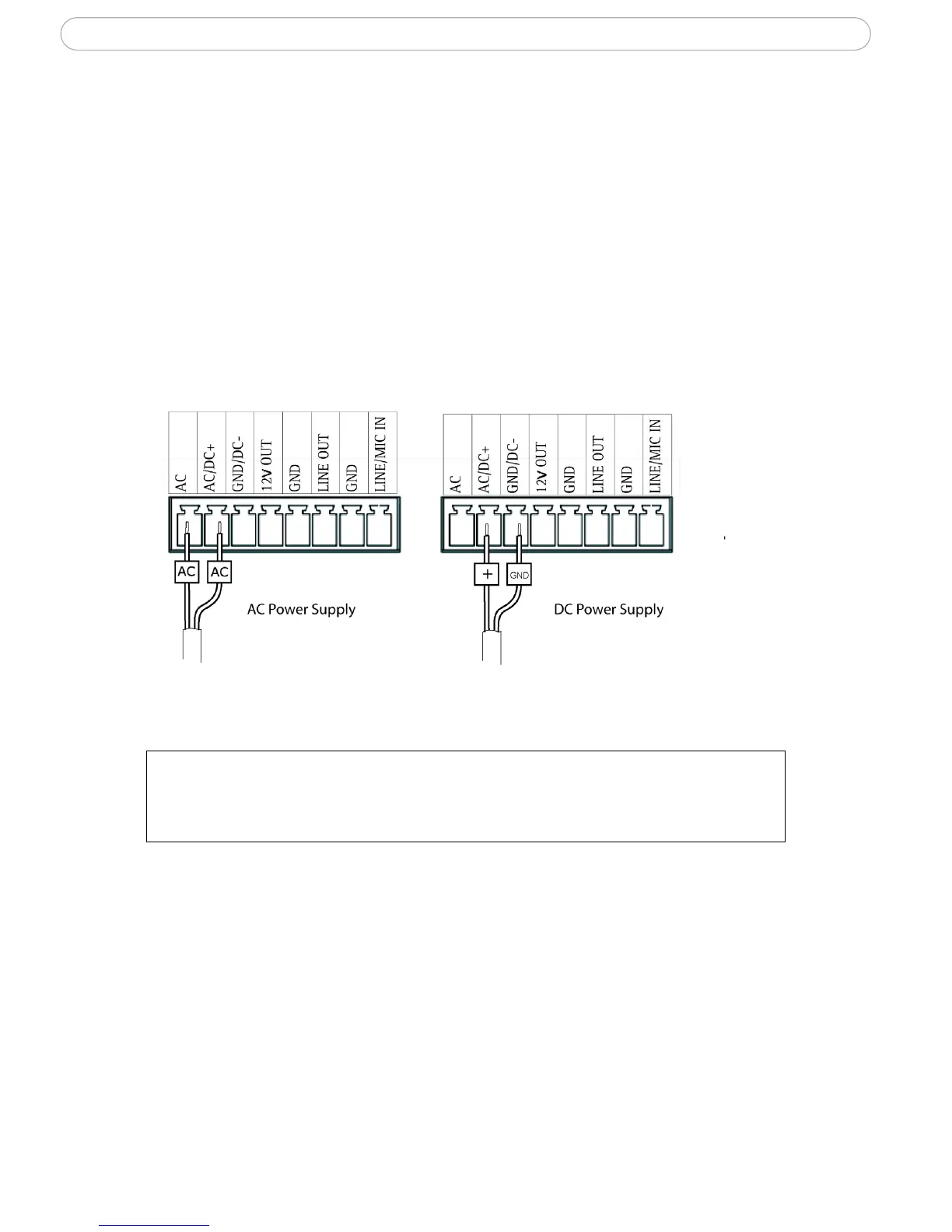

IMPORTANT! - When using a DC power supply (included with this product), it is
very important that it is connected correctly to the power block. Make sure the
wire labeled with “
+” is connected to pin 2 and the remaining wire GND to pin 3.
With an AC power supply either wire can be connected to pin 1 or 2.
