Azbil Micro Flow CMS9500 - Page 20

12
Chapter 3. Mounting and Wiring
(2) Mount the flowmeter on the dedicated mounting bracket, and
then attach the bracket with four screws from the top of the
bracket. Mounting bracket model number
81446628-001: For CMS9500/0002/0005/0020/0050
81446721-001: For CMS0200
81446856-001: For CMS0500
Mounting bracket
63
78
4.5
48
58
4.5

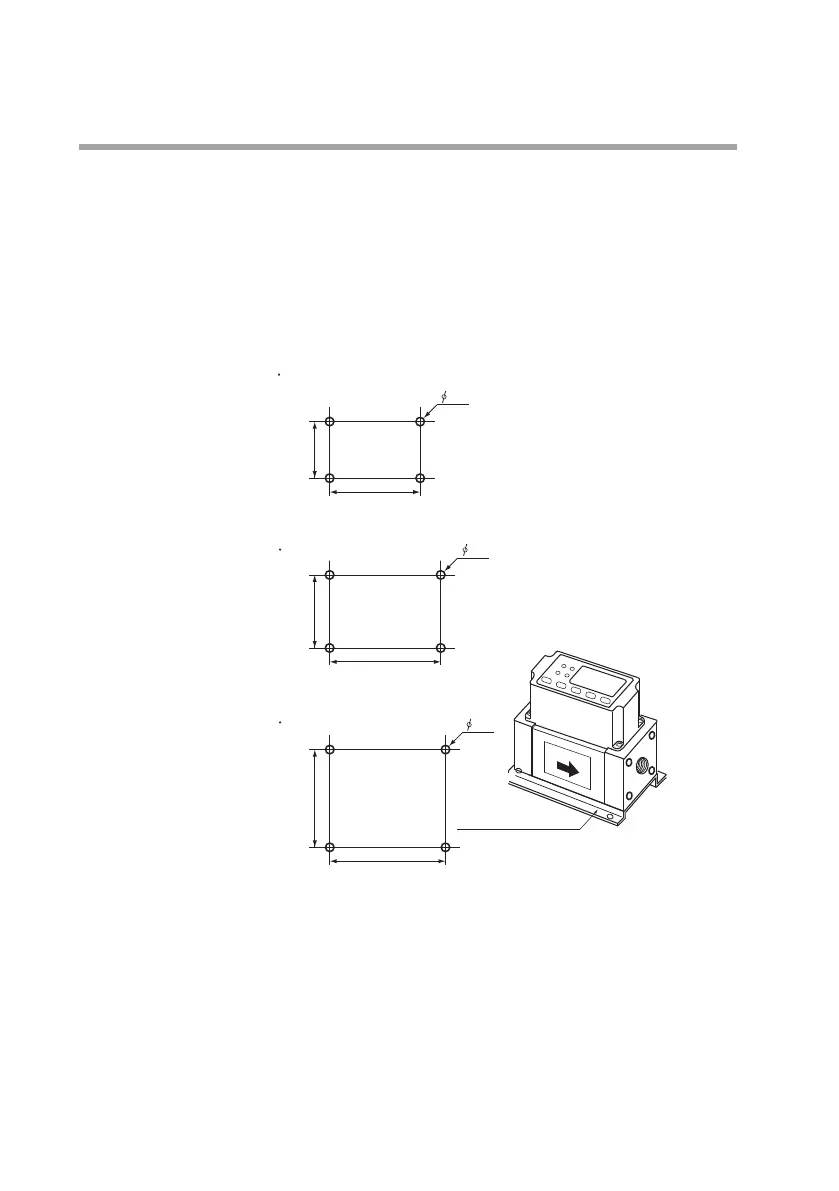

Hole dimensions when mounting bracket is used
75
80
5.5
Unit: mm
CMS9500/0002/0005/0020/0050
CMS0200
CMS0500
