3-3
Chapter 3. MOUNTING AND WIRING
z

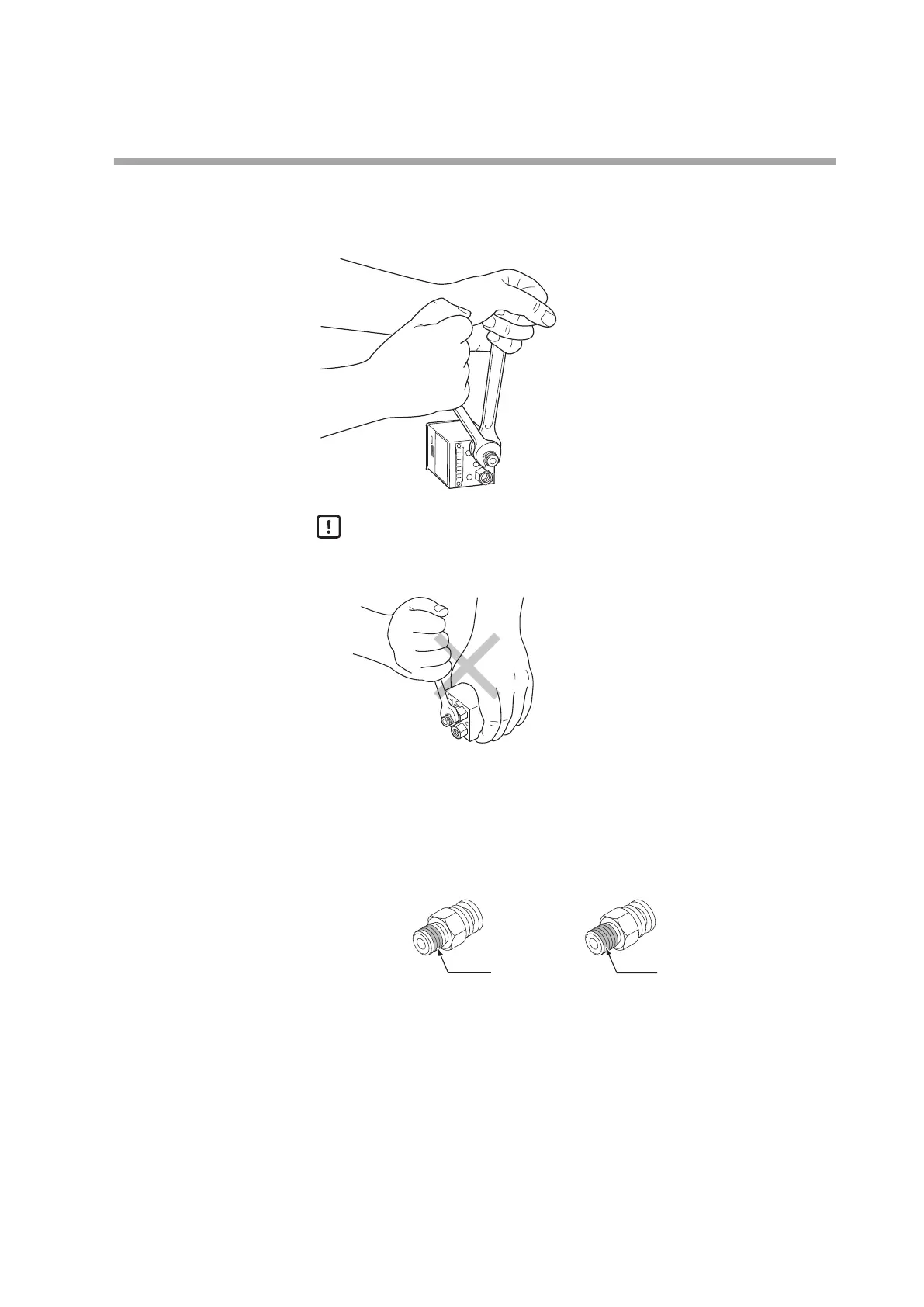

Joint connection
• Connect the joint by holding the hexagonal section of the pipe connection port of
the body with a spanner (or wrench).
Handling Precautions
• Do not hold the case of the controller with your hand when screwing the
joint into the connection port. Doing so might deform the body.
Incorrect
• Screw the joint with an appropriate torque as recommended by the
joint manufacturer. Exceeding the torque limits will cause damage the
connection port.
•
Apply appropriate amount of sealant. Do not coat the top most thread of the
screw. Remove any dirt or burrs from inside the joint.
Good example
Bad example
Sealant
Sealant
To Next Page
