Azbil MPC0002 User Manual

3-7
Chapter 3. MOUNTING AND WIRING
z

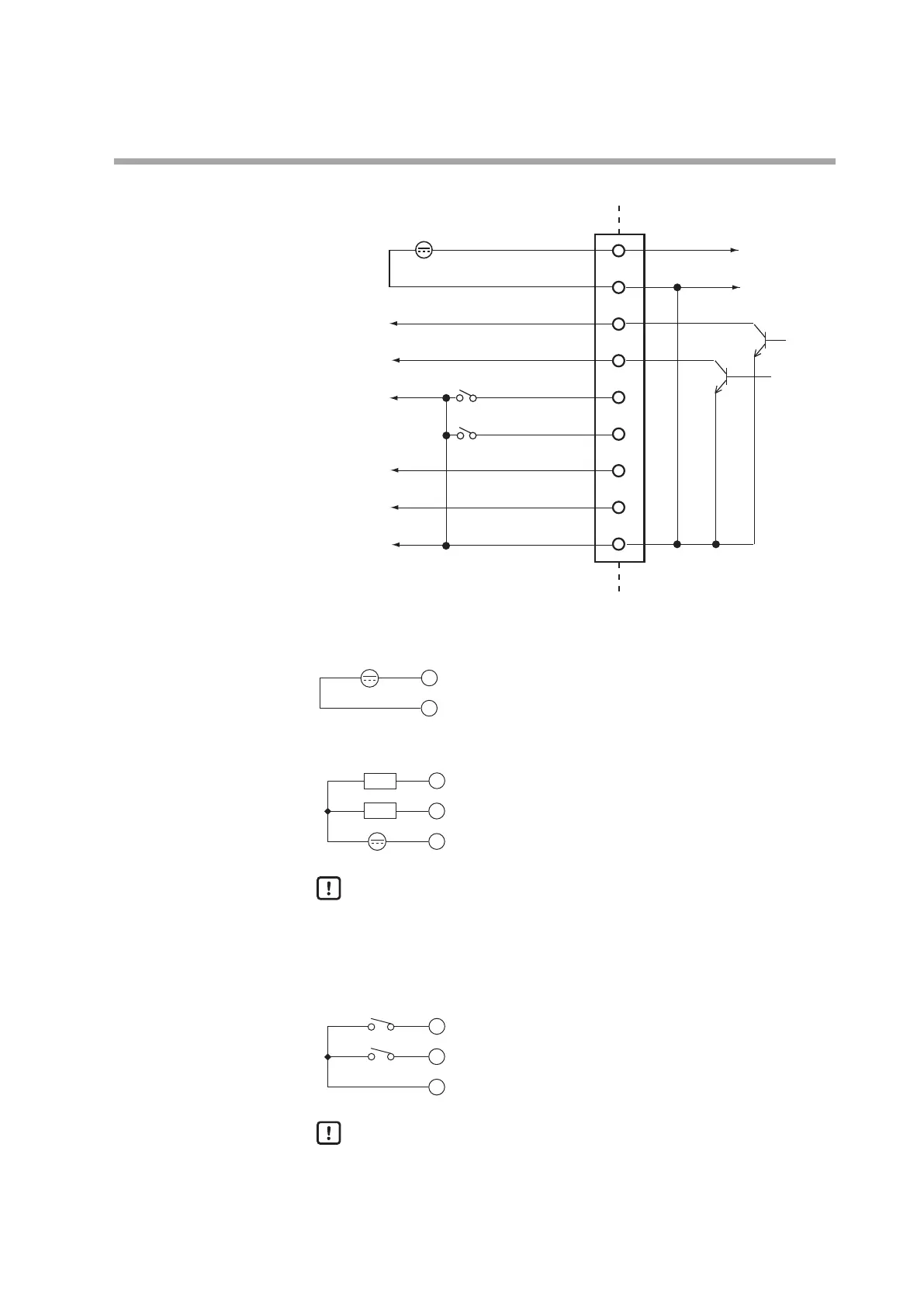

Wtiring example
1
2
3
4
5
6
7
8
9
POWER (24 V)
POWER GND
EV1
EV2
DI1
DI2
AI / DA
AO / DB
SIGNAL GND
24 V DC
Internal circuit
+
-
Analog setting voltage input / DA
Analog flowrate voltage output / DB
Analog input/output common / SG
Event output 1
Event output 2
(Output common)
+
-
z Power supply
1
2
POWER (24 V)
POWER GND
24 V DC
- +
z Event output
Load
3
4
Event output 1
Event output 2
SIGNAL GND
+ -
9
Load
Handling Precautions
• Be sure that the event output does not exceed the specified output rating
of this controller. When driving a relay, use the relay with a built-in diode
for coil surge absorption. Doing so might cause faulty operation.
z External switch input
5
6
External switch input 1
External switch input 2
SIGNAL GND
9
Handling Precautions
• When using a relay for external switch input, always use a relay designed
for micro-current use (with gold contacts).
Failure to do so cold cause faulty contact, resulting tn malfunction.
