Model MTG11A/18A/11B/18B/14C System configuration and structure Azbil Corporation
1-14 Model MTG11A/18A, MTG11B/18B, MTG14C
Terminal box
Description
The terminal box houses the output signal terminals.
Names of various parts

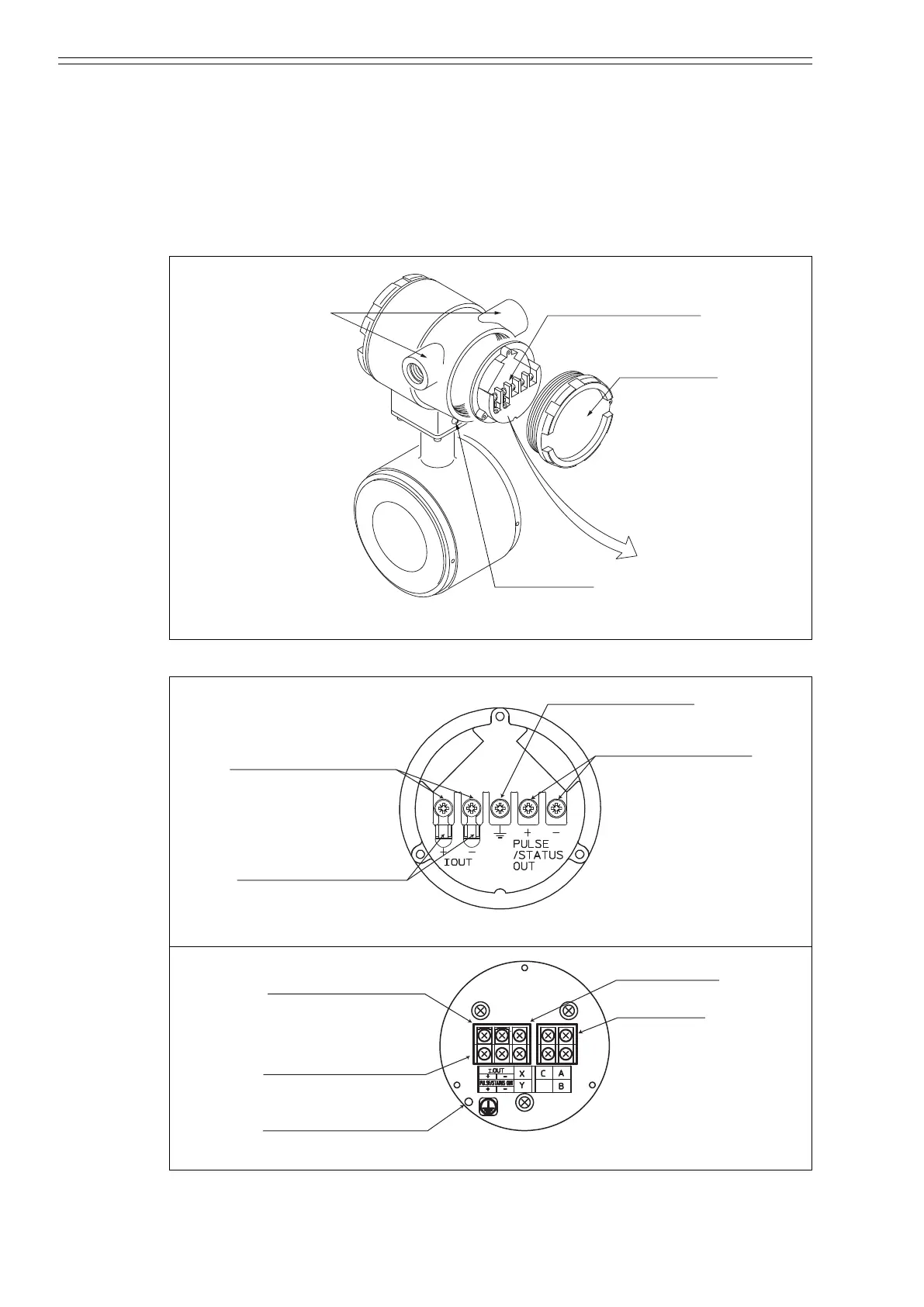

Figure 1-10 shows the structure and names of various parts of the terminal box.
Figure 1-11 Terminal box details
Figure 1-12-1 Terminal block (integral type)
Figure 1-12-2 Terminal block (remote type)
Terminal box cover

External grounding 
terminal
Conduit for 
an output 
signal line
Internal grounding terminal
T
erminal for
power supply / signal (4-20mA)
For communicator connection
Terminal for
pulse output / contact output
Internal grounding terminal
Terminal for
power supply / signal (4-20 mA)
Excitation terminal
Signal terminal
Internal grounding terminal
Terminal for
pulse output / contact output
