Azbil VDC User Manual

Instrument installation Azbil Corporation
2-8 Model MTG11A/18A, MTG11B/18B, MTG14C
Changing the direction of display/data setting device
Changing the display / data setting device direction
The display / data setting device can be repositioned to a horizontal or vertical
direction.

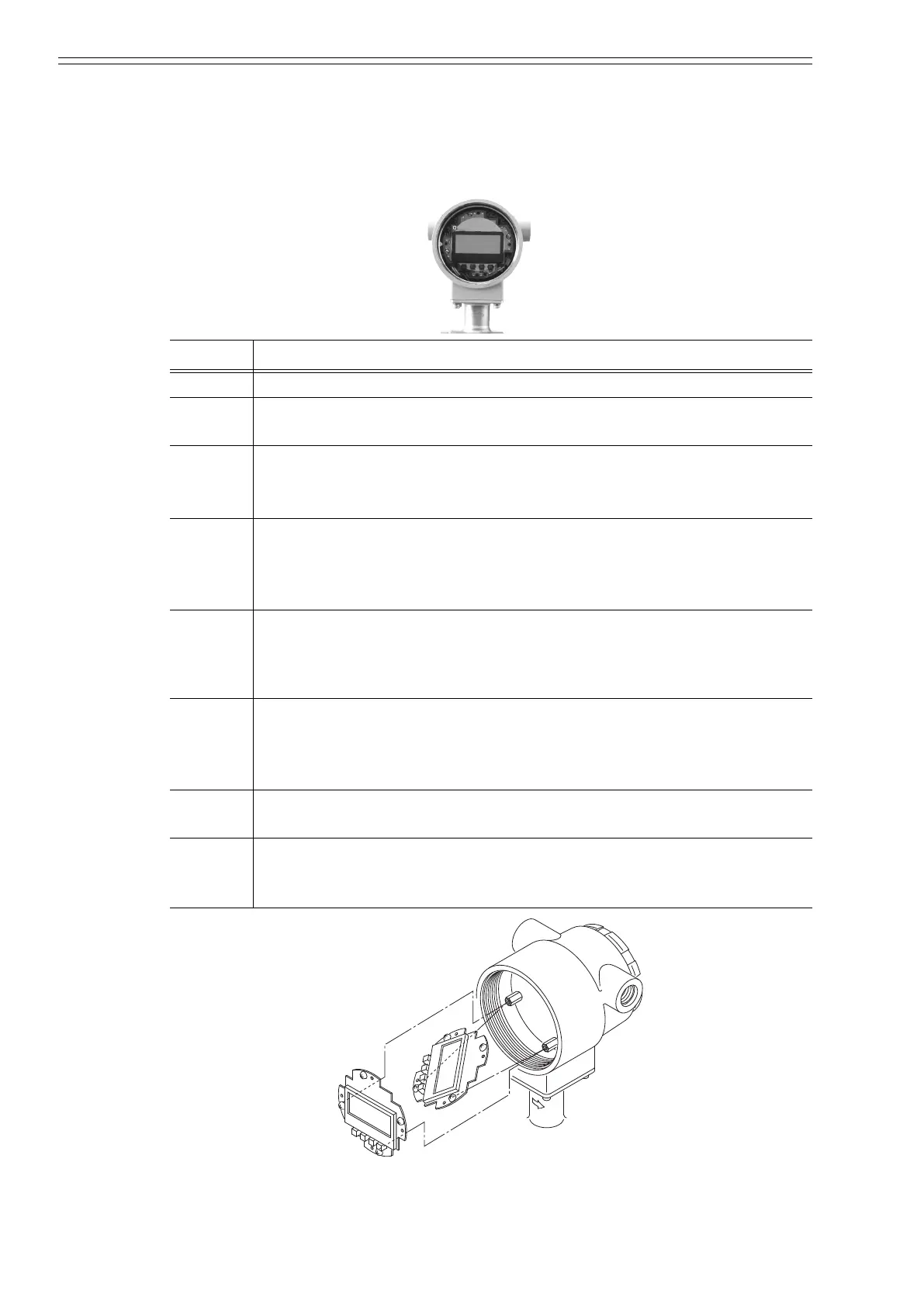

Figure 2-5 Changing the display / data setting device direction
Step Procedure
1 Turn off the power supply (with a breaker etc.) of the converter
2 The converter front cover is fixed by hexagon socket head setscrews
(M3). Loosen the setscrews with an Allen wrench (1.5).
3 Remove the converter front cover by turning it counterclockwise with
the dedicated tool.
~Note Remove the front cover straight towards you with care.
4 The display / data setting device is fixed by three screws. Remove these
screws.
~Note The screws are not captive to the display / data setting device,
so take care not to drop them.
5 Remove the display / data setting device.
~Note A cable is attached to the rear side of the display / data setting
device. This cable is connected to the connector on the
converter proper.
6 Turn the display / data setting device to the desired direction and align it
to the threaded holes in the converter proper.
~Note Sets the direction of the display/data setting unit in a movable
range in Figure 2-6.
7 Fix the display / data setting device again using the three screws. When
tightening the screws, take care not to entangle the cable.
8 Attach the front cover.
~Note Take care not to injure your fingers by the cover edge or the
thread in the case.
